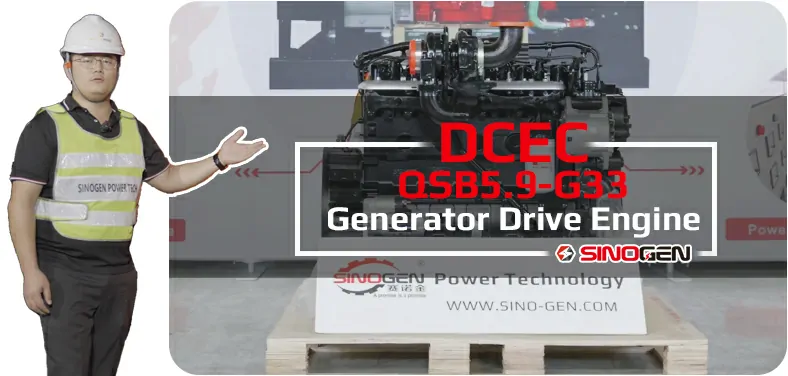

DCEC QSB5.9-G33 G-Drive Engine
DCEC QSB5.9-G33 generator drive engine is a 6-cylinders in line,5.9 liter four-strokes engine with 102mm bore and 120mm stroke.
Equipped with Electrically Control High-pressure Common Rail, comes with turbocharger and Air-Air intercooler.
The prime power for 50HZ generator set (1500RPM) of DCEC QSB5.9-G33 generator drive engine is 159kW.
As part of EMAC, SinoGen also provide complete power supply solutions that powered by DCEC, our ranges of products including open type generator set, silence type generator set, super silence type generator set, mobile trailer, complete power truck and complete power car for railways applications.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
Advantages of DCEC QSB5.9-G33 G-Drive Engine
Advanced design and sophisticated manufacturing to adapt to various harsh working conditions! High-strength parts, strong ability to work under heavy loads.
Cylinder block and cylinder head adopt integrated design. The occurrence of engine water leakage and oil leakage is prevented, and the parts are about 40% less than other similar engines. The failure rate is greatly reduced.
Using forged steel camshaft and crankshaft, high-strength cylinder block design, multiple parts cast on the cylinder block, high rigidity, high pressure resistance, good reliability, and longer service life.
The cylinder bore adopts a platform mesh honing design. The perfect geometric structure effectively prevents oil leakage, and the use of advanced technology such as new piston ring components and gasket crimping and molding reduces oil loss.
The five key systems of the electronically controlled engine are all developed by DCEC, and have been applied and verified in different fields around the world to ensure the excellent economy and reliability of the product.
By optimizing the control strategy and combining with the actual operating conditions of the equipment, the fuel economy can be further improved.
Technical Specifications
| Engine Model: | QSB5.9-G33 |
| Engine Type: | 6-Cylinder |
| Displacement: | 5.9 L |
| Rated Speed: | 1500 RPM |
| Rated Power: | 159 kW@ 1500RPM |
| Fuel System: | Electronically Controlled High Pressure Common Rail Injection System |
| Cooling System: | 53kw |
| Aspiration Method: | Turbocharged & Air-Air Intercooler |
| Emission Standard: | N/A |
| Bore*Storke: | 102 × 120 mm |
| Packing Size(L*W*H): | N/A |
| Wet Weight: | 406 kg |
| Lead Time: | 15-30 Working Days |
| Payment Terms: | T/T ,L/C |
Engine Model | Standby Power | Prime Power | Fuel System | Aspiration |
| QSB5.9-G2 | 106 kW @ 1500 RPM | 96 kW @ 1500 RPM | High Pressure Common Rail System | Turbocharged & Air-Air Intercooler |
| QSB5.9-G3 | 132 kW @ 1500 RPM | 120 kW @ 1500 RPM | High Pressure Common Rail System | Turbocharged & Air-Air Intercooler |
| QSB5.9-G30 | 128 kW@ 1500RPM | 116 kW@ 1500RPM | Electronically Controlled High Pressure Common Rail Injection System | Turbocharged & Air-Air Intercooler |
| QSB5.9-G31 | 145 kW@ 1500RPM | 132 kW@ 1500RPM | Electronically Controlled High Pressure Common Rail Injection System | Turbocharged & Air-Air Intercooler |
| QSB5.9-G33 | 175 kW@ 1500RPM | 159 kW@ 1500RPM | Electronically Controlled High Pressure Common Rail Injection System | Turbocharged & Air-Air Intercooler |
| ——END—— | ||||
| General Infomation of DCEC QSB5.9-G33 Generator Drive Engine | |||
| Engine Model | QSB5.9-G33 | Displacement | 5.9 L |
| Compression Ratio | 17.3:1 | Bore*Storke | 102 mm * 120 mm |
| No. of Cylinders | 6 | Governor Regulation | ≤3% |
| Aspiration | Turbocharged & Air-Air Intercooler | CPL Code Revision | 5872 |
| Installation Data of DCEC QSB5.9-G33 Generator Drive Engine | |||
| Dry Weight | N/A | Wet Weight | 406 kg |
| Center of Gravity from Front Face of Block | 401 mm | Center of Gravity above Crankshaft Centerline | 141 mm |
| Engine Idle Speed | 800 RPM | Fire Order | 1-5-3-6-2-4 |
| ——END—— | |||
Performance Data of DCEC QSB5.9-G33 Generator Drive Engine | |||||
| PRIME POWER | STANDBY POWER | PRIME POWER | STANDBY POWER | ||
| Engine Speed (RPM) | 1500 | 1500 | Exhaust Gas Flow (kg/min) | 13 | 12.24 |
| Output Power (kWm) | 175 | 159 | Air-Fuel Ratio | 20.64 | 21.54 |
| Torque (N.m) | 1114 | 1012 | Heat Loss Work – Environment (kW) | 28.38 | 25.78 |
| Mean Effective Pressure (kPa) | 1573 | 1429 | Heat Loss Work – Coolant (kW) | 53 | 44 |
| Piston Speed (m/s) | 8.15 | 8.15 | Heat Loss Work – Exhaust (kW) | 151.35 | 137.51 |
| Friction Loss Power (kW) | 8.4 | 8.4 | Heat Loss Work – Fuel Oil (kW) | 5 | 5 |
| Coolant Flow Rate (L/min) | 168 | 168 | Heat Loss Work – Intercooler (kW) | 47 | 38 |
| Fuel Oil Consumption (kg/h) | 36.1 | 32.6 | Rear Pressure Of Supercharger (kPa) | 204 | 187 |
| Air Intake Flow (m³/min) | 10.51 | 9.92 | Pressurized Air Flow Rate (kg/min) | 12.4 | 11.7 |
| Exhaust Gas Temp. (℃) | 543 | 539 | Post-Pressure Temp. Of Supercharger (℃) | 174 | 171 |
System Technical Data of DCEC QSB5.9-G33 Generator Drive Engine | ||
| Exhaust System | Maximum Back Pressure | 10 mmHg |
| Maximum Allowable Static Bending Moment At Exhaust Outlet Flange | 12 N.m | |
| Exhaust Pipe Size (Recommendatory) | 76 mm | |
| Air Intake System | Maximum Intake Air Restriction with Heavy Duty Air Cleaner— Clean Element | 3.7 kPa |
| Maximum Intake Air Restriction with Heavy Duty Air Cleaner— Dirty Element | 6.2 kPa | |
| Maximum Temp. Rise Between Engine Air Intake and Intake Manifold | 17 ℃ | |
| Minimum Inlet Pipe Diameter Is Recommended | 101.6 mm | |
| LubricationSystem | Idle Speed | 69 kPa |
| Maximum Oil Temperature | 124 ℃ | |
| Capacity with Oil Pan : High – Low | 14.2 L-12.3 L | |
| Minimum Required Lube System Capacity – Sump plus Filters | 16.4 L | |
| Cooling System | Coolant Capacity – Engine Only | 9 L |
| Minimum Recommended Coolant Temperature | 70 ℃ | |
| The Limit Environmental Temperature At Peak Torque | 104 ℃ | |
| Minimum Fill Rate ( Without Low Level Alarm) | 19 l/m | |
| Water Tank Capacity Without Water Expansion | 11% | |
| Maximum Degassing Time | 25 min | |
| Standard Thermostat (Modulating) Range | 82 ℃ – 95 ℃ | |
| Minimum Pressure Cap | 90 kPa | |
| Minimum Fill Rate | 6% | |
| Electrical System | System Voltage | 24 V |
| Minimum Battery Capacity-Cold Soak At -18 C (0 F) Or Above | ||
| Engine Only Reserve Capacity: | N/A | |
| Engine Only Cold Cranking Amperes: | 600 CCA | |
| Cool Start System | Minimum Ambient Temperature For Unaided Cold Start | ﹣12 ℃ |
| ——END—— | ||
Scopes of Supply of QSB5.9-G33 Generator Drive Engine | ||||
| Fuel System | 1. Fuel Transfer Pump | Exhuast System | 1. Exhuast Manifold | |
| 2. High-Pressure Fuel Pump | 2. Turbocharger | |||
| 3. Fuel Filter | 3. Exhuast Elbow | |||
| Air Intake System | 1. Air Intake Manifold | Starting System | 1. Starter Motor | |
| 2. N/A | 2. Starter Rely | |||
| Cooling System | 1. Water Pump | Power Output System | 1. Flywheel | |
| 2. Engine Fan | 2. Standard Flywheel Housing | |||
| 3. Standard Radiator | 3. N/A | |||
| Lubricating System | 1. Oil Pump | Charging System | 1. Charging Alternator | |
| 2. Oil Filter | 2. N/A | |||
| Engine Shut-Down System | 1. Engine Fuel Shut-Off Solenoidr | Engine Mounting System | 1. Engine Mouting Bracket | |
| Engine Auiliary Accessories | 1. Air Compressor | |||
| ——END—— | ||||
Optional Accessories of QSB5.9-G33 Generator Drive Engine | ||||
| Air Intake System | 1. Air Intake Pre-Heater | Exhuast System | 1. Muffler & Bellows | |
| 2. Air Intake Shut-Off Valve | 2. Flame Trap | |||
| 3. Air Filter | 3. Spark Arrestor Type Muffler & Bellows | |||
| 4. Air Intake Pre-Filter | 4. Dpf System | |||
| 5. Air Filter Alarm System | 5. N/A | |||
| Fuel System | 1. Coarse Filter | Lubricating System | 1. Oil Pre-Heater. | |
| 2. Fuel Pre-Heater | 2. N/A | |||
| Starting System | 1. Manual Magnetic Dc Contactor | Cooling System | 1. Silent Type Radiator | |
| 2. Dual Ears Flywheel Housing | 2. Plateau Radiator | |||
| 3. Spring Starter Motor | 3. Salt-Spray Resistant Radiator | |||
| 4. Air Starter Motor | 4. Coolant Pre-Heater | |||
| 5. Hydraulic Starter Motor | 5. Jacket Water Heater | |||
| 6. Manual Magnetic Dc Contactor | 6. N/A | |||
| Engine Auiliary Accessories | 1. Hydraulic Oil Pump | Control System | 1. Can Add Engine Monitoring System, Contro System With Wiring Harness. | |
| 2. Air Conditioner Compressor | 2. Can Add Self-Protection System that Integrated with Alarm System. | |||
| Power Output System | 1. Clutch | Engine Mounting System | 1. Shock Absorber Pad | |
| ——END—— | ||||
Committed to Providing Stable and Reliable Premiem Power System for Global Construction Machinery Manufacturer Partners, ConeMac is A Sub-Brand of the EMAC Group that Focuses on Construction Equipment Application. ConeMac’s Ranges of Products Mainly Inclduing Marine Construction Engines Power Pack, Construction Equipment Gearbox, Gear Reducer, Explosion-Proof Engines, Generator Set and Water Pump Set for Mining, Oil and Gas Field. For More Information of Our Industrial Power System Products, You Are Welcome to Visit ConeMac Homepage: www.Sino-Gen.com
Modifiable Components of QSB5.9-G33 Generator Drive Engine | ||||
| Air Intake System | 1. Installation Position of Air Filter | Charging System | 1. 12V Charging Alternator for 12v Electric System | |
| 2. Upgrade to Heavy-Duty Type Air Fitler | 2. Explosion-Proof Charging Alternator | |||
| 3. N/A | 3. Upgrading to Specified Brand and Speicifications of Charging Alternator | |||
| Exhuast System | 1. Water-Cooled Exhuast Manifold | Lubricating System | 1. Oil Pan Position | |
| 2. Water-Cooled Turbocharger | 2. Number of Dipstick | |||
| 3. Can Modify Installation Position and Direction of Turbocharger | 3. Position of Dipstick Can Choose from 6 Positions | |||
| 4. N/A | 4. Can Modify Oil Filter to be Remote Installation | |||
| Engine Shut-Down System | 1. 12V Solenoid for 12V Electric System | Starting System | 1. Upgrading to Specified Brand and Speicifications of Starter Motor | |
| 2. Explosion-Proof Solenoid | 2. 12V Starter Motor for 12V Electric System | |||
| Fuel System | 1. Upgrade to Fuel Fitler that Integrated with Fuel Transfer Pump and Fuel Pre-Hearter | Engine Auiliary Accessories | 1. All of auxiliary System can Choose Specified Brands and Specifications | |
| 2. N/A | 2. Additional Auxiliary Systems Can be Added for Special Applications | |||
| Cooling System | 1. Can Modify Engine fan Into Blower Fan or Suction Fan | Power Output System | 1. Can Modify Size of Flywheel Housing and Flywheel | |
| 2. Can Modify Central Position of Engine Cooling Fan | 2. Dual-Ear Flywheel Housing (For Twin-Starter System) | |||
| 3. Can Choose Type of Engine Fan From Mechanical Type or Electric Type | 3. Some of Models can Modify Flywheel Housing Into PTO Integrated Type | |||
| 4. N/A | 4. Engine Have Connecting Port of PTOs, That Able to Provide Power Output | |||
| Engine Mounting System | 1. Can Modify Engine Mouting Bracket | |||
| ——END—— | ||||
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
