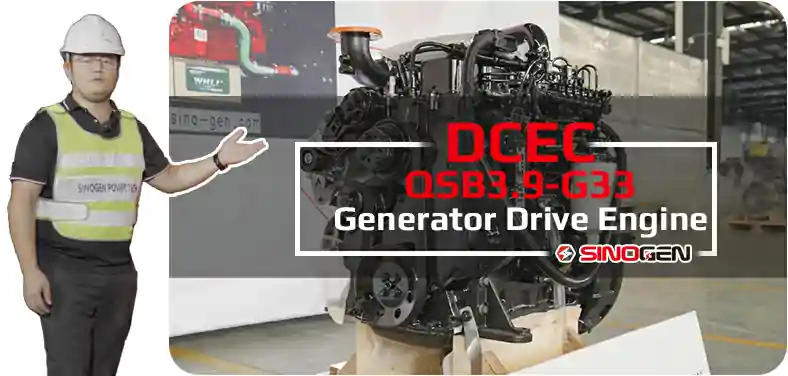

DCEC QSB3.9-G33 G-Drive Engine
DCEC QSB3.9-G33 generator drive engine is a 4-cylinders in line,3.9 liter four-strokes engine with 102mm bore and 120mm stroke.
Equipped with Electrically Control High-pressure Common Rail, comes with turbocharger and Air-Air intercooler.
The prime power for 50HZ generator set (1500RPM) of DCEC QSB3.9-G33 generator drive engine is 36kW.
As part of EMAC, SinoGen also provide complete power supply solutions that powered by DCEC, our ranges of products including open type generator set, silence type generator set, super silence type generator set, mobile trailer, complete power truck and complete power car for railways applications.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
Advantages of DCEC QSB3.9-G33 G-Drive Engine
Advanced design and high-quality manufacturing. Adapt to harsh working environment, high strength, reliable work under heavy load.
The integrated design of cylinder block and cylinder head prevents water and oil leakage from the engine. About 40% less than the same type of engine, the failure rate is greatly reduced.
Forged steel camshafts and crankshafts, high-strength cylinders, cast on multiple cylinders, high rigidity, high pressure resistance, good reliability, and long service life.
The platform hones the cross hatch cylinder hole, and the perfect geometric structure can effectively prevent oil leakage. Advanced technology such as new piston ring assembly and gasket crimp shield to reduce oil loss.
Cylinder block and cylinder head adopt integrated design, which eliminates the occurrence of engine water and oil leakage. The parts are about 40% less than other similar engines, and the failure rate is greatly reduced.
The three-stage fuel filter ensures a balanced level of particle dispersion, protects the main components of the fuel system, and maximizes the life of the engine.
Technical Specifications
| Engine Model: | QSB3.9-G33 |
| Engine Type: | 4 Cylinders |
| Displacement: | 3.9 L |
| Rated Speed: | 1500 RPM |
| Rated Power: | 36 kW @ 1500 RPM |
| Fuel System: | Common Rail |
| Cooling System: | 168 L/min |
| Aspiration Method: | Turbocharged & Air-Air Intercooler |
| Emission Standard: | N/A |
| Bore*Storke: | 102 mm * 120 mm |
| Packing Size(L*W*H): | N/A |
| Wet Weight: | 281 kg |
| Lead Time: | 15-30 Working Days |
| Payment Terms: | T/T ,L/C |
Engine Model | Standby Power | Prime Power | Fuel System | Aspiration |
| QSB3.9-G2 | 70 kW @ 1500 RPM | 63 kW @ 1500 RPM | High Pressure Common Rail System | Turbocharged & Air-Air Intercooler |
| QSB3.9-G3 | 88 kW @ 1500 RPM | 79 kW @ 1500 RPM | High Pressure Common Rail System | Turbocharged & Air-Air Intercooler |
| QSB3.9-G31 | 27 kW @ 1500 RPM | 33 kW @ 1500 RPM | High Pressure Common Rail System | Turbocharged & Air-Air Intercooler |
| QSB3.9-G33 | 40 kW @ 1500 RPM | 36 kW @ 1500 RPM | High Pressure Common Rail System | Turbocharged & Air-Air Intercooler |
| QSB3.9-G35 | 64 kW @ 1500 RPM | 58 kW @ 1500 RPM | High Pressure Common Rail System | Turbocharged & Air-Air Intercooler |
| QSB3.9-G37 | 92 kW @ 1500 RPM | 84 kW @ 1500 RPM | High Pressure Common Rail System | Turbocharged & Air-Air Intercooler |
| QSB3.9-G39 | 110 kW @ 1500 RPM | 100 kW @ 1500 RPM | High Pressure Common Rail System | Turbocharged & Air-Air Intercooler |
| ——END—— | ||||
General Infomation of DCEC QSB3.9-G33 Generator Engine | |||
| Engine Model | QSB3.9-G33 | Engine Configuration Number | D382075GX03 |
| Performance Curve | FR97888 | Performance Control Part | 5885 |
| Fuel System | Common Rail | Aspiration | Turbocharged |
| Cylinder Diameter/Stroke | 102/120 | No. Of Cylinders | 4 |
| Compression Ratio | 17.3:1 | Emissions | 3.9 L |
| Standby Power & Engine Speed | 54 HP (40 kW) at 1500 RPM | Continuous Power & Engine Speed | 33 HP (25 kW) at 1500 RPM |
| Normal Power & Engine Speed | 48 HP (36 kW) at 1500 RPM | Dry Weight | N/A |
| Wet Weight | 281 kg | Maximum Used Altitude | 4500 m |
| Engine Type | 4 Cylinder,4 Stroke | ||
| ——END—— | |||
| Performance Data of DCEC QSB3.9-G33 Generator Engine | |||||
| Prime Power | Standby | Prime Power | Standby | ||
| Governed Engine Speed | 1500 RPM | 1500 RPM | Gross Engine Power Output | 36 kWm | 40 kWm |
| torsional Moment | 229 N.m | 255 N.m | Effective Pressure | 324 kPa | 360 kPa |
| Piston Speed | 8.15 m/s | 8.15 m/s | Frictional Loss Power | 8.4 kW | 8.4 kW |
| Coolant Rate | 168 L/min | 168 L/min | Fuel Oil Consumption | 7.6 kg/h | 8.3 kg/h |
| Intake Air Flow | 4.07 m³/min | 4.07 m³/min | Exhaust Gas Temperature | 407 ℃ | 416 ℃ |
| Exhaust Gas Flow | 4.93 kg/min | 4.94 kg/min | Air-Fuel Ratio | 38.1 | 34.6 |
| Heat Loss Work – Environment | 5.84 kW | 6.49 kW | Heat Loss Work – Coolant | N/A | N/A |
| Heat Loss Work – Exhaust | 31.14 kW | 34.59 kW | Heat Loss Work – Fuel Oil | 5 | 5 |
| Heat Loss Work – Intercooler | N/A | N/A | Rear Pressure of Supercharger | 194 kPa | 195 kPa |
| Pressurized Air Flow Rate | 4.8 kg/min | 4.8 kg/min | Post-Pressure Temp. of Supercharger | 97 ℃ | 97 ℃ |
System Technical Data of DCEC QSB3.9-G33 Generator Engine | ||
| Exhaust System | Maximum Exhaust Resistance Allowed By The System | 10 kPa |
| The Maximum Static Bending Moment That The Exhaust Flange Can Bear | 130 N.m | |
| Recommended Minimum Inner Diameter Of Exhaust Pipe | 80 mm | |
| Induction System | Engine Intake Main Bore | 102 mm |
| Minimum Equivalent Inner Diameter Of Intercooling System | 80 mm | |
| Maximum Intake Temperature Rise Between The Environment And The Supercharger Intake Port | 17 ℃ | |
| Maximum Intake Temperature Rise Between The Ambient Temperature Of 25℃ And The Intake Manifold | 25 ℃ | |
| The Maximum Intercooled Rear Temperature That Will Not Degrade Engine Performance | 60 ℃ | |
| Intermediate Cooling After Temperature Alarm Temperature | N/A | |
| Intermediate Cooling After Temperature Alarm Temperature Maximum Intake Resistance Net Filter Element | 3.7 kPa | |
| After Cooling Temperature Alarm Temperature Maximum Intake Resistance Dirty Filter Element | 6.2 kPa | |
| Maximum Intercooled System Resistance | 13 kPa | |
| Lubrication System | Minimum Oil Pressure At Idle | 207 kPa |
| Normal Oil Pressure Range For Heat Engines | 230 kPa-345 kPa | |
| Full Lubrication System Volume | 10.9 L | |
| Maximum Velocity Of Lubrication System | 7.5 L/min | |
| Cooling System | Engine Coolant Volume (Engine Only) | 7.2 L |
| The Thermostat Adjusts The Standard Temperature | 82 ℃ | |
| Full Opening Temperature Of Thermostat | 92 ℃ | |
| Maximum Coolant Temperature (Engine Outlet) | 99 ℃ | |
| Minimum Coolant Temperature | 71 ℃ | |
| Coolant Alarm Temperature | 99 ℃ | |
| Maximum Allowable Cap Pressure | 75 kPa | |
| The Minimum Allowable Cap Pressure | 48 kPa | |
| Maximum Resistance Of External Cooling System | 28 kPa | |
| Maximum Degassing Time | 25 min | |
| Maximum Degassing Time Minimum Water Adding Rate | 12 L/min | |
| Maximum Coolant Expansion Volume (Percentage Of Cooling System Capacity) | 12% | |
| Minimum Coolant Expansion Volume (Percentage Of Cooling System Capacity) | 6% | |
| Fuel System | Maximum Fuel Supply Resistance (Clean Filter, Oem End) | 13.6 kPa |
| Maximum Fuel Return Resistance | 67.7 kPa | |
| Minimum Tank Discharge Capacity | 0.1 L/s | |
| Maximum Fuel Temperature (At Inlet Of Oil Pump) | 70 ℃ | |
| Maximum Fuel Heat Dissipation | N/A | |
| Maximum Fuel Design Flow Rate | 40 kg/h | |
| Electric System | System Voltage | 24 V |
| Cold Start Current | 750 CCA | |
| The Battery Capacity | 130 min | |
| Cold Starting System | Minimum Cold Starting Temperature Without Auxiliary Starting Device | -10℃ |
| Minimum Cold Starting Temperature With Intake Preheating (Engine Without Load) | -35℃ | |
| ——END—— | ||
Scopes of Supply of DCEC QSB3.9-G33 Generator Drive Engine | |||
| Air Intake System | 1. Air Intake Manifold | Exhuast System | 1. Exhuast Manifold |
| 2. Standard Air Filter | 2. Turbocharger | ||
| 3. Water-Air Intercooler | 3. Exhuast Elbow | ||
| Starting System | 1. Starter Motor | Charging System | 1. Charging Alternator |
| 2. Starter Rely | 2. N/A | ||
| Lubricating System | 1. Oil Pump | Cooling System | 1. Water Pump |
| 2. Oil Filter | 2. Engine Fan | ||
| 3. N/A | 3. Standard Radiator | ||
| Engine Shut-Down System | 1. Engine Fuel Shut-Off Solenoid | Power Output System | 1. Flywheel |
| 2. N/A | 2. Standard Flywheel Housing | ||
| Fuel System | 1. Fuel Transfer Pump | ||
| 2. High-Pressure Fuel Pump | |||
| 3. Fuel Filter | |||
| ——END—— | |||
Optional Accessories of DCEC QSB3.9-G33 Generator Drive Engine | |||
| Air Intake System | 1. Air Intake Pre-Heater | Exhuast System | 1. Muffler & Bellows |
| 2. Air Intake Shut-Off Valve | 2. Spark Arrestor Type Muffler & Bellows | ||
| 3. Heavy-Duty Air Filter | 3. DPF System | ||
| 4. Plateau Type Air Filter | 4. N/A | ||
| Fuel System | 1. Coarse Filter | Lubricating System | 1. Oil Pre-Heater |
| 2. Fuel Pre-Heater | 2. N/A | ||
| Starting System | 1. Manual Magnetic DC Contactor | Cooling System | 1. Silent Type Radiator |
| 2. Dual Ears Flywheel Housing | 2. Plateau Radiator | ||
| 3. Spring Starter Motor | 3. Salt-Spray Resistant Radiator | ||
| 4. Air Starter Motor | 4. Coolant Pre-Heater | ||
| 5. Hydraulic Starter Motor | 5. Jacket Water Heater | ||
| 6. Manual Magnetic DC Contactor | 6. N/A | ||
| ——END—— | |||
Modifiable components of DCEC QSB3.9-G33 Generator Drive Engine | |||
| Air Intake System | 1. Installation Position of Air Filter | Charging System | 1. 12V Charging Alternator for 12V Electric System |
| 2. Upgrade to Heavy-Duty Type Air Fitler | 2. Explosion-Proof Charging Alternator | ||
| Exhuast System | 1. Position of Turbocharger | Lubricating System | 1. Oil Pan Position |
| 2. Water-Cooled Exhuast Manifold | 2. Number of Dipstick | ||
| 3. Water-Cooled Turbocharger | 3. Position of Dipstick | ||
| Fuel System | 1. Upgrade to Fuel Fitler that Integrated with Fuel Transfer Pump | Starting System | 1. 12V Starter Motor for 12V Electric System |
| Engine Shut-Down System | 1. 12V Solenoid for 12V Electric System | Power Output System | 1. Size of Flywheel Housing and Flywheel. |
| 2. Explosion-Proof Solenoid | 2. Dual-Ear Flywheel Housing (For Twin-Starter System) | ||
| ——END—— | |||
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
