DCEC QSB3.9-C125-30 Industrial Engine

DCEC QSB3.9-C125-30 Industrial engine is a 4-cylinders in line, 3.9 liter four-strokes engine with 102 mm bore and 120mm stroke. Equipped with Electrically Control High-pressure Common Rail, engine comes with turbocharger and Air- Air Intercooler.
The prime power at 2200RPM of DCEC QSB3.9-C125-30 Industrial engine is 125HP.
As part of EMAC, ConeMac provides industrial power pack solution that integrated with air intake, air exhaust, cooling system, control system, transmission and hydraulic accessories, We also supplying special products such as explosion proof engine, generator and water pump set, as well as ultra-low temperature condition engine power pack.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.

Advantages of DCEC QSB3.9-C125-30 Industrial Engine

Advanced design and sophisticated manufacturing, adapt to a variety of harsh working conditions, high strength, strong ability to work under heavy loads.
Cylinder block and cylinder head adopt integrated design, which eliminates the occurrence of engine water leakage and oil leakage. Parts are about 40% less than other similar engines, and the failure rate is greatly reduced.
Using forged steel camshaft and crankshaft, high-strength cylinder block design, multiple parts are cast on the cylinder block, with high rigidity, high pressure resistance, good reliability and longer service life.
The cylinder bore adopts a platform mesh honing design, and the perfect geometric structure effectively prevents oil leakage, and adopts advanced technology such as new piston ring components and gasket crimping molding to reduce oil loss.
Adopt Holset supercharger with integral wastegate valve, low speed response and strong power.

Technical Specifications

Engine Model:	QSB3.9-C125-30
Engine Type:	4 Cylinders
Displacement:	3.9 L
Rated Speed:	2200 RPM
Rated Power:	93 kW @ 2200 RPM
Peak Torque:	480 N.m @1350 RPM
Fuel System:	HPCR
Aspiration Method:	Turbocharged & Air-Air Intercooler
Emission Standard:	Euro Stage III
*BoreStorke:**	107 mm * 124 mm
*Packing Size(LWH):*	N/A
Wet Weight:	N / A
Lead Time:	15-30 Working Days
Payment Terms:	T/T ,L/C

Coming Soon

Engine Model	Rated Power	Peak Torque	Fuel System	Aspiration
QSB3.9-C110-30	81 kW @ 2200 RPM	480 N.m @1600 RPM	HPCR	Turbocharged & Air-Air Intercooler
QSB3.9-C125-30	93 kW @ 2200 RPM	480 N.m @1350 RPM	HPCR	Turbocharged & Air-Air Intercooler
QSB3.9-C130-31	96 kW @ 2500 RPM	520 N.m @1600 RPM	HPCR	Turbocharged & Air-Air Intercooler
——END——

General Infomation of DCEC QSB3.9-C125-30 Industrial Engine
Engine Model	QSB3.9-C125-30	*BoreStorke**	107*124mm
Curve&Datasheet	FR95419	Displacement	3.9 L
Emission Standard	Euro Stage III	Rated Power	93 kW @ 2200 RPM
No. Of Cylinders	4 Cylinders	Peak Torque	480 N.m @1350 RPM
Fuel System	HPCR	Configuration	D383070CX03
Aspiration	Turbocharged & Air-Air Intercooler	*Packing Size(LWH)*	N / A

Performance Data of DCEC QSB3.9-C125-30 Industrial Engine
Minimum Idle Speed		800±50 RPM
Maximum No-Load Speed		2386±20 RPM
Maximum Overspeed Performance (Not Exceeding 15 Seconds)		3300 RPM
0% Throttle Loading Capability		320 N.m
Maximum Altitude Allowed For Continuous Operation		4500 m
Cold Starting Capacity
Minimum Cold Starting Temperature Without Auxiliary Starting Device:		﹣12 °C
Minimum Cold Starting Temperature For Auxiliary Starting Device:		﹣35 °C
——END——

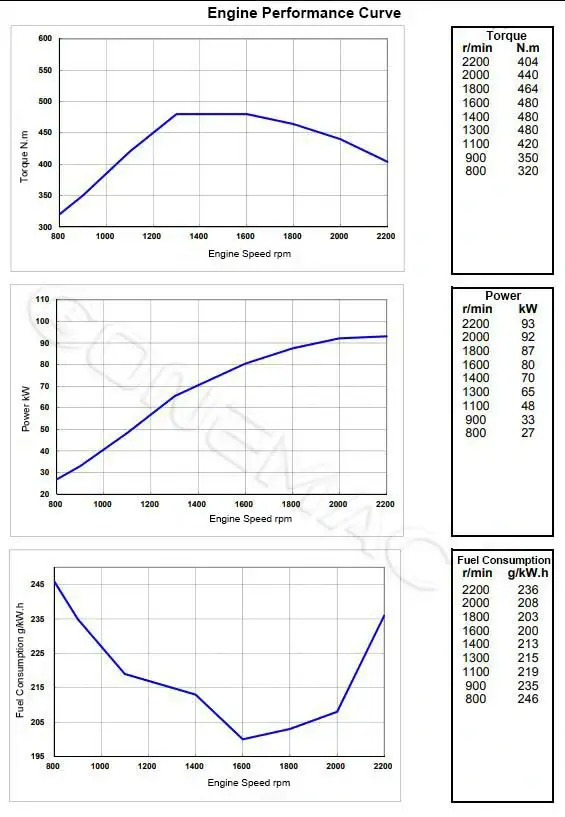

Engine Performance Data Rated Power of DCEC QSB3.9-C125-30 Industrial Engine
	Rated Power	Torque Peak	Low speed		Rated Power	Torque Peak	Low speed
Engine Speed	2200 RPM	1600 RPM	800 RPM	Heat loss to coolant	41.2 kW	28 kW	15.6 kW
Gross Power Output	92 kW	68 kW	27 kW	Heat Rejection to Coolant	197 l / min	105 l / min	63 l / min
Torque	400 N.m	480 N.m	320 N.m	Heat loss to intercooler	15 kW	9.5 kW	1.2 kW
The air flow	132 l / s	70 l / s	23 l / s	Turbo Comp. Outlet Pressure	170 kPa	113 kPa	18.2 kPa
Charge Air Flow	10.2 kg	5.4 kg	1.78 kg	Turbo Comp. Outlet Temp.	148 ℃	127 ℃	60 ℃
Exhaust Gas Flow	10.55 kg	5.64 kg	1.89 kg	The fuel flow	21.2 kg / hr	14.4 kg / hr	6.4 kg / hr
Exhaust Gas Temp.	587 ℃	630 ℃	544 ℃
——END——

Scopes of Supply of DCEC QSB3.9-C125-30 Industrial Drive Engine
Cooling System	1. Water Pump	Exhuast System	1. Exhuast Manifold
	2. Engine Fan		2. Turbocharger
	3. Standard Radiator		3. Exhuast Elbow

Starting System	1. Starter Motor	Fuel System	1. Common Rail Fuel System
Starting System	2. Starter Rely	Fuel System	2. Fuel Filter


Lubricating System	1. Oil Pump	Power Output System	1. Flywheel
Lubricating System	2. Oil Filter	Power Output System	2. Standard Flywheel Housing

Air Intake System	1. Air Intake Manifold	Charging System	1. Charging Alternator

Engine Mounting System	1. Engine Mouting Bracket	Engine Auiliary Accessories	1. Air Compressor

Control System	1. Ecu & Sensors
——END——

Optional Accessories of DCEC QSB3.9-C125-30 Industrial Drive Engine
Air Intake System	1. Air Intake Pre-heater	Exhuast System	1. Muffler & Bellows
	2. Air intake Shut-off valve		2. Flame trap
	3. Air Filter		3. Spark Arrestor type Muffler & Bellows
	4. Air intake Pre-filter		4. DPF System
	5. Air Filter alarm System		5. N / A

Engine Auiliary Accessories	1. Hydraulic oil Pump	Control System	1. Can add engine monitoring system, contro system with wiring harness
Engine Auiliary Accessories	2. Air Conditioner Compressor	Control System	2. Can add self-protection system that integrated with alarm system

Starting System	1. Manual Magnetic DC Contactor	Cooling System	1. Silent Type Radiator
	2. Dual Ears Flywheel Housing		2. Plateau Radiator
	3. Spring Starter Motor		3. Salt-Spray Resistant Radiator
	4. Air Starter Motor		4. Coolant Pre-heater
	5. Hydraulic Starter Motor		5. Jacket Water heater
	6. Remote starting Function		6. N/A
	7. Lock Protection Function of Starter Motor		7. N/A
	8. Manual Magnetic DC Contactor

Fuel System	1. Coarse Filter	Lubricating System	1. Oil pre-heater

Power Output System	1. Clutch	Engine Mounting System	1. Shock Absorber pad
——END——

Committed to Providing Stable and Reliable Premiem Power System for Global Construction Machinery Manufacturer Partners, ConeMac is A Sub-Brand of the EMAC Group that Focuses on Construction Equipment Application.ConeMac’s Ranges of Products Mainly Inclduing Marine Construction Engines Power Pack, Construction Equipment Gearbox, Gear Reducer, Explosion-Proof Engines, Generator Set and Water Pump Set for Mining, Oil and Gas Field.For More Information of Our Industrial Power System Products, You Are Welcome to Visit ConeMac Homepage: Conemac.cn

Modifiable components of DCEC QSB3.9-C125-30 Industrial Drive Engine
Exhuast System		Charging System	1. 12V Charging Alternator For 12V Electric System
	1. Can Modify Installation Position And Direction Of Turbocharger		2. Explosion-Proof Charging Alternator
	3. Water-Cooled Turbocharger		3. Upgrading To Specified Brand And Speicifications Of Charging Alternator

Power Output System	1. Can Modify Size Of Flywheel Housing And Flywheel.	Lubricating System	1. Oil Pan Position
	2. Dual-Ear Flywheel Housing (For Twin-Starter System)		2. Number Of Dipstick
	3. Some Of Models Can Modify Flywheel Housing Into Pto Integrated Type.		3. Position Of Dipstick Can Choose From 6 Positions
	4. Engine Have Connecting Port Of Ptos, That Able To Provide Power Output		4. Can Modify Oil Filter To Be Remote Installation

Cooling System	1. Can Modify Engine Fan Into Blower Fan Or Suction Fan	Engine Auiliary Accessories	1. All Of Auxiliary System Can Choose Specified Brands And Specifications.
	2. Can Modify Central Position Of Engine Cooling Fan		2. Additional Auxiliary Systems Can Be Added For Special Applications.
	3. Can Choose Type Of Engine Fan From Mechanical Type Or Electric Type		3. N/A

Fuel System	1. Upgrade To Fuel Fitler That Integrated With Fuel Transfer Pump And Fuel Pre-Hearter	Engine Mounting System	1. Can Modify Engine Mouting Bracket.

Control System	1. Ecu Can Setting To Different Control Mode, Including Can Communication, Analogue Control, Isc1,Isc2,Isc3 Speed Conrol Mode Etc.
