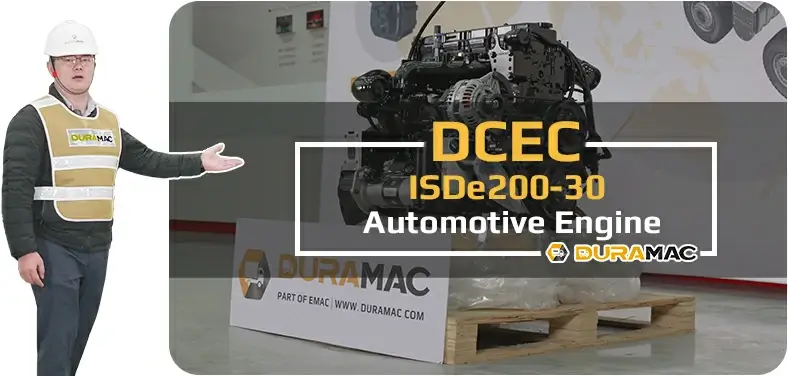

ISDe200-30 Automotive Engine

DCEC ISDe200-30 automotive engine is a 4-cylinders in line, 4.5 liter four-strokes engine with 107 mm bore and 124 mm stroke, equipped with Electrically Control High-pressure Common Rail, DCEC ISDe200-30 automotive engine comes with turbocharger and Air- Air intercooler, with a EURO III post-processor.

The prime power at 2700 RPM of DCEC ISDe200-30 automotive engine is 200 HP.

As part of EMAC, DuraMac provides complete powertrain that integrated with DCEC engine, Fast-Eaton clutch, FAST-CAT transmission, Dongfeng-DANA axle and Komman air suspension, while the electrification of automobile is the certain future, Duramac also get involved with EV powertrain system.

We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.

Advantages of DCEC ISDe200-30 Automotive Engine

  • Advanced electronic control integrated system share information among high-speed datalinks, to ensure that the engine maintains the best operating status, effective fuel savings and low emissions under various loads.

  • With higher injection pressure up to 1600 bar, High Pressure Common Rail Fuel System features more precise control of injection timing and amount of fuel, more complete combustion, broader economical fuel consumption zone tremendously enhanced fuel economy, thus further improving low-speed performance, and resulting in better noise reduction and cold start performance.

  • Fast startup, good acceleration and gradeability, superior torque output at low speed.

  • Highly integrated engine subsystems can realize excellent power, ultra long service life, and long maintenance intervals.

  • Advanced electronic control integrated system, large-capacity electronic control module, collect information from all drive train components such as electronic gearbox, ABS brake and ASR anti-skid through standard data bus, forming a seamless information flow…

Technical Specifications

Engine Model:ISDe200-30
Engine Type:4
Displacement:4.5 L
Rated Speed:2700 RPM
Rated Power / Speed:200 HP @ 2700 RPM
Peak Torque:550 N.m @ 1100 – 1700 RPM
Fuel System:Bosch HPCR
Aspiration Method:Turbocharged & Air-Air Intercooler
Emission Standard:EU Stage III
Bore * Stroke:107 mm * 124 mm
Packing Size(L * W * H):N/A
Wet Weight:392 kg
Lead Time:15 – 30 Working Days
Payment Terms:T/T ,L/C

coming soon

coming soon

Engine Model

Advertised Power

Peak Torque

Number Of Cylinders

Fuel System

ISDe140 30138 HP @ 2500 RPM450 N.m @ 1400 RPM4 CylinderBosch HPCR
ISDe140-30B140 HP @ 2500 RPM450 N.m @ 800 ~ 1700 RPM4 CylinderBosch HPCR
ISDe140 41138 HP @ 2300 RPM550 N.m @ 1100 ~ 1600 RPM4 CylinderBosch HPCR
ISD140 51138 HP @ 2300 RPM550 N.m @ 1100 ~ 1600 RPM4 CylinderBosch HPCR
ISDe160 30158 HP @ 2500 RPM600 N.m @ 1400 RPM4 CylinderBosch HPCR
ISDe160-30A160 HP @ 2700 RPM600 N.m @ 1200 ~ 1700 RPM4 CylinderBosch HPCR
ISDe160-30B160 HP @ 2700 RPM500 N.m @ 1100 ~ 1600 RPM4 CylinderBosch HPCR
ISDe160 30-II158 HP @ 2700 RPM500 N.m @ 1400 RPM4 CylinderBosch HPCR
ISDe160 31158 HP @ 2500 RPM600 N.m @ 1200 RPM4 CylinderBosch HPCR
ISDe160 41158 HP @ 2300 RPM600 N.m @ 1100 ~ 1600 RPM4 CylinderBosch HPCR
ISD160 51158 HP @ 2300 RPM600 N.m @ 1100 ~ 1600 RPM4 CylinderBosch HPCR
ISDe180 30158 HP @ 2500 RPM650 N.m @ 1400 RPM4 CylinderBosch HPCR
ISDe180-30185 HP @ 2700 RPM650 N.m @ 1200 ~ 1700 RPM4 CylinderBosch HPCR
ISDe180 30-II182 HP @ 2500 RPM650 N.m @ 1400 RPM4 CylinderBosch HPCR
ISDe180 40177 HP @ 2500 RPM700 N.m @ 1500 RPM4 CylinderBosch HPCR
ISDe185-30A182 HP @ 2500 RPM700 N.m @ 1400 RPM4 CylinderBosch HPCR
ISDe185-30B185 HP @ 2500 RPM550 N.m @ 1400 RPM4 CylinderBosch HPCR
ISDe185-31185 HP @ 2500 RPM550 N.m @ 1400 RPM4 CylinderBosch HPCR
ISDe185 41185 HP @ 2300 RPM700 N.m @ 1200 ~1600 RPM4 CylinderBosch HPCR
ISD185 51185 HP @ 2300 RPM700 N.m @ 1100 ~ 1600 RPM4 CylinderBosch HPCR
D4.5NS6B190188 HP @ 2300 RPM700 N.m @ 1200 RPM4 CylinderBosch HPCR
ISDe200-30200 HP @ 2300 RPM550 N.m @ 1100 ~ 1700 RPM4 CylinderBosch HPCR
D4.5NS6B210206 HP @ 2300 RPM760 N.m @ 1300 RPM4 CylinderBosch HPCR
D4.5NS6B220217 HP @ 2300 RPM820 N.m @ 1400 RPM4 CylinderBosch HPCR
——END——

General Infomation of DCEC ISDe200-30 Automotive Engine

Engine ModelISDe200-30Advertised Power200 HP @ 2700 RPM
Peak Torque550 N.m @ 1100 – 1700 RPMCurve&DatasheetFR92153
Fuel SystemBosch HPCRNo. Of Cylinders4
AspirationTurbocharged & Air-Air IntercoolerDisplacement4.5 L
Bore * Stroke107 mm * 124 mmCPL Code Revision1981
Dry Weight 377 kgWet Weight 392 kg
Compression Ratio17.3 : 1

Installation Data of DCEC ISDe200-30 Automotive Engine

Center of Gravity. Distance From Front Face of Block271 mm
Center of Gravity. Distance Above Crank Centerline(Above Crankshaft)158 mm
Maximum Bending Moment At Rear Face of Block1356 N.m
Maximum Crankshaft Thrust Bearing load limit- Intermittent load3425 N
Maximum Crankshaft Thrust Bearing load limit-Continuous load1779 N
Instantaneous Inertia At Rotating: (Without Flywheel) N/A
Emissions CertificationGB 176912005
Idle Speed600 – 800 RPM
Maximum Non-Load Speed3050 RPM
Over Speed Performance (Within 15 Seconds)4200 RPM
The Clutch Torque @ 800Rpm450 N.m
Maximum Altitude At Which Continuous operation Is Allowed3000 m
Supercharger outlet Exhaust Pressure limit Value 413 kPa
Maximum Power of Exhaust BrakeN/A
——END——

Engine Performance Data Rated power of DCEC ISDe200-30 Automotive Drive Engine

Engine Speed2700 RPM2500 RPM1400 RPMOil Pressure400 kPa400 kPa302 kPa
Air to Turbo10.37 m³/min10.02 m³/min4.71 m³/minAir From Turbo162 kPa165 kPa136 kPa
Exhaust Flow 10.80 m³/min10.42 m³/min4.92 m³/minExhaust TempN/AN/AN/A
Fuel ConsumptionN/AN/AN/ACoolant FlowN/AN/AN/A
Heat Rejection-CoolantN/AN/AN/AHeat Rejection-AirN/AN/AN/A
Friction PowerN/AN/AN/A
——END——

System Technical Data of DCEC ISDe200-30 Automotive Drive Engine

Air Intake SystemMaximum Temperature Rise Between Ambient Air and Engine Air Inlet15
Maximum Intake Restriction with Dry Type Air Cleaner,with Clean Filter-Medium Duty2.9 kPa
Maximum Intake Restriction with Dry Type Air Cleaner,with Clean Filter-Heavy Duty3.7 kPa
Maximum Intake Restriction with Dirty Filter6.2 kPa
Turbocharged & IntercooledMaximum Intake Air Temperature Rise Between Ambient and Intake Manifold30
Maximum Pressure Differential Between Supercharger Compressor Outlet and Intake Manifold Inlet13.5 kPa
Usually Suitable Intake Pipe Diameter65 mm
Exhaust SystemMaximum Exhaust Resistance with Exhaust Pipe and Muffler10 kPa
Usually Suitable Exhaust Pipe Diameter75 mm
Lubrication SystemOil Sump Capacity-Upper Limit11 L
Oil Sump Capacity-Lower Limit8.9 L
Capacity of The Whole System13 L
Cooling SystemCoolant Capacity – Engine only7 L
Standard Thermostat (Modulating) Range83 – 95
Maximum Coolant Pressure (without Pressure Cap, Thermostat Closed)200 kPa
Maximum Coolant Temperature Engine out100
Maximum Degassing Time25 mins
Maximum Coolant Flow to Accessories37 L/min
Minimum Recommended Coolant Temperature70
Minimum Water Addition Rate19 L/min
Minimum Coolant Expansion Space – % of System Capacity6 %
Minimum Drop Tank Volume without Expansion Tank (% of total Cooling System)11 %
Minimum Allows Pressure of Pressure Cap50 kPa
Coolant Alarm Temperature104
Common Operating Temperature Range of Fans with Fan Clutch93
24V Electrical SystemMaximum Allowable Resistance of Cranking Circuit0.004 Ω
The Cold Start Current When Engine and The Clutch Separate550 CCA
Cold Starting SystemMaximum Unaided Cold Start Temperature120 RPM -12 ℃
Minimum Cold Start Temperature with Auxiliary Starter120 RPM -35 ℃
Fuel SystemMaximum Oil Inlet Resistance of The Oil Transfer Pump with A Clean Filter30 kPa
Maximum Fuel Return Resistance20 kPa
Minimum Oil Discharge Capacity of Fuel Tank0.2 m³/hr
Maximum Fuel Temperature (At The Fuel Pump Inlet)70
——END——

Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.

What's the Standard Scopes of Supply?

With full ranges of emission standard from Euro 2 to Euro 7, Dongfeng Cummins producing 12 series automotive engines, started from 3.9 liter engine, to 15 liter engine, covering the power range of 125HP to 650HP.
Dongfeng Cummins automotive engine customize developing configurations for big vehicle OEMs in China, based on each of requirement, Dongfeng Cummins producing dozens of different configuration engines with same engine model number, which only SO-Shop Order will be different with each other, the SO number is the identify number of the engine configuration of each model.
Even with same engine model, different SO number engine can have very different configuration with each other, with different prices. Some of SO-Shop Order is not available for commercial market, such as restricted models (Usually for military specifications).
EMAC offering most common, cost effective models which also able to process the production in Dongfeng Cummins, which usually have following accessories as standard configuration.

Scopes of Supply of DCEC Automotive Engine

Air Intake System1. Air Intake Manifold Exhuast System1. Exhuast Manifold
2. Water-Air Intercooler2. Turbocharger
3. N/A3. Exhuast Elbow

Fuel System1. Fuel Transfer Pump Starting System1. Starter Motor
2. High-Pressure Fuel Pump2. Starter Rely
3. Fuel Filter3. N/A

Charging System1. Charging Alternator Engine Shut-Down System1. Engine Puel Shut-Off Solenoid

Lubricating System1. Oil Pump Cooling System1. Water Pump
2. Oil Filter2. Engine Fan
3. N/A3. Standard Radiator

Power Output System1. Flywheel Engine Mounting System1. Engine Mouting Bracket
2. Standard Fflywheel Housing 2. N/A

Engine Auiliary Accessories1. Air Compressor
2. Power Steering Pump
------END------

What's the Available Optional Items?

Dongfeng Cummins only provides customize service for the large quantity orders or large OEMs, which means usually the order quantity are higher than 1000 units. For the small quantity engine project, EMAC provides customize services with our own resource and engineer team.
EMAC have rich experience on the customize developing, which provides abundant optional items based on the requirement of each project. The typical optional items are special Prestolite charging alternator, prestolite starter motor, Knorr Air compressor. Valeo air conditioning compressor, ECU output socket set, engine accelerate pedal etc.

Optional Accessories of DCEC Automotive Engine

Air Intake System1. Air Intake Pre-Heater Exhuast System1. Muffler & Bellows
2. Air Intake Shut-Off Valve2. Flame Trap
3. Air Filter3. Spark Arrestor Type Muffler & Bellows
4. Air Intake Pre-Filter 4. DPF System
5. Air Filter Alarm System 5. N/A

Fuel System1. Coarse Filter Starting System1.Manual Magnetic DC Contactor
2. Fuel Pre-Heater2. Dual Ears Flywheel Housing
3. N/A3. Spring Starter Motor
4. N/A4. Air Starter Motor
5. N/A5. Hydraulic Starter Motor

Lubricating System1. Oil Pre-Heater. Cooling System1. Silent Type Radiator
2. N/A2. Plateau Radiator
3. N/A3. Salt-Spray Resistant Radiator
4. N/A4. Coolant Pre-Heater

Power Output System1. Clutch Engine Mounting System1. Shock Absorber Pad

Engine Auiliary Accessories1. Hydraulic Oil Pump Control System1. Can Add Mechanical Accelerator Pedal
2. Air Conditioner Compressor 2. N/A
3. N/A 3. N/A

------END------

As part of EMAC, DuraMac is Committed to providing reliable powertrain system to commercial vehicle manufacturers around the world, a sub-brand of EMAC group that focusing on automotive application. Based on dozens of world-class engine manufacturing resources in China, and as official exporting agent of Fast tranmission (Joint venture with Caterpillar AT tranmission), Dongfeng Dana axle and Komman air suspension, DuraMac provides one-stop solutions covers from pre-design to components supply, from installation to commissioning, from pre-sales communication to after-sales service support.
For more information of our automotive power system products, you are welcome to visit DuraMac homepage: www.duramac.com

What's the Modifiable Items and Scopes?

As explained in the standard scopes of supply, Dongfeng Cummins not able to provide customize developing for small quantity projects or small OEMs, so EMAC helps SME OEMs to provide customize services, not only providing additional optional items, but also provides customize modification services to meet their requirements based on the exisiting engine SO number.
As flexible service ability is our core advantages, EMAC is very experienced and good at providing customize services, the common customize services are as below:
1: AIr Intake System: Change the air intake direction.
2: Air Exhuast System: We are able to change the turbocharger direction as the interaction on installation could be occured, also change change the air exhuast direction.
3: Lubricating System: Modify lubricating system is one of the most common requirement from customer, we can provide flat-type engine oil pan, to lower down total engine height, which usually required for special vehicles. For the standard engine oil pan, we also can change the direction of the engine oil pan.
4: Cooling System: There are lots of options for the engine cooling system, for the engine fan, we can provide customize for the material of engine fan (plastic fan or steel fan), wind direction of the engine fan (blower fan or suction fan ) and types of engine fan (mechanical fan or electric control fan).
3: Lubricating System: Modify lubricating system is one of the most common requirement from customer, we can provide flat-type engine oil pan, to lower down total engine height, which usually required for special vehicles. For the standard engine oil pan, we also can change the direction of the engine oil pan.
6: Electric System: All of Dongfeng Cummins engines are comes with standard 24V electric system, while some customer need to modify the electric system into 12V, we can also modify the starter motor and alternator into appointed brand or appointed specifications.
EMAC is your reliable professional power system partner, feel free to contact our services team to get detailed information about our standard scopes of supply, optional items and modifiable parts for our Dongfeng Cummins automotive engine, we are ready to explore the journey of our cooperation.

How to Order Engine to Replace Your Old Engine?

There are three types of engine replacements demand, type A is to replace the old Dongfeng Cummins engine, the original engine is produced by Dongfeng Cummins, type B is to replace Cummins engine produced in other countries including UK, USA, Mexico, India or Japan Komatsu Cummins, type C is to replace other brands engine or even gasoline engines with Dongfeng Cummins produced engines. The detailed introduction and replacement process are as below:

Type A: Engine Replacement Requirement (Original Engine is Dongfeng Cummins Engine).
This is most simple demand case, you just need to provide us the original engine name plate, and then we can easily check and confirm what exactly you need, and we also ensuring that the engine from us will be 100% same with your original engine. (In some case that the vehicle manufacturing modify the engine on their own, we are not able to supply the parts or the condition that modified by the vehicle manufacturer)

Type B: Engine Replacement Requirement (Original Engine is Cummins Engine but produced in UK, USA or other Cummins engine plant).
EMAC have rich experiences in replace the UK, USA or other engine plant produced engine, with Dongfeng Cummins produced Cummins engines, we required the original engine name plate photo to obtain the related information (at least we will need engine serial number, with engine model name only is useless for us, we are not able to provide quotation with engine model name only for the replacement project), and then we can check out the BOM list and all accessories of your original engine serial number, and then we can check and compare with the BOM list of our Dongfeng Cummins produced engine, choose the most closest SO number engine, and modify the parts that not same with your original engine, we have delivered hundreds of cases of replace the customer's original engine that produced in Cummins UK, USA or other engine plants with Dongfeng Cummins produced engines, you can refer to our video introduction on Youtube: https://youtu.be/dYVgRM5NsUo

We can NOT guarantee the engine produced by Dongfeng Cummins is exactly same with your original engine, but we can guarantee that all of engines from EMAC will have no problem with installtion and performance, which all of engines can works very well after replacement.

Type C: Engine Replacement Requirement (Original Engine is other brnad engines even gasoline engines).
EMAC also have rich experiences in replace the engine that not Cummins installed, these engines can be other brands such as Deutz, Caterpillar, Perkins, Komatsu or others, we even had experiences of replace gasoline engine with Dongfeng Cummins produced diesel engines.
This kind of appliaction is more complex and quite risky, EMAC can't do much thing due to lacking of information, the only thing we can guarantee is the performance after replacement, we check and compare the engine performance curve of original engine and our Dongfeng Cummins engine, and then we select the most suitable model for replacement. Due to we are lacking of the installation spaces and related accessories, we will send the both CAD and 3D drawing for our recommend engine model, and then customer have to evaluate the risky of replace the original engine with our engine, especially the risky of space, the possibile interactive when installation, and the risky of modify related coolant pipe, air pipes and wiring harness. Normally this kind of request consuming lots of energy and resource for us to carry on, also quite risky for us, so we will not work on the replacement quantity that below 50 units.
When your requirement is replacement, please tell our customer service team of what type of replacement you need, and provide us original engine name plate, the engine name plate is the necessary material before we start our business negotiations, we will NOT reply to all inquiry that even can't provide engine name plate.

How to Select Suitable Dongfeng Cummins Automotive Engine for Your Vehicle?

To choose a suitable engine for truck, bus or special vehicle manufacturer is quite simple, because the buyer is the manufacturer, so usually they are quite flexible with space, pipes and wiring connections.
The following process are the standard process for us to select a suitable engine model for truck, bus or special vehicle manufacturer demand.

Step 1: We need basic information of the required engine, including rated power, rated speed and emission standard of the required engine.
Step 2: EMAC will evaluate the requirement and select the suitable engine model for customer, with engine data sheet, engine performance curve, CAD darwing, 3D model and budgetary quotation provided back to customer.
Step 3: Customer should check and compare the engine data sheet, performance curve and related drawing and confirm all details one by one. Most important thing is confirm the performance curve suitable for the requirement.
Step 4: After engine confirmed, we have to check and confirm the specifications of accessories one by one carefully, like the electric system specifications (12V or 24V), the detailed specifications of starter motor, charging alternator, air compressor, power steering pump, A/C compressor etc.
Step 5:Confirming the accessories positions and connections, customer need to check and confirm all positions are suitable for the project, such as engine fan, turbocharger, oil pan position, and connections of air pipe, coolant pipe, wiring harness etc.
Step 6: After confirming the engine performance, position, connection and specifications of all accessories, we will be able to provide accurate quotation for prototype and batch order. Prototype is strongly recommend to start the cooperation, to avoid the possible problem, risky on the engine with batch order.

Notes:
1: Technical support including technical training, onsite installation and commissioning services are avaiable with additional chargers.
2: We are able to supply complete powertrain system, including engine, transmission, transfer, axle, suspension etc, engine with transmission is highly recommended, because if we supply both engine and transmission, we can run simulations for the vehicle, which we usually will provide customer a simulation report, with the simulated result of Balanced Maximum Vehilce Speed and Maximum Grade Ability at different speed.
3: EMAC able supply complete chassis that integrate all powertrain system together, which can greatly reduce the manufacturer's design works and reduce the system mismatching risky.

Tips of Dongfeng Cummins Automotive Engines!

Dongfeng Cummins is one of 50:50 joint venture of Cummins in China, its official Cummins factory that following high Cummins USA production and quality control standard, the Dongfeng Cummins factory swap every 5 years between appointed employee from Dongfeng Motor and Cummins. For more details, you can refer to the company introduction of DCEC-Dongfeng Cummins Engine Company.

Started the production of Cummins engines in China in 1980s, Cummins products has been in China for over 40 years, thousands of people have worked for Cummins China and some of them are very skilled experienced engineer, some of them resigned from Cummins to set up their own small workshops or assembly factories that focusing on producing copy Cummins engines.

Price is always not the problem for Chinese suppliers, there are many tickies to lower down the engine prices, such as supply self-rebuild engine as new engine, supply official RECON engine from Cummins as brand new engine, assembly the fake engine with after-market parts, supply lower power model engine and change the name plate etc. You can find plenty of suppliers on alibaxx.com with various prices, the classic Chinese business style is tell you that he give you very low price and not make profit, how can you believe a businessman will make business that have no profit? They gave you low price not becuase they share their profit to you?
As a matter of fact, Chinese supplier often make their profit much more higher by selling the low quality copy products as genuine brand new products! Always remember YOU GET WHAT YOU PAID!
The key point of dealing with Chinese supplier, is to find and choose reliable business partner that will not cheat you for short-term business, but with vision of build long-term career and life-time partnership, EMAC is one of the reliable partner that not chasing for short-term high profit, but we cares our decades of good reputation and we working with all business partners not as supplier and customers, but as close friend and brothers.

FAQ of Dongfeng Cummins Automotive Engines?

1: What mean by DCEC?

DCEC is the short name of Dongfeng Cummins Engine Company, take the first letter of each word, it comes with DCEC as short name, for more details about DCEC, you can refer to the company introduction of DCEC-Dongfeng Cummins Engine Company.

2: Does your engines copy products?

This question is quite often from customer that not familiar with Cummins, Cummins have over 20 joint ventures in China now, and 6 of them are engine joint venture, which Cummins owns 50% share of all of those 6 engine plants, so all of the Cummins factories in China are genuine Cummins factory, that following high Cummins USA production and quality control standard. EMAC is the business partner of DCEC, and we are supplying powertrain and engine power pack based on genuine brand new engines from Dongfeng Cummins for all different applications, EMAC is a reliable and professional power system solution provider that offering abundant various options.

3: Why there are so many companies selling Cummins engines?

There are plenty of companies selling Cummins engines in China, especially on the B2B platform, such as alibaxx.com, you can find plenty suppliers there with attractive prices, Cummins products has been in China for over 40 years, thousands of people have worked for Cummins China and some of them are very skilled experienced engineer, some of them resigned from Cummins to set up their own small workshops or assembly factories that focusing on producing copy Cummins engines. You should be careful of being cheated by the attractive prices with copy or rebuild products.

4: How can I identify if the engine genuine or not?

Cummins keep working on the updating its identification system, technically, there are serial number on all key components of Dongfeng Cummins engines, including cylinder block, cylinder head, turbochager, fuel pump, starter motor, alternator, you can collecting the serial number (NOT part number), and then call DCEC call service center to identify if all the numbers are matching to the original number or not. EMAC continuously updating the latest Cummins identification system, you are welcome to following our website or keep in touch with our customer services team to get latest information from Cummins.

5: What's the warranty policy for the engines supplied by EMAC?

EMAC following standard Dongfeng Cummins warranty policy, which will update sometimes, you can following us to get the latest warranty policy from Dongfeng Cummins. Generally EMAC only afford the defective parts cots and shipping costs for the warranty claims, labor costs and transportation costs are not covered in the warranty.
However, EMAC is building our own independant after-sales service system now, which aims to build a global service network, with resouces of global repair and engineering network, which we believe can bring all business partner benifit in future, helping all of OEM manufacturers expanding their market into global market without worries of lacking after-sales service network. For more details about our Global Service, you can visiting www.global-service.com.

6: How about the future parts supply for the engines? Are you able to supply parts?

As the support team of EMAC's business scope, PartMac is our own brand that focusing on genuine parts directly from all brand factories.
All of EMAC’s partners are facing big challenges with sourcing original spare parts in China. Committed to providing truthworthy and professional after-sales support and parts supply, PartMac is a sub-brand of EMAC group that focusing on parts business. Stick to original parts only, PartMac can’t give any solution on CHEAP PARTS, but you don’t need to worry about any quality issues with every single parts from PartMac.

WhatsApp Online logo

Sales Team


Marine Service - SeaMacWhatApp-Icon

Automotive Service - DuraMacWhatApp-Icon

Industrial Service - ConeMacWhatApp-Icon

Generator Service -SinoGenWhatApp-Icon

Pump Service - PumpMacWhatApp-Icon

Parts Service - PartMacWhatApp-Icon

Sales Manager - Mrs. Wendy Fu

Sales Director - Mr. Jasper Lee       WhatApp-Icon


Shipping Service

Contact EMAC Now!

Subscribe To Our Newsletter

Subscribe To Our Newsletter

Subscribe to get the latest updates from www.dcec-engine.com

Welcome on board, we will keep you updated with latest news and business activities!

Pin It on Pinterest
