DCEC ISDe140-30B Automotive Engine

DCEC ISDe140-30B automotive engine is a 4-cylinders in line, 4.5 liter four-strokes engine with 107mm bore and 124mm stroke, equipped with Electrically Control High-pressure Common Rail, DCEC ISDe140-30B automotive engine comes with turbocharger and Air- Air intercooler, with a EURO III post-processor.

The prime power at 2500RPM of DCEC ISDe140-30B automotive engine is 140HP.

As part of EMAC, DuraMac provides complete powertrain that integrated with DCEC engine, Fast-Eaton clutch, FAST-CAT transmission, Dongfeng-DANA axle and Komman air suspension, while the electrification of automobile is the certain future, Duramac also get involved with EV powertrain system.

We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.

Advantages of DCEC ISDe140-30B Automotive Engine

  • Advanced electronic control integrated system share information among high-speed datalinks, to ensure that the engine maintains the best operating status, effective fuel savings and low emissions under various loads.

  • With higher injection pressure up to 1600 bar, High Pressure Common Rail Fuel System features more precise control of injection timing and amount of fuel, more complete combustion, broader economical fuel consumption zone tremendously enhanced fuel economy, thus further improving low-speed performance, and resulting in better noise reduction and cold start performance.

  • Fast startup, good acceleration and gradeability, superior torque output at low speed.

  • Highly integrated engine subsystems can realize excellent power, ultra long service life, and long maintenance intervals.

  • Advanced electronic control integrated system, large-capacity electronic control module, collect information from all drive train components such as electronic gearbox, ABS brake and ASR anti-skid through standard data bus, forming a seamless information flow…

Technical Specifications

Engine Model:ISDe140-30B
Engine Type:4
Displacement:4.5 L
Rated Speed:2500 RPM
Rated Power / Speed:104 kW @ 2500 RPM
Peak Torque:450 N.m @ 800 – 1700 RPM
Fuel System:Bosch HPCR
Aspiration Method:Turbocharged & Charge Air Cooled
Emission Standard:EURO III
Bore*Storke:107 mm * 124 mm
Packing Size(L*W*H):377 kg
Wet Weight:392 kg
Lead Time:15-30 Working Days
Payment Terms:T/T ,L/C

coming soon

Engine Model

Advertised Power

Peak Torque

Number Of Cylinders

Fuel System

ISDe140 30103 kW @ 2500 RPM450 N.m @ 1400 RPM4 CylinderBosch HPCR
ISDe140-30B104 kW @ 2500 RPM450 N.m @ 800 ~ 1700 RPM4 CylinderBosch HPCR
ISDe140 41103 kW @ 2300 RPM550 N.m @ 1100 ~ 1600 RPM4 CylinderBosch HPCR
ISD140 51103 kW @ 2300 RPM550 N.m @ 1100 ~ 1600 RPM4 CylinderBosch HPCR
ISDe160 30118 kW @ 2500 RPM600 N.m @ 1400 RPM4 CylinderBosch HPCR
ISDe160-30A119 kW @ 2700 RPM600 N.m @ 1200 ~ 1700 RPM4 CylinderBosch HPCR
ISDe160-30B119 kW @ 2700 RPM500 N.m @ 1100 ~ 1600 RPM4 CylinderBosch HPCR
ISDe160 30-II118 kW @ 2700 RPM500 N.m @ 1400 RPM4 CylinderBosch HPCR
ISDe160 31118 kW @ 2500 RPM600 N.m @ 1200 RPM4 CylinderBosch HPCR
ISDe160 41118 kW @ 2300 RPM600 N.m @ 1100 ~ 1600 RPM4 CylinderBosch HPCR
ISD160 51118 kW @ 2300 RPM600 N.m @ 1100 ~ 1600 RPM4 CylinderBosch HPCR
ISDe180 30136 kW @ 2500 RPM650 N.m @ 1400 RPM4 CylinderBosch HPCR
ISDe180-30137 kW @ 2700 RPM650 N.m @ 1200 ~ 1700 RPM4 CylinderBosch HPCR
ISDe180 30-II136 kW @ 2500 RPM650 N.m @ 1400 RPM4 CylinderBosch HPCR
ISDe180 40132 kW @ 2500 RPM700 N.m @ 1500 RPM4 CylinderBosch HPCR
ISDe185-30A135 kW @ 2500 RPM700 N.m @ 1400 RPM4 CylinderBosch HPCR
ISDe185-30B135 kW @ 2500 RPM550 N.m @ 1400 RPM4 CylinderBosch HPCR
ISDe185 31136 kW @ 2500 RPM550 N.m @ 1400 RPM4 CylinderBosch HPCR
ISDe185-31136 kW @ 2500 RPM550 N.m @ 1400 RPM4 CylinderBosch HPCR
ISDe185 41136 kW @ 2300 RPM700 N.m @ 1200 ~1600 RPM4 CylinderBosch HPCR
ISD185 51136 kW @ 2300 RPM700 N.m @ 1100 ~ 1600 RPM4 CylinderBosch HPCR
ISDe200-30149 kW @ 2300 RPM550 N.m @ 1100 ~ 1700 RPM4 CylinderBosch HPCR

General Infomation of DCEC ISDe140-30B Automotive Engine

Engine ModelISDe140-30BAdvertised Power140 HP @ 2500 RPM

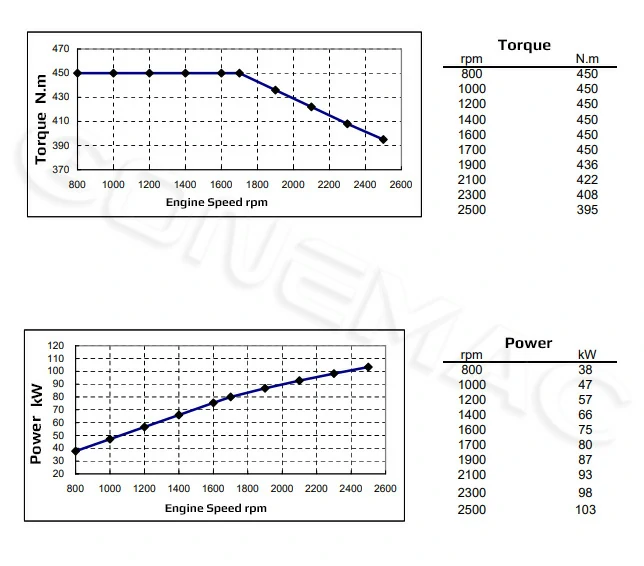

Peak Torque450 N.m @ 800 – 1700 RPMCurve&DatasheetFR92369
Fuel SystemBosch HPCRNo. Of Cylinders4
AspirationTurbocharged & Air-Air IntercoolerDisplacement4.5 L
Bore*Storke107 mm * 124 mmCPL Code Revision1982
Dry Weight 377 kgWet Weight 392 kg
Compression Ratio17.3:1

Installation Data of DCEC ISDe140-30B Automotive Engine

Center of Gravity. Distance From Front Face of Block271 mm
Center of Gravity. Distance Above Crank Centerline(Above Crankshaft)158 mm
Maximum Bending Moment At Rear Face of Block1356 N.m
Maximum Crankshaft Thrust Bearing load limit- Intermittent load3425 N
Maximum Crankshaft Thrust Bearing load limit-Continuous load1779 N
Instantaneous Inertia At Rotating: (Without Flywheel) N/A
Emissions CertificationGB 176912005
Idle Speed600 – 800 RPM
Maximum Non-Load Speed2850 RPM
Over Speed Performance (Within 15 Seconds)4200 RPM
The Clutch Torque @ 800RPM450 N.m
Maximum Altitude At Which Continuous operation Is Allowed3000 m
Supercharger outlet Exhaust Pressure limit Value 413 kPa
Maximum Power of Exhaust BrakeN/A

Engine Performance Data Rated power of DCEC ISDe140-30B  Automotive Drive Engine

Engine Speed2500 RPM2300 RPM1400 RPMOil Pressure390 kPa385 kPa300 kPa
Air to Turbo9.16 m³/min9.02 m³/min4.52 m³/minAir From Turbo143 kPa150 kPa90 kPa
Exhaust Flow9.45 m³/min9.09 m³/min3.96 m³/minExhaust Temp398 440 491
Fuel ConsumptionN/AN/AN/ACoolant Flow215 l/min187 l/min125 l/min
Heat Rejection-Coolant55.5 kW52.5 kW46.9 kWHeat Rejection-Air22.8 kW20.2 kW10.9 kW
Friction Power23 Kw19 Kw11 Kw


System Technical Data of DCEC ISDe140-30B Automotive Drive Engine

Air Intake SystemMaximum Temperature Rise Between Ambient Air and Engine Air Inlet15
Maximum Intake Restriction with Dry Type Air Cleaner,with Clean Filter-Medium Duty2.9 kPa
Maximum Intake Restriction with Dry Type Air Cleaner,with Clean Filter-Heavy Duty3.7 kPa
Maximum Intake Restriction with Dirty Filter6.2 kPa
Turbocharged & IntercooledMaximum Intake Air Temperature Rise Between Ambient and Intake Manifold30
Maximum Pressure Differential Between Supercharger Compressor Outlet and Intake Manifold Inlet13.5 kPa
Usually Suitable Intake Pipe Diameter65 mm
Exhaust SystemMaximum Exhaust Resistance with Exhaust Pipe and Muffler10 kPa
Usually Suitable Exhaust Pipe Diameter75 mm
Lubrication SystemOil Sump Capacity-Upper Limit11 L
Oil Sump Capacity-Lower Limit8.9 L
Capacity of The Whole System13 L
Cooling SystemCoolant Capacity – Engine only7 L
Standard Thermostat (Modulating) Range83-95
Maximum Coolant Pressure (without Pressure Cap, Thermostat Closed)200 kPa
Maximum Coolant Temperature Engine out100
Maximum Degassing Time25 mins
Maximum Coolant Flow to Accessories37 l/min
Minimum Recommended Coolant Temperature70
Minimum Water Addition Rate19 l/min
Minimum Coolant Expansion Space – % of System Capacity6%
Minimum Drop Tank Volume without Expansion Tank (% of total Cooling System)11%
Minimum Allows Pressure of Pressure Cap50 kPa
Coolant Alarm Temperature104
Common Operating Temperature Range of Fans with Fan Clutch93
24V Electrical SystemMaximum Allowable Resistance of Cranking Circuit0.004 Ω
The Cold Start Current When Engine and The Clutch Separate550 CCA
Cold Starting SystemMaximum Unaided Cold Start Temperature120 RPM -12 ℃
Minimum Cold Start Temperature with Auxiliary Starter120 RPM -35 ℃
Fuel SystemMaximum Oil Inlet Resistance of The Oil Transfer Pump with A Clean Filter30 kPa
Maximum Fuel Return Resistance20 kPa
Minimum Oil Discharge Capacity of Fuel Tank0.2 m³/hr
Maximum Fuel Temperature (At The Fuel Pump Inlet)70

Scopes of Supply of DCEC ISDe140-30B Automotive Engine

Air Intake System1. Air Intake ManifoldExhuast System1. Exhuast Manifold
2. Water-Air Intercooler2. Turbocharger
3. N/A3. Exhuast Elbow
Fuel System1. Fuel Transfer PumpStarting System1. Starter Motor
2. High-Pressure Fuel Pump2. Starter Rely
3. Fuel Filter3. N/A
Charging System1. Charging AlternatorEngine Shut-Down System1. Engine Puel Shut-Off Solenoid
Lubricating System1. Oil PumpCooling System1. Water Pump
2. Oil Filter2. Engine Fan
3. N/A3. Standard Radiator
Power Output System1. FlywheelEngine Mounting System1. Engine Mouting Bracket
2. Standard Flywheel Housing2. N/A
Engine Auiliary Accessories1. Air Compressor
2. Power Steering Pump

Optional Accessories of DCEC ISDe140-30B Automotive Engine

Air Intake System1. Air Intake Pre-HeaterExhuast System1. Muffler & Bellows
2. Air Intake Shut-Off Valve2. Flame Trap
3. Air Filter3. Spark Arrestor Type Muffler & Bellows
4. Air Intake Pre-Filter4. DPF System
5. Air Filter Alarm System5. N/A
Fuel System1. Coarse FilterStarting System1.Manual Magnetic DC Contactor
2. Fuel Pre-Heater2. Dual Ears Flywheel Housing
3. N/A3. Spring Starter Motor
4. N/A4. Air Starter Motor
5. N/A5. Hydraulic Starter Motor
Lubricating System1. Oil Pre-Heater.Cooling System1. Silent Type Radiator
2. N/A2. Plateau Radiator
3. N/A3. Salt-Spray Resistant Radiator
4. N/A4. Coolant Pre-Heater
Power Output System1. ClutchEngine Mounting System1. Shock Absorber Pad
Engine Auiliary Accessories1. Hydraulic Oil PumpControl System1. Can Add Mechanical Accelerator Pedal
2. Air Conditioner Compressor2. N/A
3. N/A3. N/A

As part of EMAC, DuraMac is Committed to providing reliable powertrain system to commercial vehicle manufacturers around the world, a sub-brand of EMAC group that focusing on automotive application. Based on dozens of world-class engine manufacturing resources in China, and as official exporting agent of Fast tranmission (Joint venture with Caterpillar AT tranmission), Dongfeng Dana axle and Komman air suspension, DuraMac provides one-stop solutions covers from pre-design to components supply, from installation to commissioning, from pre-sales communication to after-sales service support. For more information of our automotive power system products, you are welcome to visit DuraMac homepage:

Modifiable Components of DCEC ISDe140-30B Automotive Engine

Air Intake System1. Installation Position of Air FilterExhuast System1. Can Modify Installation Position and Direction of
2. Upgrade to  Heavy-Duty Type Air FitlerTurbocharger
3. N/A2. Water-Cooled Exhuast manifold
4. N/A3. Water-Cooled Turbocharger
Fuel System1. Upgrade to Fuel Fitler That Integrated with Fuel TransferStarting System1. 12V Starter Motor For 12v Electric System
Pump and Fuel Pre-Hearter2. Upgrading to Specified Brand and Speicifications of
2. N/AStarter Motor
Charging System1. 12V Charging Alternator for 12v Electric SystemEngine Shut-Down System1. 12V Solenoid for 12v Electric System
2. Explosion-Proof Charging Alternator2. Explosion-Proof Solenoid
3. Upgrading to Specified Brand And Speicifications of3. N/A
Charging Alternator4. N/A
Lubricating System1. Oil Pan PositionCooling System1. Can Modify Engine Fan Into Blower Fan or Suction Fan
2. Number of Dipstick2. Can Modify Central Position of Engine Cooling Fan
3. Position of Dipstick Can Choose From 6 Positions3. Can Choose Type of Engine Fan From Mechanical Type or
4. Can Modify Oil Filter to be Remote InstallationElectric Type
Power Output System1. Can Modify Size of Flywheel Housing and Flywheel.Engine Mounting System1. Can Modify Engine Mouting Bracket.
2. Dual-Ear Flywheel Housing (for Twin-Starter System)2. N/A
3. Some of Models Can Modify Flywheel Housing Into PTO3. N/A
Integrated Type.4. N/A
4. Engine Have Connecting Port of PTOs, That Able to5. N/A
Provide Power Output.6. N/A
Engine Auiliary Accessories1. All of Auxiliary System Can Choose Specified Brands and
2. Additional Auxiliary Systems Can be Added for Special

Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
