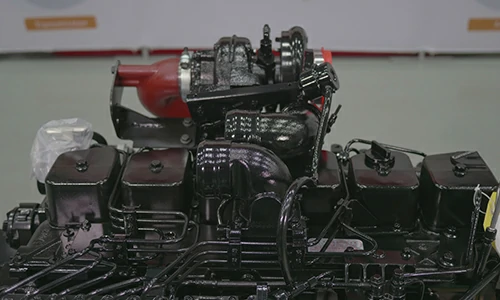

DCEC EQB190-20 Automotive Engine

DCEC EQB190-20 automotive engine is a 6-cylinders in line, 5.9 liter four-strokes engine with 102mm bore and 120mm stroke, equipped with Bosch VE pump. DCEC EQB190-20 automotive engine comes with turbocharger and Air- Air intercooler, with a EURO II post-processor.
The prime power at 2800RPM of DCEC EQB190-20 automotive engine is 190HP.
As part of EMAC, DuraMac provides complete powertrain that integrated with DCEC engine, Fast-Eaton clutch, FAST-CAT transmission, DANA axle and Komman air suspension, while the electrification of automobile is the certain future, Duramac also get involved with EV powertrain system.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.

Advantages of EQB190-20 Automotive Engine

Lower fuel consumption: Originated from the United States CMS advanced design and superior manufacture, lower 20% oil consumption than congeneric Chinese products.
Strong power, the design of exhaust bypass valve makes low speed performance more perfect and better dynamic performance.
Excellent reliability, Cylinder block and head using integrated design, to stop the engine leaking and oil leakage phenomenon, engine parts are Less 40% than other similar engine, greatly reduce the failure rate.
Lower maintenance and repair costs, Fewer parts quantity and lower use fault Make the engine comprehensive maintenance cost greatly reduced and maintenance time than similar type save 50%.
Excellent cold start performance, equipped with air suction electric preheater and 6.6 kw power starter, Completely improve the cold start performance of the engine. Through the arctic village-MoHe of China-36。C extreme low temperature validation.

Technical Specifications

Engine Model:	EQB190-20
Engine Type:	6
Displacement:	5.9 L
Rated Speed:	2800 RPM
Rated Power:	190 HP @ 2800 RPM
Peak Torque:	650 N.m @ 1400 RPM
Fuel System:	Bosch Pump
Aspiration Method:	Turbocharged & Air-Air Intercooler
Emission Standard:	N/A
*BoreStorke:**	102 mm * 120 mm
*Packing Size(LWH):*	N/A
Wet Weight:	431 kg
Lead Time:	15-30 Working Days
Payment Terms:	T/T ,L/C

coming soon

Engine Model	Advertised Power	Peak Torque	No. of Cylinders	Displacement	Fuel System
EQB125-20	125 HP @ 2800 RPM	410 N.m @ 1500 RPM	4	3.9 L	Bosch Pump
EQB140-20	140 HP @ 2700 RPM	502 N.m @ 1500 RPM	4	3.9 L	Bosch Pump
EQB160-20	160 HP @ 2500 RPM	565 N.m @1500~1600 RPM	6	5.9 L	BYC P7000 Pump
EQB170-21	170 HP @ 2500 RPM	560 N.m @ 1300 RPM	6	5.9 L	BYC P7100/RQV-K Pump
EQB180-20A	180 HP @ 2500 RPM	610 N.m @ 1500 RPM	6	5.9 L	Bosch Pump
EQB180-20B	180 HP @ 2500 RPM	610 N.m @ 1500 RPM	6	5.9 L	Bosch P7100 / Weifu PW2000 Pump
EQB190-20	190 HP @ 2800 RPM	650 N.m @ 1400 RPM	6	5.9 L	Bosch Pump
EQB190-21	190 HP @ 2500 RPM	640 N.m @ 1300-1500 RPM	6	5.9 L	BYC P 7100 Pump
EQB210-20A	210 HP @ 2500 RPM	700 N.m @ 1500 RPM	6	5.9 L	Bosch Pump
EQB210-20B	210 HP @ 2500 RPM	700 N.m @ 1500 RPM	6	5.9 L	Bosch P7100 / Weifu PW2000 Pump
EQB235-20	235 HP @ 2500 RPM	800 N.m @ 1600 RPM	6	5.9 L	Bosch P7100 Pump
——END——

General Infomation of DCEC EQB190-20 Automotive Engine
Engine Model	EQB190-20	Advertised Power	190 HP @ 2800 RPM
Peak Torque	650 N.m @ 1400 RPM	Curve&Datasheet	FR 91420
Fuel System	Bosch Pump	No. Of Cylinders	6
Aspiration	Turbocharged & Air-Air Intercooler	Displacement	5.9 L
*BoreStorke**	102 mm * 120 mm	CPL Code Revision	8555
Dry Weight	407 kg	Wet Weight	431 kg
Compression Ratio	17.3:1

Installation Data of DCEC EQB190-20 Automotive Engine
Center of Gravity. Distance From Front Face of Block		328 mm
Center of Gravity. Distance Above Crank Centerline(Above Crankshaft)		155 mm
Maximum Bending Moment At Rear Face of Block		1356 N.m
Maximum Crankshaft Thrust Bearing load limit- Intermittent load		3781 N
Maximum Crankshaft Thrust Bearing load limit-Continuous load		1780 N
Instantaneous Inertia At Rotating: (Without Flywheel)		0.25 kg.m2
Emissions Certification		GB17691/GB14761
Idle Speed		750 RPM
Maximum Non-Load Speed		3100 RPM
Over Speed Performance (Within 15 Seconds)		4200 RPM
The Clutch Torque @ 800Rpm		360 N.m
Maximum Altitude At Which Continuous operation Is Allowed		3000 m
Supercharger outlet Exhaust Pressure limit Value		414 kPa
Maximum Power of Exhaust Brake		112 kW
——END——

Engine Performance Data Rated power of DCEC EQB190-20 Automotive Drive Engine
	Rated Power	Torque Peak		Rated Power	Torque Peak
Engine Speed	2800 RPM	1400 RPM	Exhaust Temperature	520 ℃	480 ℃
Oil Pressure	400 kPa	350 kPa	Fuel Consumption	41 l/hr	29.3 l/hr
The Air Flow	17.5 m³/min	9.5 m³/min	Coolant Flow	215 l/m	100 l/m
The Flow Rate of Pressurized Air	20 kg/min	11 kg/min	Heat Loss Coolant	79 kW	49 kW
Pressurized Air Pressure	150 kPa	110 kPa	Heat Loss Air	35 kW	17 kW
The Exhaust Flow	49 m³/min	27 m³/min	Mechanical Loss of Power	37 kW	12 kW

System Technical Data of DCEC EQB190-20 Automotive Drive Engine
Air Intake System	Maximum Temperature Rise Between Ambient Air and Engine Air Inlet	15 ℃
	Maximum Intake Restriction with Dry Type Air Cleaner,with Clean Filter-Medium Duty	2.9 (300) kPa (mmH2O)
	Maximum Intake Restriction with Dry Type Air Cleaner,with Clean Filter-Heavy Duty	3.7 (380) kPa (mmH2O)
	Maximum Intake Restriction with Dirty Filter	6.2 (635) kPa (mmH2O)

Turbocharged & Intercooled	Maximum Intake Manifold Temperature-Second Level	55 ℃
	Maximum Intake Manifold Temperature-Three-Level	50 ℃
	Intercooler Cooling Temperature-Second Level	25 ℃
	Intercooler Cooling Temperature-Three-Level	20 ℃
	Maximum Allowable Pressure Difference Before and After Intercooling-Three-Level	16.7 (125) kPa(mmHg)
	Minimum Inlet Pipe Diameter Allowed-Three-Level	75 mm

Exhaust System	Maximum Back Pressure Imposed by Complete Exhaust System	10.0 (75) kPa (mmHg)
	Exhaust Pipe Size Normally Accepable	75 mm
	Maximum Static Bend Allowed for Turbocharger Exhaust Flange	N/A

Lubrication System	Low oil Level Inclination Angle-Front Up	45 °
	Low oil Level Inclination Angle-Back Up	45 °
	Low oil Level Inclination Angle-Fuel Pump Side Up	45 °
	Low oil Level Inclination Angle-Exhaust Side Up	45 °
	Oil Sump Capacity-Upper Limit	14.2 L
	Oil Sump Capacity-Lower Limit	12.4 L
	Capacity of The Whole System	16.4 L

Cooling System	Coolant Capacity – Engine only	9 L
	Standard Thermostat (Modulating) Range	83-95 ℃
	Minimum Fill Rate ( Without Low Level Alarm)	19 l/min
	Minimum Coolant Expansion Space – % of System Capacity	6%
	Water Tank Capacity Without Water Expansion	6 L
	Maximum Coolant Pressure (Without Pressure Cap, Thermostat Closed)	276 kPa
	Maximum Degassing Time	25 mins
	Maximum Coolant Flow to Accessories	41 l/min
	Maximum Coolant Temperature Engine out	100 ℃
	Minimum Allows Pressure of Pressure Cap	50 kPa
	Minimum Recommended Coolant Temperature	70 ℃
	Common Operating Temperature Range of Fans with Fan Clutch	93 ℃
	Maximum Coolent Temperature For Engine Protection Control	100 ℃
	The Limit Environmental Temperature at Rated Speed	Second Level 45 ℃;Three-Level 42 ℃
	The Limit Environmental Temperature at Peak Torque	Second Level 40 ℃;Three-Level 37 ℃

24V Electrical System	Maximum Allowable Resistance of Cranking Circuit	0.002 Ω
24V Electrical System	The Cold Start Current When Engine and The Clutch Separate	12 V 500 24 V 250

Cold Starting System	Maximum Unaided Cold Start Temperature	120 RPM -10 ℃
Cold Starting System	Maximum Aided Cold Start Temperature	110 RPM -35 ℃

Fuel System	Maximum Fuel Return Resistance	520 (mmHg)
Fuel System	Maximum Inlet Resistance of oil Pump with Clean Filter	150 (mmHg)
——END——

Scopes of Supply of DCEC EQB190-20 Automotive Engine
Air Intake System	1. Air Intake Manifold	Exhuast System	1. Exhuast Manifold
	2. Water-Air Intercooler		2. Turbocharger
	3. N/A		3. Exhuast Elbow

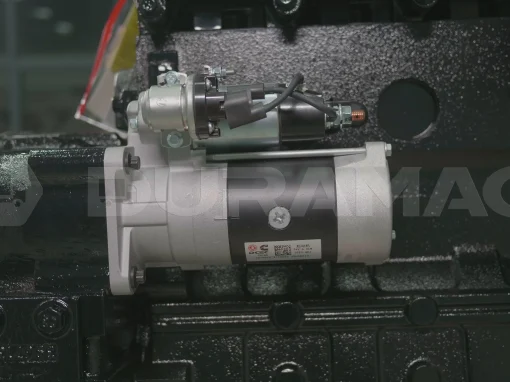

Fuel System	1. Fuel Transfer Pump	Starting System	1. Starter Motor
	2. High-Pressure Fuel Pump		2. Starter Rely
	3. Fuel Filter		3. N/A

Charging System	1. Charging Alternator	Engine Shut-Down System	1. Engine Puel Shut-Off Solenoid

Lubricating System	1. Oil Pump	Cooling System	1. Water Pump
	2. Oil Filter		2. Engine Fan
	3. N/A		3. Standard Radiator

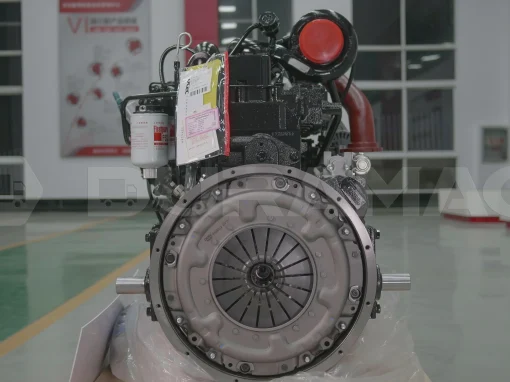

Power Output System	1. Flywheel	Engine Mounting System	1. Engine Mouting Bracket
Power Output System	2. Standard Fflywheel Housing	Engine Mounting System	2. N/A

Engine Auiliary Accessories	1. Air Compressor
Engine Auiliary Accessories	2. Power Steering Pump
——END——

Optional Accessories of DCEC EQB190-20 Automotive Engine
Air Intake System	1. Air Intake Pre-Heater	Exhuast System	1. Muffler & Bellows
	2. Air Intake Shut-Off Valve		2. Flame Trap
	3. Air Filter		3. Spark Arrestor Type Muffler & Bellows
	4. Air Intake Pre-Filter		4. DPF System
	5. Air Filter Alarm System		5. N/A

Fuel System	1. Coarse Filter	Starting System	1.Manual Magnetic DC Contactor
	2. Fuel Pre-Heater		2. Dual Ears Flywheel Housing
	3. N/A		3. Spring Starter Motor
	4. N/A		4. Air Starter Motor
	5. N/A		5. Hydraulic Starter Motor

Lubricating System	1. Oil Pre-Heater.	Cooling System	1. Silent Type Radiator
	2. N/A		2. Plateau Radiator
	3. N/A		3. Salt-Spray Resistant Radiator
	4. N/A		4. Coolant Pre-Heater

Power Output System	1. Clutch	Engine Mounting System	1. Shock Absorber Pad

Engine Auiliary Accessories	1. Hydraulic Oil Pump	Control System	1. Can Add Mechanical Accelerator Pedal
	2. Air Conditioner Compressor		2. N/A
	3. N/A		3. N/A

——END——

As part of EMAC, DuraMac is Committed to providing reliable powertrain system to commercial vehicle manufacturers around the world, a sub-brand of EMAC group that focusing on automotive application. Based on dozens of world-class engine manufacturing resources in China, and as official exporting agent of Fast tranmission (Joint venture with Caterpillar AT tranmission), Dongfeng Dana axle and Komman air suspension, DuraMac provides one-stop solutions covers from pre-design to components supply, from installation to commissioning, from pre-sales communication to after-sales service support. For more information of our automotive power system products, you are welcome to visit DuraMac homepage: www.duramac.com

Modifiable Components of DCEC EQB190-20 Automotive Engine
Air Intake System	1. Installation Position of Air Filter	Exhuast System	1. Can Modify Installation Position and Direction of
	2. Upgrade to Heavy-Duty Type Air Fitler		Turbocharger
	3. N/A		2. Water-Cooled Exhuast manifold
	4. N/A		3. Water-Cooled Turbocharger

Fuel System	1. Upgrade to Fuel Fitler That Integrated with Fuel Transfer	Starting System	1. 12V Starter Motor For 12v Electric System
	Pump and Fuel Pre-Hearter		2. Upgrading to Specified Brand and Speicifications of
	2. N/A		Starter Motor

Charging System	1. 12V Charging Alternator for 12v Electric System	Engine Shut-Down System	1. 12V Solenoid for 12v Electric System
	2. Explosion-Proof Charging Alternator		2. Explosion-Proof Solenoid
	3. Upgrading to Specified Brand And Speicifications of		3. N/A
	Charging Alternator		4. N/A

Lubricating System	1. Oil Pan Position	Cooling System	1. Can Modify Engine Fan Into Blower Fan or Suction Fan
	2. Number of Dipstick		2. Can Modify Central Position of Engine Cooling Fan
	3. Position of Dipstick Can Choose From 6 Positions		3. Can Choose Type of Engine Fan From Mechanical Type or
	4. Can Modify Oil Filter to be Remote Installation		Electric Type

Power Output System	1. Can Modify Size of Flywheel Housing and Flywheel.	Engine Mounting System	1. Can Modify Engine Mouting Bracket.
	2. Dual-Ear Flywheel Housing (for Twin-Starter System)		2. N/A
	3. Some of Models Can Modify Flywheel Housing Into PTO		3. N/A
	Integrated Type.		4. N/A
	4. Engine Have Connecting Port of PTOs, That Able to		5. N/A
	Provide Power Output.		6. N/A

Engine Auiliary Accessories	1. All of Auxiliary System Can Choose Specified Brands and
	Specifications.
	2. Additional Auxiliary Systems Can be Added for Special
	Applications.
