DCEC Engine Models

DCEC Engine Company is a 50:50 equity ratio joint venture between between CMS and Dongfeng Motor Company that established in the year 0f 1996.
DCEC Engine Co., Ltd. mainly produces DCEC B, C, D, L, Z series mechanical and electronic engines, the engine displacement is covering 3.9L, 4.5L, 5.9L, 6.7L, 8.3L, 8.9L, 13L, with the power coverage is from 19kw to 562kW.
DCEC engines can meet up to EURO Stage VI emission regulations, and widely used in light, medium and heavy trucks, large and medium-sized buses, industrial machinery, marine, generator sets, water pump set and railways.

Find Engines by Series

This is the list of all DCEC engines series for automotive, industrial, pump set, generator drive and marine applications. Click here to find engines by type

Automotive Engine

DCECAutomotive Engine Catalogue

Series

Model

B140-33 | 140 HP @ 2500 RPMB170-33 | 170 HP @ 2500 RPMB190-33 | 190 HP @ 2500 RPMB210-33 | 210 HP @ 2500 RPM
EQB125-20 | 125 HP @ 2800 RPMEQB140-20 | 140 HP @ 2700 RPMEQB160-20 | 160 HP @ 2500 RPMEQB170-21 | 170 HP @ 2500 RPM
EQB180-20A | 180 HP @ 2500 RPMEQB180-20B | 180 HP @ 2500 RPMEQB190-20 | 190 HP @ 2800 RPMEQB190-21 | 190 HP @ 2500 RPM
EQB210-20A | 210 HP @ 2500 RPMEQB210-20B | 210 HP @ 2500 RPMEQB235-20 | 235 HP @ 2500 RPM
C220-10A | 220 HP @ 2400 RPMC220-10B | 220 HP @ 2400 RPMC230-10 | 230 BHP @ 2400 RPMC230-20 | 230 HP @ 2200 RPM
C240-10 | 240 BHP @ 2400 RPMC245-20A | 241 BHP @ 2400 RPMC245-20B | 243 HP @ 2200 RPMC260-20 | 260 HP @ 2500 RPM
C260-33 | 260 HP @ 2200 RPMC280-20 | 280 HP @ 2200 RPMC300-20A | 300 HP @ 2200 RPMC300-20B | 300 HP @ 2200 RPM
C325-20 | 325 HP @ 2200 RPM
L300-20 | 300 HP @ 2200 RPML325-20 | 325 HP @ 2200 RPML340-20 | 340 HP @ 2200 RPML340-30 | 340 HP @ 2200 RPM

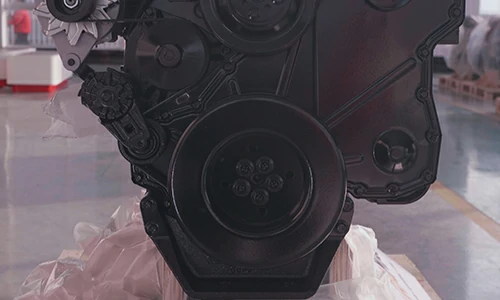

L360-20 | 360 HP @ 2200 RPML360-30 | 360 HP @ 2200 RPML375-30 | 375 HP @ 2200 RPM
L9NS6B280 | 206 kW @ 1900 RPML9NS6B315 | 232 kW @ 1900 RPML9NS6B340 | 250 kW @ 1900 RPML9NS6B360 | 265 kW @ 1900 RPM
L9NS6B400 | 294 kW @ 1900 RPML9NS6B400-II | 294 kW @ 2100 RPML9NS6B430 | 316 kW @ 2200 RPM

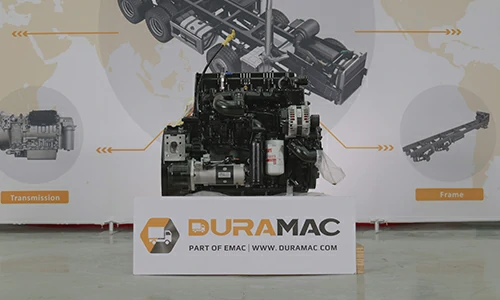

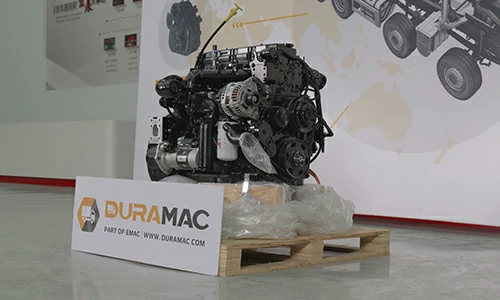

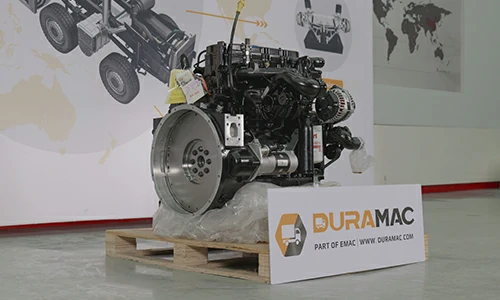

D4.0NS6B150 | 110 kW @ 2400 RPMD4.0NS6B160 | 110 kW @ 2400 RPMD4.0NS6B170 | 118 kW @ 2400 RPMD4.0NS6B185 | 125 kW @ 2400 RPM
D4.0NS6B195 | 136 kW @ 2400 RPMD4.0NS6B195-II | 143(192) kW @ 2400 RPM
D4.5NS6B190 | 140(188) kW @ 2300 RPMD4.5NS6B210 | 154(207) kW @ 2300 RPMD4.5NS6B220 | 162(217) kW @ 2300 RPM
D6.7NS6B260 | 256 HP @ 2300 RPMD6.7NS6B290 | 289 HP @ 2300 RPM

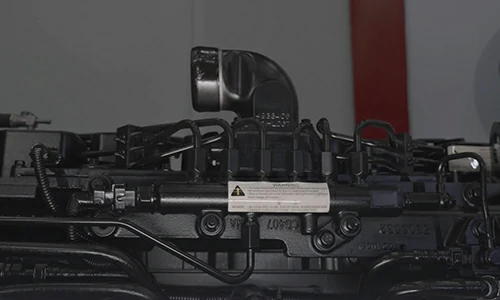

ISB3.9-125E40A | 98 kW @ 2500 RPMISB3.9-140E40A | 103 kW @ 2500 RPMISB3.9-160E41A | 118 kW @ 2500 RPM
ISDe140 30 | 103 kW @ 2500 RPMISDe140-30B | 104 kW @ 2500 RPMISDe140 41 | 103 kW @ 2300 RPMISDe140 51 | 103 kW @ 2300 RPM
ISDe160 30 | 118 kW @ 2500 RPMISDe160 30A | 119 kW @ 2700 RPMISDe160 30B | 119 kW @ 2700 RPMISDe160 30-II | 118 kW @ 2700 RPM
ISDe160 31 | 118 kW @ 2500 RPMISDe160 41 | 118 kW @ 2300 RPMISDe160 51 | 118 kW @ 2300 RPMISDe180 30 | 136 kW @ 2500 RPM
ISDe180-30 | 136 kW @ 2700 RPMISDe180 30-II | 136 kW @ 2500 RPMISDe180 40 | 132 kW @ 2500 RPMISDe185-30A | 135 kW @ 2500 RPM
ISDe185-30B | 135 kW @ 2500 RPMISDe185 31 | 136 kW @ 2500 RPMISDe185 41 | 136 kW @ 2300 RPMISDe185 51 | 136 kW @ 2300 RPM
ISDe200-30 | 149 kW @ 2300 RPM
ISDe210-30A | 207 HP @ 2500 RPMISDe210-30B | 210 HP @ 2500 RPMISDe230-30 | 226 HP @ 2500 RPMISDe245-30 | 241 HP @ 2500 RPM
ISDe270-30A | 266 HP @ 2500 RPMISDe270-30B | 281 HP @ 2500 RPMISDe285-30 | 281 HP @ 2500 RPMISDe285-50 | 281 HP @ 2500 RPM
ISF2.8s3129T | 130 HP @ 3200 RPMISF2.8s4129T | 130 HP @ 3200 RPMISF2.8s4148T | 150 HP @ 3200 RPM
ISF3.8s3154 | 153 HP @ 2600 RPMISF3.8s4R168 | 168 HP @ 2600 RPM
ISLe270 30 | 201 kW @ 2100 RPMISLe290 30 | 213 kW @ 2100 RPMISLe290-30 | 216 kW @ 2100 RPMISLe290 40 | 213 kW @ 2100 RPM
ISLe290 50 | 213 kW @ 2100 RPMISLe292 40 | 215 kW @ 2100 RPMISLe292 50 | 292 HP @ 2100 RPMISLe310 30 | 228 kW @ 2100 RPM
ISLe310-30 | 231 kW @ 2100 RPMISLe315 40 | 232 kW @ 2100 RPMISLe315 50 | 315 HP @ 2100 RPMISLe325 40 | 239 kW @ 2100 RPM
ISLe325 50 | 325 HP @ 2100 RPMISLe340 30 | 250 kW @ 2100 RPMISLe340-30 | 253 kW @ 2100 RPMISLe340 40 | 250 kW @ 2100 RPM
ISLe340 50 | 340 HP @ 2100 RPMISLe360 40 | 265 kW @ 2100 RPMISLe360 50 | 360 HP @ 2100 RPMISLe375 30 | 275 kW @ 2100 RPM
ISLe375 30-II | 275 kW @ 2100 RPMISLe375-30 | 280 kW @ 2100 RPMISLe375-40 | 275 kW @ 2100 RPMISLe375 50 | 280 kW @ 2100 RPM
ISLe380 50 | 283 kW @ 2100 RPMISLe400 40 | 294 kW @ 2100 RPMISL8.9-292E50A | 215 kW @ 2100 RPMISL8.9-315E50A | 232 kW @ 2100 RPM
ISL8.9-340E51A | 252 kW @ 2100 RPMISL8.9E5280B | 209 kW @ 2100 RPMISL8.9E5320B | 235 kW @ 2100 RPMISL8.9E5340B | 250 kW @ 2100 RPM
LK290 33 | 221 kW @ 2000 RPMLK340 33 | 252 kW @ 2000 RPMLK340 33-II | 168 kW @ 2000 RPMISL9.5-292E40A | 215 kW @ 1900 RPM
ISL9.5-292E40A-ll | 215 kW @ 1900 RPMISL9.5-292E42A | 215 kW @ 1900 RPMISL9.5-292E43A | 215 kW @ 1900 RPMISL9.5-315E40A | 232 kW @ 1900 RPM
ISL9.5-315E40A-II | 232 kW @ 1900 RPMISL9.5-315E43A | 232 kW @ 1900 RPMISL9.5-325E40A | 239 kW @ 1900 RPMISL9.5-340E40A | 250 kW @ 1900 RPM
ISL9.5-340E40A-ll | 250 kW @ 1900 RPMISL9.5-340E41A | 251 kW @ 1900 RPMISL9.5-340E42A | 250 kW @ 1900 RPMISL9.5-340E43A | 251 kW @ 1900 RPM
ISL9.5-350E40A | 258 kW @ 1900 RPMISL9.5-350E40A-ll | 259 kW @ 1900 RPMISL9.5-360E40A | 268 kW @ 1900 RPMISL9.5-375E40A | 276 kW @ 1900 RPM
ISL9.5-375E40A-II | 276 kW @ 1900 RPMISL9.5-375E42A | 276 kW @ 1900 RPMISL9.5-385E40A | 285 kW @ 1900 RPMISL9.5-385E40A-II | 285 kW @ 1900 RPM
ISL9.5-385E41A | 285 kW @ 1900 RPMISL9.5-385E51A | 287 kW @ 1900 RPMISL9.5-400E40A | 295 kW @ 1900 RPMISL9.5-400E40A-II | 395 kW @ 1900 RPM
ISL9.5-425E40A | 313 kW @ 1900 RPM
ISZ425-40A | 425 HP @ 2100 RPMISZ425-40B | 425 HP @ 2100 RPMISZ425-41 | 424 HP @ 2100 RPMISZ450-40A | 456 HP @ 2100 RPM
ISZ450-40B | 450 HP @ 2100 RPMISZ450-41 | 450 HP @ 2100 RPMISZ460-51 | 450 HP @ 2100 RPMISZ520-41 | 450 HP @ 2100 RPM
ISZ525-40A | 525 HP @ 2100 RPMISZ525-40B | 525 HP @ 2100 RPMISZ525-40C | 525 HP @ 2100 RPM
ISZ425 40 | 425 hp(317 kW) @ 2100 RPMISZ425 41 | 312 kW(425 Ps) @ 1900 RPMISZ450 40 | 450 hp(335 kW) @ 2100 RPMISZ480 40 | 358 kW(480 BHP) @ 2100 RPM
ISZ480 41 | 353 kW(480 Ps) @ 1900 RPMISZ520 40 | 388 kW(520 BHP) @ 2100 RPMISZ520 41 | 382 kW(520 Ps) @ 1900 RPMISZ525 40 | 525 HP(392 kW) @ 2100 RPM
ISMe385-30 | 380 HP @ 1900 RPMISMe420-30 | 420 HP @ 1900 RPM

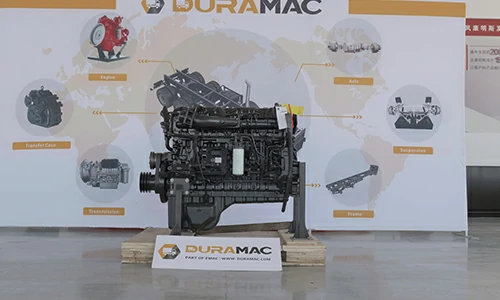

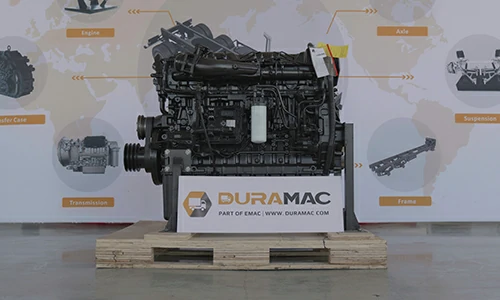

Z14NS6B480 | 358 kW @ 1800 RPMZ14NS6B520 | 388 kW @ 1800 RPMZ14NS6B560 | 418 kW @ 1800 RPMZ14NS6B600 | 441 kW @ 1800 RPM
Z15NS6B600 | 441 kW @ 1800 RPMZ15NS6B630 | 464 kW @ 1800 RPMZ15NS6B660 | 485 kW @ 1800 RPM
——END——

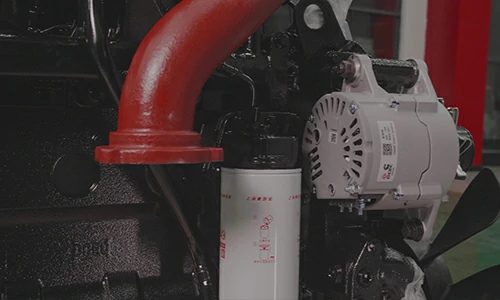

DCEC EQB125-20 Automotive Engine

DCEC EQB125-20 Automotive Engine

Rated Power: 92 kW @ 2800 rpm
Max. Torque: 410 N.m @ 1500 rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

DCEC EQB140-20 Automotive Engine

DCEC EQB140-20 Automotive Engine

Rated Power: 140 HP @ 2700 RPM
Max. Torque: 502 N.m @ 1500 RPM
Fuel System: Bosch Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC EQB160-20 Automotive Engine

DCEC EQB160-20 Automotive Engine

Rated Power: 160 HP @ 2500 RPM
Max. Torque: 550 N.m @ 1600 RPM
Fuel System: Bosch Pump
Aspiration: TC & Intercooler
Emission Standard: N/A

DCEC EQB170-21 Automotive Engine

DCEC EQB170-21 Automotive Engine

Rated Power: 170 HP @ 2500 RPM
Max. Torque: 560 N.m @ 1300 RPM
Fuel System: BYC P7100 Pump / RQV-K
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC EQB180-20A Automotive Engine

DCEC EQB180-20A Automotive Engine

Rated Power: 180 HP @ 2500 RPM
Max. Torque: 610 N.m @ 1500 RPM
Fuel System: Bosch Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC EQB180-20B Automotive Engine

DCEC EQB180-20B Automotive Engine

Rated Power: 180 HP @ 2500 RPM
Max. Torque: 610 N.m @ 1500 RPM
Fuel System: Bosch P7100 / Weifu PW2000 Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC EQB190-20 Automotive Engine

DCEC EQB190-20 Automotive Engine

Rated Power: 190 HP @ 2800 RPM
Max. Torque: 650 N.m @ 1400 RPM
Fuel System: Bosch Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC EQB190-21 Automotive Engine

DCEC EQB190-21 Automotive Engine

Rated Power: 190 HP @ 2500 RPM
Max. Torque: 640 N.m @ 1300-1500 RPM
Fuel System: BYC P 7100 Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC EQB210-20A Automotive Engine

DCEC EQB210-20A Automotive Engine

Rated Power: 210 HP @ 2500 RPM
Max. Torque: 700 N.m @ 1500 RPM
Fuel System: Bosch Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC EQB210-20B Automotive Engine

DCEC EQB210-20B Automotive Engine

Rated Power: 210 HP @ 2500 RPM
Max. Torque: 700 N.m @ 1500 RPM
Fuel System: Bosch P7100 / Weifu PW2000 Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC EQB235-20 Automotive Engine

DCEC EQB235-20 Automotive Engine

Rated Power: 235 HP @ 2500 RPM
Max. Torque: 800 N.m @ 1600 RPM
Fuel System: Bosch P7100 Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC B170-33 Automotive Engine

DCEC B170-33 Automotive Engine

Rated Power: 170 HP @ 2500 RPM
Max. Torque: 560 N.m @ 1300 RPM
Fuel System: BYC Pump / RQVK
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC B140-33 Automotive Engine

DCEC B140-33 Automotive Engine

Rated Power: 140 HP @ 2500 RPM
Max. Torque: 502 N.m @ 1500 RPM
Fuel System: BYC Pump / RQVK
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC B190-33 Automotive Engine

DCEC B190-33 Automotive Engine

Rated Power: 210 HP @ 2500 RPM
Max. Torque: 640 N.m @ 1300-1500 RPM
Fuel System: BYC Pump / RQVK
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC B210-33 Automotive Engine

DCEC B210-33 Automotive Engine

Rated Power: 210 HP @ 2500 RPM
Max. Torque: 700 N.m @ 1500 RPM
Fuel System: Weifu PH Pump / RQVK
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC C220-10A Automotive Engine

DCEC C220-10A Automotive Engine

Rated Power: 220 HP @ 2400 RPM
Max. Torque: 780 N.m @ 1500 RPM
Fuel System: Bosch P7100 Pump
Aspiration: TC & Air Intercooler
Emission Standard: N/A

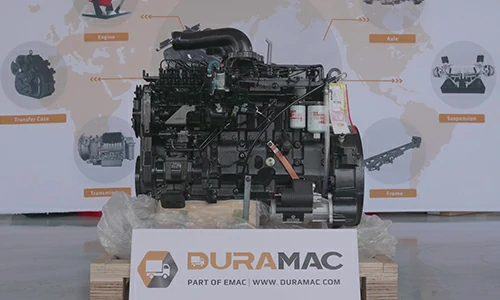

DCEC C220-10B Automotive Engine

DCEC C220-10B Automotive Engine

Rated Power: 220 HP @ 2400 RPM
Max. Torque: 780 N.m @ 1500 RPM
Fuel System: BYC PB Pump
Aspiration: TC & Air Intercooler
Emission Standard: N/A

DCEC C230-10 Automotive Engine

DCEC C230-10 Automotive Engine

Rated Power: 230 BHP @ 2400 RPM
Max. Torque: 800 N.m @ 1500 RPM
Fuel System: BYC PB Pump
Aspiration: TC & Air Intercooler
Emission Standard: N/A

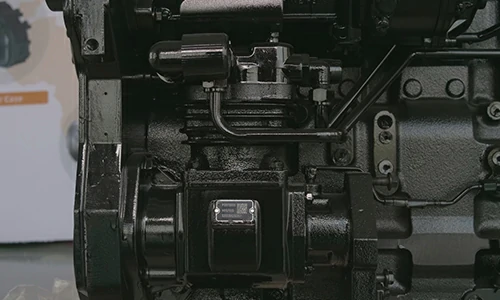

DCEC C230-20 Automotive Engine

DCEC C230-20 Automotive Engine

Rated Power: 296 BHP @ 2200 RPM
Max. Torque: 1125 N.m @ 1400 RPM
Fuel System: Bosch P 7100 Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

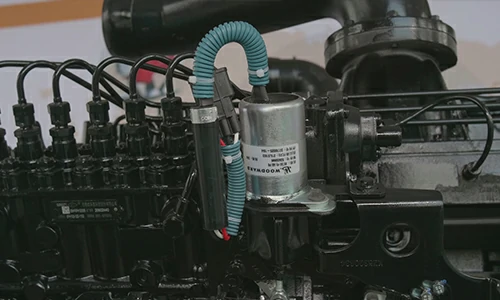

DCEC C240-10 Automotive Engine

DCEC C240-10 Automotive Engine

Rated Power: 240 BHP @ 2400 RPM
Max. Torque: 880 N.m @ 1500 RPM
Fuel System: BYC PB Pump
Aspiration: TC & Air Intercooler
Emission Standard: N/A

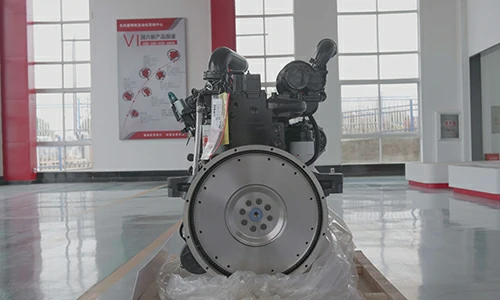

DCEC C245-20A Automotive Engine

DCEC C245-20A Automotive Engine

Rated Power: 241 BHP @ 2400 RPM
Max. Torque: 1025 N.m @ 1400 RPM
Fuel System: Bosch P7100 Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC C245-20B Automotive Engine

DCEC C245-20B Automotive Engine

Rated Power: 243 HP @ 2200 RPM
Max. Torque: 1043 N.m @ 1400 RPM
Fuel System: Bosch PW 2000 Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

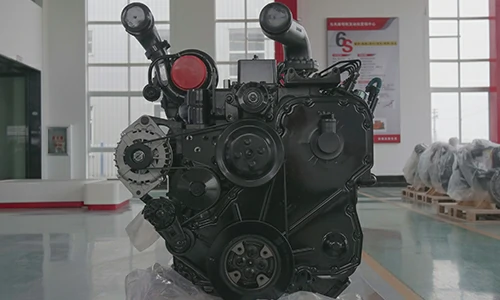

DCEC C260-20 Automotive Engine

DCEC C260-20 Automotive Engine

Rated Power: 260 HP @ 2500 RPM
Max. Torque: 1025 N.m @ 1300 RPM
Fuel System: BYC P 7100 Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

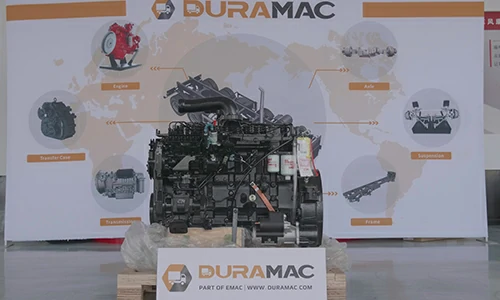

DCEC C260-33 Automotive Engine

DCEC C260-33 Automotive Engine

Rated Power: 260 HP @ 2200 RPM
Max. Torque: 1025 N.m @ 1400 RPM
Fuel System: Weifu PH Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

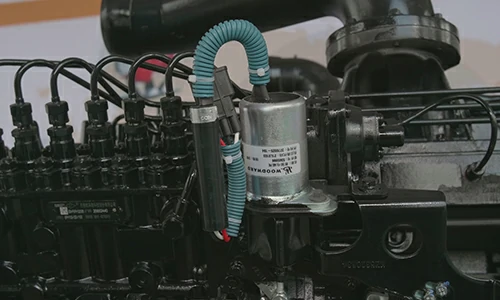

DCEC C280-20 Automotive Engine

DCEC C280-20 Automotive Engine

Rated Power: 280 HP @ 2200 RPM
Max. Torque: 1125 N.m @ 1400 RPM
Fuel System: Weifu PW 2000 Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

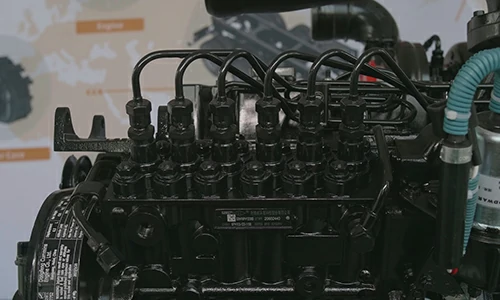

DCEC C300-20B Automotive Engine

DCEC C300-20B Automotive Engine

Rated Power: 300 HP @ 2200 RPM
Max. Torque: 1125 N.m @ 1200 RPM
Fuel System: Weifu PW 2000 Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

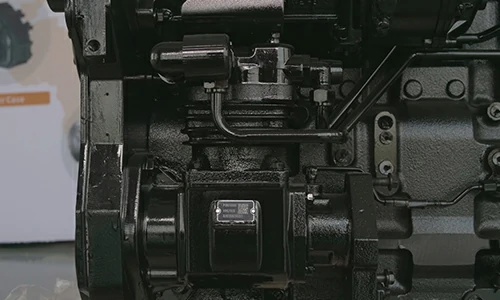

DCEC C300-20A Automotive Engine

DCEC C300-20A Automotive Engine

Rated Power: 300 HP @ 2200 RPM
Max. Torque: 1125 N.m @ 1400 RPM
Fuel System: Bosch P 7100 Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

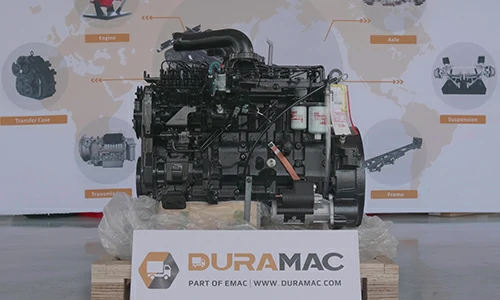

DCEC C325-20 Automotive Engine

DCEC C325-20 Automotive Engine

Rated Power: 325 HP @ 2200 RPM
Max. Torque: 1175 N.m @ 1400 RPM
Fuel System: Bosch P 7100 Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC L300-20 Automotive Engine

DCEC L300-20 Automotive Engine

Rated Power: 300 HP @ 2200 RPM
Max. Torque: 1180 N.m @ 1400 RPM
Fuel System: Bosch P7100 Pump
Aspiration: TC & Intercooler
Emission Standard: N/A

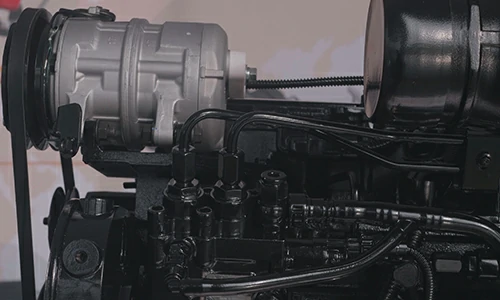

DCEC L325-20 Automotive Engine

DCEC L325-20 Automotive Engine

Rated Power: 325 HP @ 2200 RPM
Max. Torque: 1230 N.m @ 1400 RPM
Fuel System: Bosch P7100 Pump
Aspiration: TC & Intercooler
Emission Standard: N/A

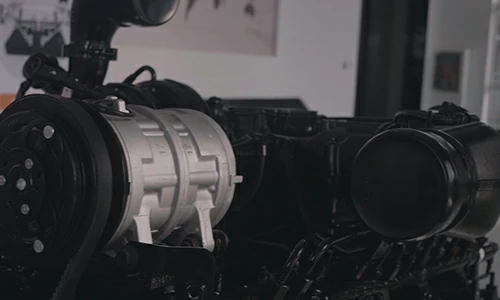

DCEC L340-20 Automotive Engine

DCEC L340-20 Automotive Engine

Rated Power: 340 HP @ 2200 RPM
Max. Torque: 1350 N.m @ 1400 RPM
Fuel System: Bosch P7100 Pump
Aspiration: TC & Intercooler
Emission Standard: N/A

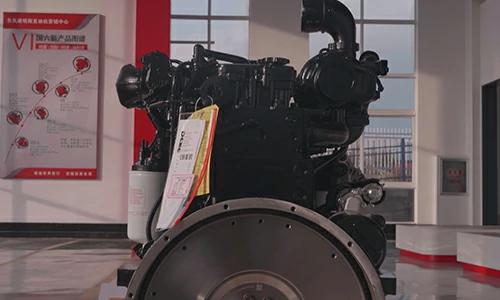

DCEC L340-30 Automotive Engine

DCEC L340-30 Automotive Engine

Rated Power: 340 HP @ 2200 RPM
Max. Torque: 1350 N.m @ 1400 RPM
Fuel System: Weifu PH Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

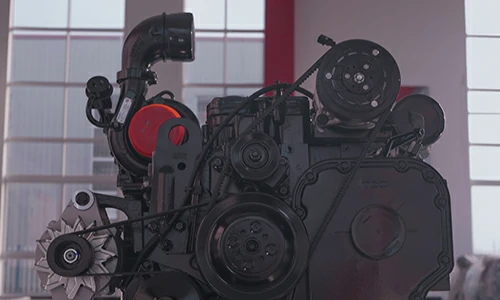

DCEC L360-20 Automotive Engine

DCEC L360-20 Automotive Engine

Rated Power: 360 HP @ 2200 RPM
Max. Torque: 1480 N.m @ 1400 RPM
Fuel System: Bosch P7100 Pump / RQV-K
Aspiration: TC & Intercooler
Emission Standard: N/A

DCEC L360-30 Automotive Engine

DCEC L360-30 Automotive Engine

Rated Power: 360 HP @ 2200 RPM
Max. Torque: 1480 N.m @ 1400 RPM
Fuel System: Weifu PH Pump / RQV-K
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

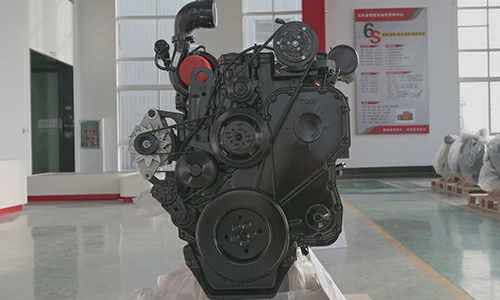

DCEC L375-30 Automotive Engine

DCEC L375-30 Automotive Engine

Rated Power: 375 HP @ 2200 RPM
Max. Torque: 1480 N.m @ 1400 RPM
Fuel System: Bosch P7100 Pump / RQV-K
Aspiration: TC & Intercooler
Emission Standard: N/A

DCEC ISF2.8s3129T Automotive Engine

DCEC ISF2.8s3129T Automotive Engine

Rated Power: 130 HP @ 3200 RPM
Max. Torque: 310 N.m @ 1600 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air Intercooler
Emission Standard: Euro III

DCEC ISF2.8s4129T Automotive Engine

DCEC ISF2.8s4129T Automotive Engine

Rated Power: 130 HP @ 3200 RPM
Max. Torque: 310 N.m @ 1600 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air Intercooler
Emission Standard: Euro IV

DCEC ISF2.8s4148T Automotive Engine

DCEC ISF2.8s4148T Automotive Engine

Rated Power: 150 HP @ 3200 RPM
Max. Torque: 310 N.m @ 1600 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air Intercooler
Emission Standard: Euro IV

DCEC ISF3.8s3154 Automotive Engine

DCEC ISF3.8s3154 Automotive Engine

Rated Power: 153 HP @ 2600 RPM
Max. Torque: 500 N.m @ 1200-1900 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air Intercooler
Emission Standard: China Stage III

DCEC ISF3.8e4R168 Automotive Engine

DCEC ISF3.8e4R168 Automotive Engine

Rated Power: 168 HP @ 2600 RPM
Max. Torque: 600 N.m @ 1300-1700 RPM
Fuel System: Denso HPCR
Aspiration: TC & Air Intercooler
Emission Standard: Euro IV

DCEC ISDe140 30 Automotive Engine

DCEC ISDe140 30 Automotive Engine

Rated Power: 103 kW @ 2500 rpm
Max. Torque: 140 Ps @ 2500 rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

DCEC ISDe140 41 Automotive Engine

DCEC ISDe140 41 Automotive Engine

Rated Power: 103kW@2300rpm
Max. Torque: 550N.m@1100~1600rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

DCEC ISD140 51 Automotive Engine

DCEC ISD140 51 Automotive Engine

Rated Power: 103 kW @ 2300 rpm
Max. Torque: 550 N.m @ 1100-1600rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

DCEC ISDe160 30 Automotive Engine

DCEC ISDe160 30 Automotive Engine

Rated Power: 118 kW @ 2700 rpm
Max. Torque: 500 N.m @ 1400 rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

DCEC ISDe160-30A Automotive Engine

DCEC ISDe160-30A Automotive Engine

Rated Power: 160 HP @ 2700 RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration:Turbocharged & Air-Air Intercooler
Emission Standard: EU Stage III

DCEC ISDe160-30B Automotive Engine

DCEC ISDe160-30B Automotive Engine

Rated Power: 160 HP @ 2700 RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration:Turbocharged & Air-Air Intercooler
Emission Standard: EU Stage III

DCEC ISDe160 31 Automotive Engine

DCEC ISDe160 31 Automotive Engine

Rated Power: 118kW@2500rpm
Max. Torque: 600N.m@1200rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

DCEC ISDe160 41 Automotive Engine

DCEC ISDe160 41 Automotive Engine

Rated Power: 118kW@2300rpm
Max. Torque: 600N.m@1100~1600rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

DCEC ISD160 51 Automotive Engine

DCEC ISD160 51 Automotive Engine

Rated Power: 118 kW @ 2300 rpm
Max. Torque: 600 N.m @ 1100-1600rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

DCEC ISDe180 30 Automotive Engine

DCEC ISDe180 30 Automotive Engine

Rated Power: 136 kW @ 2500 RPM
Max. Torque: 650 N.m @ 1400 RPM
Fuel System: HPCR
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: Country III

DCEC ISDe180-30 Automotive Engine

DCEC ISDe180-30 Automotive Engine

Rated Power: 185 HP @ 2500 RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration:Turbocharged & Air-Air Intercooler
Emission Standard: EU Stage III

DCEC ISDe180 30-II Automotive Engine

DCEC ISDe180 30-II Automotive Engine

Rated Power: 136 kW @ 2500 rpm
Max. Torque: 185 PS @ 2500 rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

DCEC ISDe180 40 Automotive Engine

DCEC ISDe180 40 Automotive Engine

Rated Power: 132kW @2500rpm
Max. Torque: 700N.m @1500rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

DCEC ISDe185-31 Automotive Engine

DCEC ISDe185-31 Automotive Engine

Rated Power: 185 HP @ 2500 RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration:Turbocharged & Air-Air Intercooler
Emission Standard: EU Stage III

DCEC ISDe185 41 Automotive Engine

DCEC ISDe185 41 Automotive Engine

Rated Power: 136kW@2300rpm
Max. Torque: 700N.m@1200~1600rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

DCEC ISD185 51 Automotive Engine

DCEC ISD185 51 Automotive Engine

Rated Power: 136 kW @ 2300 rpm
Max. Torque: 700 N.m @ 1200-1800rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

DCEC ISDe285-50 Automotive Engine

DCEC ISDe285-50 Automotive Engine

Rated Power: 285 HP @ 2500 RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration:Turbocharged & Air-Air Intercooler
Emission Standard: Euro V

DCEC ISLe270 30 Automotive Engine

DCEC ISLe270 30 Automotive Engine

Rated Power: 201 kW @ 2100 rpm
Max. Torque: 270 PS @ 2100 rpm
Fuel System: CCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

DCEC ISLe290 30 Automotive Engine

DCEC ISLe290 30 Automotive Engine

Rated Power: 213 kW @ 2100 rpm
Max. Torque: 1050 N.m @ 1000 – 1900 rpm
Fuel System: CCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

DCEC ISLe290-30  Automotive Engine

DCEC ISLe290-30 Automotive Engine

Rated Power: 216 kW @ 2100 RPM
Max.Torque: 1050 N.m @ 1000-1900 RPM
Fuel System: CMS Common Rail System
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC ISLe290 40 Automotive Engine

DCEC ISLe290 40 Automotive Engine

Rated Power: 213 kW @ 2100 RPM
Max. Torque: 1050 N.m @ 1400 RPM
Fuel System: CCR
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: EURO 4

DCEC ISLe290 50 Automotive Engine

DCEC ISLe290 50 Automotive Engine

Rated Power: 213 kW @ 2100 RPM
Max. Torque: 1055N.m@1100-1700rpm
Fuel System: CCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

DCEC ISLe292 40 Automotive Engine

DCEC ISLe292 40 Automotive Engine

Rated Power: 215 kW @ 2100 RPM
Max. Torque: 1200 N.m @ 1400 RPM
Fuel System: CCR
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: EURO 4

DCEC ISLe292 50 Automotive Engine

DCEC ISLe292 50 Automotive Engine

Rated Power: 213 kW @ 2100 RPM
Max. Torque: 1055N.m@1100-1700rpm
Fuel System: CCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

DCEC ISLe310 30 Automotive Engine

DCEC ISLe310 30 Automotive Engine

Rated Power: 228 kW @ 2100 rpm
Max. Torque: 1200 N.m @ 1000 – 1700 rpm
Fuel System: CCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

DCEC ISLe310-30 Automotive Engine

DCEC ISLe310-30 Automotive Engine

Rated Power: 231 kW @ 2100 RPM
Max.Torque: 1050 N.m @ 1000-1900 RPM
Fuel System: CMS Common Rail System
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC ISLe315 40 Automotive Engine

DCEC ISLe315 40 Automotive Engine

Rated Power: 232 kW @ 2100 RPM
Max. Torque: 1200 N.m @ 1400 RPM
Fuel System: CCR
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: EURO 4

DCEC ISLe315 50 Automotive Engine

DCEC ISLe315 50 Automotive Engine

Rated Power: 217 kW @ 2100 RPM
Max. Torque: 1055 N.m @1100-1700 RPM
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

DCEC ISLe325 40 Automotive Engine

DCEC ISLe325 40 Automotive Engine

Rated Power: 239 kW @ 2100 RPM
Max. Torque: 1350 N.m @ 1400 RPM
Fuel System: CCR
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: EURO 4

DCEC ISLe325 50 Automotive Engine

DCEC ISLe325 50 Automotive Engine

Rated Power: 242 kW @ 2100 RPM
Max. Torque: 1350 N.m @1100-1500 RPM
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

DCEC ISLe340 30 Automotive Engine

DCEC ISLe340 30 Automotive Engine

Rated Power: 250 kW @ 2100 rpm
Max. Torque: 1425 N.m @ 1100 – 1400 rpm
Fuel System: CCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

DCEC ISLe340-30 Automotive Engine

DCEC ISLe340-30 Automotive Engine

Rated Power: 254 kW @ 2100 RPM
Max.Torque: 1050 N.m @ 1000-1900 RPM
Fuel System: CMS Common Rail System
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC ISLe340 40 Automotive Engine

DCEC ISLe340 40 Automotive Engine

Rated Power: 250 kW @ 2100 RPM
Max. Torque: 1425 N.m @ 1400 RPM
Fuel System: CCR
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: EURO 4

DCEC ISLe340 50 Automotive Engine

DCEC ISLe340 50 Automotive Engine

Rated Power: 254 kW @ 2100 RPM
Max. Torque: 1500N.m@1200-1400rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

DCEC ISLe360 40 Automotive Engine

DCEC ISLe360 40 Automotive Engine

Rated Power: 265 kW @ 2100 RPM
Max. Torque: 1550 N.m @ 1400 RPM
Fuel System: CCR
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: EURO 4

DCEC ISLe360 50 Automotive Engine

DCEC ISLe360 50 Automotive Engine

Rated Power: 268 kW @ 2100 RPM
Max. Torque: 1550N.m@1100-1400rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

DCEC ISLe375 30 Automotive Engine

DCEC ISLe375 30 Automotive Engine

Rated Power: 275 kW @ 2100 RPM
Max. Torque: 1550 N.m @ 1100 – 1400 RPM
Fuel System: CCR
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: EURO 3

DCEC ISLe375-30 Automotive Engine

DCEC ISLe375-30 Automotive Engine

Rated Power: 280 kW @ 2100 RPM
Max.Torque: 1050 N.m @ 1000-1900 RPM
Fuel System: CMS Common Rail System
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC ISLe375 30-II Automotive Engine

DCEC ISLe375 30-II Automotive Engine

Rated Power: 275 kW @ 2100 RPM
Max. Torque: 1550 N.m @ 1100 – 1400 RPM
Fuel System: CCR
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: EURO 3

DCEC ISLe375 40 Automotive Engine

DCEC ISLe375 40 Automotive Engine

Rated Power: 275 kW @ 2100 RPM
Max. Torque: 1550 N.m @ 1400 RPM
Fuel System: CCR
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: EURO 4

DCEC ISLe375 50 Automotive Engine

DCEC ISLe375 50 Automotive Engine

Rated Power: 280 kW @ 2100 RPM
Max. Torque: 1550N.m@1100-1500rpm
Fuel System: CCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

DCEC ISLe380 50 Automotive Engine

DCEC ISLe380 50 Automotive Engine

Rated Power: 283 kW @ 2100 RPM
Max. Torque: 1700N.m@1300-1400rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

DCEC ISLe400 40 Automotive Engine

DCEC ISLe400 40 Automotive Engine

Rated Power: 294 kW @ 2100 RPM
Max. Torque: 1700 N.m @ 1400 RPM
Fuel System: CCR
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: EURO 4

DCEC ISL9.5-400E40A Automotive Engine

DCEC ISL9.5-400E40A Automotive Engine

Rated Power: 395 HP @ 1900 RPM
Max. Torque: 1710 N.m @ 1200-1400 RPM
Fuel System: CCR
Aspiration: TC & Air-Air Intercooler
Emission Standard:National level 4

DCEC LK290 33 Automotive Engine

DCEC LK290 33 Automotive Engine

Rated Power: 221 Kw @ 2000 RPM
Max. Torque: 1350 N.m @ 1100 RPM
Fuel System: HPCR
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: EURO V

DCEC LK340 33 Automotive Engine

DCEC LK340 33 Automotive Engine

Rated Power: 256 kW @ 2000 RPM
Max. Torque: 1550 N.m @ 1200-1300 RPM
Fuel System: Weifu PH pump
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: EURO V

DCEC LK340 33-II Automotive Engine

DCEC LK340 33-II Automotive Engine

Rated Power: 252 kW @ 2000 RPM
Max. Torque: 1500 N.m @ 1300 RPM
Fuel System: Weifu PH pump
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: EURO V

DCEC ISL9.5-292E40A Automotive Engine

DCEC ISL9.5-292E40A Automotive Engine

Rated Power: 215 kW @ 1900 RPM
Max. Torque: 1200 N.m @ 1100 – 1700 RPM
Fuel System: HPCR
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: Country VI

DCEC ISL9.5-292E40A-II Automotive Engine

DCEC ISL9.5-292E40A-II Automotive Engine

Rated Power: 215 kW @1900 RPM
Max. Torque: 1200 N.m @ 1100-1700 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: Country IV

DCEC ISL9.5-292E42A Automotive Engine

DCEC ISL9.5-292E42A Automotive Engine

Rated Power: 215 kW @1900 RPM
Max. Torque: 1200 N.m @ 1100-1700 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: Country IV

DCEC ISL9.5-292E43A Automotive Engine

DCEC ISL9.5-292E43A Automotive Engine

Rated Power: 215 kW @ 1900 RPM
Max. Torque: 1400 N.m @ 1200 – 1700 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: Country VI

DCEC ISL9.5-315E40A Automotive Engine

DCEC ISL9.5-315E40A Automotive Engine

Rated Power: 232 kW @ 1900 RPM
Max. Torque: 1250 N.m @ 1100 – 1700 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: Country VI

DCEC ISL9.5-315E40A-II Automotive Engine

DCEC ISL9.5-315E40A-II Automotive Engine

Rated Power: 232 kW @1900 RPM
Max. Torque: 1250 N.m @ 1100-1700 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: Country IV

DCEC ISL9.5-315E43A Automotive Engine

DCEC ISL9.5-315E43A Automotive Engine

Rated Power: 262 kW @ 1900 RPM
Max. Torque: 1500 N.m @ 1200 – 1700 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: Country VI

DCEC ISL9.5-325E40A Automotive Engine

DCEC ISL9.5-325E40A Automotive Engine

Rated Power: 239 kW @1900 RPM
Max. Torque: 1400 N.m @ 1100-1500 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: Country IV

DCEC ISL9.5-340E40A Automotive Engine

DCEC ISL9.5-340E40A Automotive Engine

Rated Power: 250 kW @ 1900 RPM
Max. Torque: 1500 N.m @ 1100 – 1500 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: Country VI

DCEC ISL9.5-340E40A-II Automotive Engine

DCEC ISL9.5-340E40A-II Automotive Engine

Rated Power: 250 kW @1900 RPM
Max. Torque: 1500 N.m @ 1100-1500 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: Country IV

DCEC ISL9.5-340E41A Automotive Engine

DCEC ISL9.5-340E41A Automotive Engine

Rated Power: 251 kW @ 1900 RPM
Max. Torque: 1500 N.m @ 1200 – 1900 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: Country VI

DCEC ISL9.5-340E42A Automotive Engine

DCEC ISL9.5-340E42A Automotive Engine

Rated Power: 250 kW @1900 RPM
Max. Torque: 1500 N.m @ 1100-1500 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: Country IV

DCEC ISL9.5-340E43A Automotive Engine

DCEC ISL9.5-340E43A Automotive Engine

Rated Power: 251 kW @ 1900 RPM
Max. Torque: 1620 N.m @ 1200 – 1700 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: Country VI

DCEC ISL9.5-350E40A Automotive Engine

DCEC ISL9.5-350E40A Automotive Engine

Rated Power: 259 kW @ 1900 RPM
Max. Torque: 1500 N.m @ 1100 – 1600 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: Country VI

DCEC ISL9.5-350E40A-II Automotive Engine

DCEC ISL9.5-350E40A-II Automotive Engine

Rated Power: 258 kW @1900 RPM
Max. Torque: 1500 N.m @ 1100-1600 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: Country IV

DCEC ISL9.5-360E40A Automotive Engine

DCEC ISL9.5-360E40A Automotive Engine

Rated Power: 268 kW @ 1900 RPM
Max. Torque: 1600 N.m @ 1200 – 1500 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: Country VI

DCEC ISL9.5-375E40A Automotive Engine

DCEC ISL9.5-375E40A Automotive Engine

Rated Power: 276 kW @ 1900 RPM
Max. Torque: 1620 N.m @ 1200 – 1500 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: Country VI

DCEC ISL9.5-375E40A-II Automotive Engine

DCEC ISL9.5-375E40A-II Automotive Engine

Rated Power: 276 kW @1900 RPM
Max. Torque: 1620 N.m @ 1200-1500 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: Country IV

DCEC ISL9.5-375E42A Automotive Engine

DCEC ISL9.5-375E42A Automotive Engine

Rated Power: 276 kW @1900 RPM
Max. Torque: 1700 N.m @ 1200-1500 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: Country IV

DCEC ISL9.5-385E40A Automotive Engine

DCEC ISL9.5-385E40A Automotive Engine

Rated Power: 285 kW @ 1900 RPM
Max. Torque: 1600 N.m @ 1100 – 1700 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: Country VI

DCEC ISL9.5-385E40A-II Automotive Engine

DCEC ISL9.5-385E40A-II Automotive Engine

Rated Power: 285 kW @1900 RPM
Max. Torque: 1600 N.m @ 1100-1500 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: Country IV

DCEC ISL9.5-385E41A Automotive Engine

DCEC ISL9.5-385E41A Automotive Engine

Rated Power: 285 kW @ 1900 RPM
Max. Torque: 1600 N.m @ 1200 – 1900 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: Country VI

DCEC ISL9.5-385E51A Automotive Engine

DCEC ISL9.5-385E51A Automotive Engine

Rated Power: 378 HP @ 1900 RPM
Max. Torque: 1600 N.m @ 1300 RPM
Fuel System: CFSW(HPCR)
Aspiration: TC & Air-Air Intercooler
Emission Standard:National level 4

DCEC ISL9.5-400E40A-II Automotive Engine

DCEC ISL9.5-400E40A-II Automotive Engine

Rated Power: 295 kW @1900 RPM
Max. Torque: 1710 N.m @ 1200-1400 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: Country IV

DCEC ISL9.5-425E40A Automotive Engine

DCEC ISL9.5-425E40A Automotive Engine

Rated Power: 313 kW @1900 RPM
Max. Torque: 1810 N.m @ 1300 – 1400 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: Country IV

XCEC ISMe420-30 Automotive Engine

XCEC ISMe420-30 Automotive Engine

Rated Power: 420 HP @ 1900 RPM
Fuel Pump: Celect Electronic
Governor: N/A
Aspiration: TC & Aftercooled
Emission Standard: China Stage III

DCEC ISZ425-40A Automotive Engine

DCEC ISZ425-40A Automotive Engine

Rated Power: 425 HP @ 2100 RPM
Max.Torque: 1966 N.m @ 1600 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air Intercooler
Emission Standard: Euro IV

DCEC ISZ425-40B Automotive Engine

DCEC ISZ425-40B Automotive Engine

Rated Power: 425 HP @ 2100 RPM
Max.Torque: 1966 N.m @ 1200 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air Intercooler
Emission Standard: Euro IV

DCEC ISZ425-41 Automotive Engine

DCEC ISZ425-41 Automotive Engine

Rated Power: 424 HP @ 2100 RPM
Max.Torque: 2016 N.m @ 1000-1400 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro IV

DCEC ISZ450-40A Automotive Engine

DCEC ISZ450-40A Automotive Engine

Rated Power: 456 HP @ 2100 RPM
Max.Torque: 2237 N.m @ 1600 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air Intercooler
Emission Standard: Euro IV

DCEC ISZ450-40B Automotive Engine

DCEC ISZ450-40B Automotive Engine

Rated Power: 450 HP @ 2100 RPM
Max.Torque: 2237 N.m @ 1200 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro IV

DCEC ISZ450-41 Automotive Engine

DCEC ISZ450-41 Automotive Engine

Rated Power: 450 HP @ 2100 RPM
Max.Torque: 2338 N.m @ 1000-1300 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro IV

DCEC ISZ460-51 Automotive Engine

DCEC ISZ460-51 Automotive Engine

Rated Power: 450 HP @ 2100 RPM
Max.Torque: 2338 N.m @ 1000-1300 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro IV

DCEC ISZ520-41 Automotive Engine

DCEC ISZ520-41 Automotive Engine

Rated Power: 520 HP @ 1900 RPM
Max.Torque: 2458 N.m @ 1100-1300 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro IV

DCEC ISZ525-40A Automotive Engine

DCEC ISZ525-40A Automotive Engine

Rated Power: 525 HP @ 2100 RPM
Max.Torque: 2509 N.m @ 1600 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air Intercooler
Emission Standard: Euro IV

DCEC ISZ525-40B Automotive Engine

DCEC ISZ525-40B Automotive Engine

Rated Power: 525 HP @ 2100 RPM
Max.Torque: 2508 N.m @ 1200 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro IV

DCEC ISZ525-40C Automotive Engine

DCEC ISZ525-40C Automotive Engine

Rated Power: 525 HP @ 2100 RPM
Max.Torque: 2508 N.m @ 1200 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro IV

Industrial Engine

DCEC Indsutrial Engine Catalogue

Series

Model

4BT3.9-C80 | 80HP @ 2000RPM4BT3.9-C100 | 100 HP @ 2400 RPM4BT3.9-C105 | 103 HP @ 2800 RPM4BT3.9-C110 | 110 HP @ 2600 RPM
4BTA3.9-C80 | 80 HP @ 2200 RPM4BTA3.9-C100 | 100 HP @ 2200 RPM4BTA3.9-C110 | 110 HP @ 2200 RPM4BTA3.9-C125 | 125 HP @ 2200 RPM
4BTA3.9-C130 | 130 HP @ 2500 RPM4BTAA3.9-C110 | 110 HP @ 2200 RPM4BTAA3.9-C125 | 125 HP @ 2200 RPM
6BT5.9-C115 | 115 HP @ 2000 RPM6BT5.9-C120 | 120 HP @ 2200 RPM6BT5.9-C125 | 125 HP @ 2400 RPM6BT5.9-C130 | 130 HP @ 2200 RPM
6BT5.9-C135 | 135 HP @ 2000 RPM6BT5.9-C145 | 145 HP @ 2100 RPM6BT5.9-C150A | 150 HP @ 2500 RPM6BTA5.9-C150 | 150 HP @ 2200 RPM
6BTA5.9-C155 | 155 HP @ 2000 RPM6BTA5.9-C170A | 170 HP @ 2300 RPM6BTA5.9-C175 | 175 HP @ 2100 RPM6BTA5.9-C180 | 180 HP @ 2500 RPM
6BTAA5.9-C130 | 130 HP @ 2200 RPM6BTAA5.9-C160 | 160 HP @ 2200 RPM6BTAA5.9-C170 | 170 HP @ 2200 RPM
6CTA8.3-C145 | 145 HP @ 1900 RPM6CTA8.3-C195 | 192 HP @ 1900 RPM6CTA8.3-C212 | 212 HP @ 2200 RPM6CTA8.3-C215 | 215 HP @ 2200 RPM
6CTA8.3-C230 | 230 HP @ 2200 RPM6CTA8.3-C240 | 240 HP @ 2200 RPM6CTA8.3-C260 | 260 HP @ 2200 RPM6CTAA8.3-C215 | 215 HP @ 2200 RPM
6CTAA8.3-C260 | 260 HP @ 2200 RPM6CTAA8.3-C280 | 280 HP @ 2200 RPM
6LTAA8.9-C220 | 220 HP @ 2200 RPM6LTAA8.9-C240 | 240 HP @ 2200 RPM6LTAA8.9-C300 | 300 HP @ 2000 RPM6LTAA8.9-C325 | 320 HP @ 2200 RPM
6LTAA8.9-C360 | 320 HP @ 2200 RPM
QSB3.9-C110-30 | 109 HP @ 2200 RPMQSB3.9-C125-30 | 125 HP @ 2200 RPMQSB3.9-C130-31 | 129 HP @ 2500 RPM
QSB4.5-C109 | 109 HP @ 2000 RPMQSB4.5-C110A | 110 HP @ 2200 RPMQSB4.5-C110B | 110 HP @ 2200 RPMQSB4.5-C110C | 110 HP @ 2500 RPM
QSB4.5-C110D | 110 HP @ 2200 RPMQSB4.5-C121 | 121 HP @ 2200 RPMQSB4.5-C128 | 128 HP @ 2200 RPMQSB4.5-C130A | 130 HP @ 2200 RPM
QSB4.5-C130B | 130 HP @ 2000 RPMQSB4.5-C130C | 130 HP @ 1800 RPMQSB4.5-C130D | 130 HP @ 2300 RPMQSB4.5-C132 | 132 HP @ 2000 RPM
QSB4.5-C139 | 139 HP @ 2000 RPMQSB4.5-C140 | 139 HP @ 2000 RPMQSB4.5-C148 | 148 HP @ 2300 RPMQSB4.5-C160A | 160 HP @ 2500 RPM
QSB4.5-C160B | 160 HP @ 2400 RPMQSB4.5-C160C | 160 HP @ 2300 RPMQSB4.5-C160D | 160 HP @ 2200 RPM
QSB5.9-C130-30 | 130 HP @ 2200 RPMQSB5.9-C150-30 | 152 HP @ 2000 RPMQSB5.9-C160-30 | 160 HP @ 2200 RPMQSB5.9-C180-30 | 180 HP @ 2200 RPM
QSB5.9-C180-31 | 180 HP @ 2400 RPMQSB5.9-C210-30 | 210 HP @ 2200 RPM
QSB6.7-C130 | 133 HP @ 2200 RPMQSB6.7-C133 | 133 HP @ 2200 RPMQSB6.7-C170 | 170 HP @ 2000 RPMQSB6.7-C190 | 190 HP @ 2200 RPM
QSB6.7-C220 | 220 HP @ 2200 RPMQSB6.7-C260 | 260 HP @ 2200 RPM
QSC8.3-C240-30 | 152 HP @ 2000 RPMQSC8.3-C260-30 | 260 HP @ 2200 RPM
QSF2.8-C60 | 60 HP @ 2200 RPMQSF2.8-C72 | 72 HP @ 2400 RPM
QSF3.8 T3-86 | 115 HP @ 2200 RPM
QSL8.9-C220-III | 220 HP @ 2200 RPMQSL8.9-C325-III | 325 HP @ 2100 RPMQSL8.9-C340-III | 340 HP @ 2100 RPMQSL8.9-C360-III | 360 HP @ 2100 RPM
QSM11-C290 | 290 HP @ 2100 RPMQSM11-C300 | 300 HP @ 2100 RPMQSM11-C315 | 315 HP @ 2100 RPMQSM11-C335 | 335 HP @ 2100 RPM
QSM11-C340 | 340 HP @ 1800 RPMQSM11-C350A | 350 HP @ 2100 RPMQSM11-C350B | 350 HP @ 2000 RPMQSM11-C360A | 360 HP @ 1800 RPM
QSM11-C360B | 360 HP @ 2100 RPMQSM11-C375 | 375 HP @ 2100 RPMQSM11-C400 | 400 HP @ 2100 RPM
QSM15 | 755 HP @ 2100 RPM
QSZ13-C380-III | 380 HP @ 1900 RPMQSZ13-C400-III | 400 HP @ 1900 RPMQSZ13-C425-II | 425 HP @ 1900 RPMQSZ13-C425-III | 425 HP @ 1900 RPM
QSZ13-C450-II | 450 HP @ 1900 RPMQSZ13-C450-III | 450 HP @ 1900 RPMQSZ13-C475-II | 475 HP @ 1900 RPMQSZ13-C475-III | 475 HP @ 1900 RPM

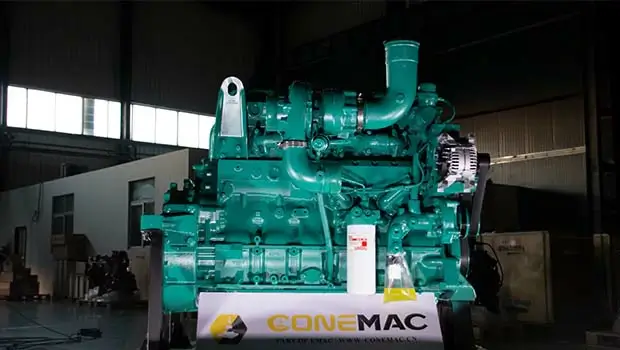

QSZ13-C500-II | 500 HP @ 1900 RPMQSZ13-C500-III | 500 HP @ 1900 RPMQSZ13-C525-II | 525 HP @ 1900 RPMQSZ13-C550-II | 550 HP @ 1900 RPM
QSZ13-C575-II | 575 HP @ 1900 RPM
QSZ14-460-30 | 460 HP @ 2100 RPMQSZ14-490-30 | 490 HP @ 2100 RPMQSZ14-540-30 | 540 HP @ 2100 RPMQSZ14-560-30 | 560 HP @ 2100 RPM
QSZ14-560-31 | 560 HP @ 2100 RPM
M15CS4-560C | 560 HP @ 2100 RPMM15CS4-600C | 600 HP @ 2100 RPMM15CS4-650C | 650 HP @ 2100 RPMM15CS4-775C | 775 HP @ 2100 RPM
——END——

DCEC 4BT3.9-C80 Industrial Engine

DCEC 4BT3.9-C80 Industrial Engine

Rated Power: 80 HP @ 2000 RPM
Max. Torque: 330 N.m @ 1500 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N / A

DCEC 4BT3.9-C100 Industrial Engine

DCEC 4BT3.9-C100 Industrial Engine

Rated Power: 100 HP @ 2400 RPM
Max. Torque: 330 N.m @ 1600 RPM
Fuel System: Weifu PW Pump / RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

DCEC 4BT3.9-C105 Industrial Engine

DCEC 4BT3.9-C105 Industrial Engine

Rated Power: 103 HP @ 2800 RPM
Max. Torque: 330 N.m @ 1600 RPM
Fuel System: Weifu A Pump / RSV Mech.
Aspiration: Turbocharged
Emission Standard: N / A

DCEC 4BT3.9-C110 Industrial Engine

DCEC 4BT3.9-C110 Industrial Engine

Rated Power: 110 HP @ 2600 RPM
Max. Torque: 330 N.m @ 1600 RPM
Fuel System: Weifu A Pump / RSV Mech.
Aspiration: Turbocharged
Emission Standard: N / A

DCEC 4BTA3.9-C80 Industrial Engine

DCEC 4BTA3.9-C80 Industrial Engine

Rated Power: 80 HP @ 2200 RPM
Max. Torque: 360 N.m @ 1400 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: EU Stage I

4BTA3.9-C100 Industrial Engine

4BTA3.9-C100 Industrial Engine

Rated Power: 100 HP @ 2200 RPM
Max. Torque: 410 N·m @ 1500 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: SEPA STAGE I

DCEC 4BTA3.9-C110 Industrial Engine

DCEC 4BTA3.9-C110 Industrial Engine

Rated Power: 110 HP @ 2200 RPM
Max. Torque: 460 N.m @ 1500 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: N / A

DCEC 4BTA3.9-C125 Industrial Engine

DCEC 4BTA3.9-C125 Industrial Engine

Rated Power: 125 HP @ 2200 RPM
Max. Torque: 475 N.m @ 1500 RPM
Fuel System: Weifu PW2000 / RQV-K Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: N / A

DCEC 4BTA3.9-C130 Industrial Engine

DCEC 4BTA3.9-C130 Industrial Engine

Rated Power: 130 HP @ 2500 RPM
Max. Torque: 475 N.m @ 1500 RPM
Fuel System: Weifu PW2000 / RQV-K Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: N / A

DCEC 4BTAA3.9-C110 Industrial Engine

DCEC 4BTAA3.9-C110 Industrial Engine

Rated Power: 110 HP @ 2200 RPM
Max. Torque: 500 N.m @ 1400 RPM
Fuel System:Weifu PW Pump / RSV Mech.
Aspiration:Turbocharged & Air-Air Intercooler
Emission Standard: CHINA II

DCEC 4BTAA3.9-C125 Industrial Engine

DCEC 4BTAA3.9-C125 Industrial Engine

Rated Power: 125 HP @ 2200 RPM
Max. Torque: 480 N·m @ 1400 RPM
Fuel System: Weifu PW2000 / RQV-K Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: MEP STAGE II

DCEC 6BT5.9-C115 Industrial Engine

DCEC 6BT5.9-C115 Industrial Engine

Rated Power: 115 HP @ 2000 RPM
Max. Torque: 430 N.m @ 1500 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

DCEC 6BT5.9-C120 Industrial Engine

DCEC 6BT5.9-C120 Industrial Engine

Rated Power: 120 HP @ 2200 RPM
Max. Torque: 436 N.m @ 1500 RPM
Fuel System: Weifu PW Pump / RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

DCEC 6BT5.9-C125A Industrial Engine

DCEC 6BT5.9-C125A Industrial Engine

Rated Power: 125 HP @ 2400 RPM
Max. Torque: 425 N.m @ 1500 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: Euro Stage I

6BT5.9-C125B Industrial Engine

6BT5.9-C125B Industrial Engine

Rated Power: 125 HP @ 2200 RPM
Max. Torque: 540 N.m @ 1400 RPM
Fuel System: BYC PB Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: Euro Stage I

DCEC 6BT5.9-C130 Industrial Engine

DCEC 6BT5.9-C130 Industrial Engine

Rated Power: 130 HP @ 2200 RPM
Max. Torque: 560 N.m @ 1500 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: Euro Stage I

DCEC 6BT5.9-C135 Industrial Engine

DCEC 6BT5.9-C135 Industrial Engine

Rated Power: 135 HP @ 2000 RPM
Max. Torque: 570 N.m @ 1500 RPM
Fuel System: Inline-NYC A Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

DCEC 6BT5.9-C145 Industrial Engine

DCEC 6BT5.9-C145 Industrial Engine

Rated Power: 145 HP @ 2100 RPM
Max. Torque: 580 N.m @ 1500 RPM
Fuel System: Inline-NYC A Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

DCEC 6BT5.9-C150A Industrial Engine

DCEC 6BT5.9-C150A Industrial Engine

Rated Power: 150 HP @ 2500 RPM
Max. Torque: 565 N.m @ 1500 RPM
Fuel System: Inline-WEIFU A Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

DCEC 6BTA5.9-C150A Industrial Engine

DCEC 6BTA5.9-C150A Industrial Engine

Rated Power: 150 HP @ 2200 RPM
Max. Torque: 655 N.m @ 1500 RPM
Fuel System: BYC PB Pump/RSV Mech.
Aspiration: TC&Water-Air Intercooler
Emission Standard: Euro Stage I

DCEC 6BTA5.9-C155 Industrial Engine

DCEC 6BTA5.9-C155 Industrial Engine

Rated Power: 155 HP @ 2000 RPM
Max. Torque: 630 N.m @ 1400 RPM
Fuel System: Weifu AD Pump/RSV Mech.
Aspiration: TC&Water-Air Intercooler
Emission Standard: Euro Stage I

DCEC 6BTA5.9-C170A Industrial Engine

DCEC 6BTA5.9-C170A Industrial Engine

Rated Power: 170 HP @ 2300 RPM
Max. Torque: 630 N.m @ 1400 RPM
Fuel System: Weifu AD Pump/RSV Mech.
Aspiration: TC&Water-Air Intercooler
Emission Standard: Euro Stage I

6BTA5.9-C175 Industrial Engine

6BTA5.9-C175 Industrial Engine

Rated Power: 175 HP @ 2100 RPM
Max. Torque: 680 N.m @ 1500 RPM
Fuel System: Weifu AD Pump/RSV Mech.
Aspiration: TC&Water-Air Intercooler
Emission Standard: Euro Stage I

DCEC 6BTA5.9-C180 Industrial Engine

DCEC 6BTA5.9-C180 Industrial Engine

Rated Power: 180 HP @ 2500 RPM
Max. Torque: 630 N.m @ 1400-1600 RPM
Fuel System: Weifu AD Pump/RSV Mech.
Aspiration: TC&Water-Air Intercooler
Emission Standard: Euro Stage I

DCEC 6BTAA5.9-C130A Industrial Engine

DCEC 6BTAA5.9-C130A Industrial Engine

Rated Power: 130 HP @ 2200 RPM
Max. Torque: 580 N.m @ 1500 RPM
Fuel System: BYC P7100 Pump/RQV_K Mech.
Aspiration: TC&Air-Air Intercooler
Emission Standard: Euro Stage II

DCEC 6BTAA5.9-C160 Industrial Engine

DCEC 6BTAA5.9-C160 Industrial Engine

Rated Power: 160 HP @ 2200 RPM
Max. Torque: 670 N.m @ 1500 RPM
Fuel System: Weifu PW2000/RSV Mech.
Aspiration: TC&Air-Air Intercooler
Emission Standard: Euro Stage II

DCEC 6BTAA5.9-C170 Industrial Engine

DCEC 6BTAA5.9-C170 Industrial Engine

Rated Power: 170 HP @ 2200 RPM
Max. Torque: 750 N.m @ 1400 RPM
Fuel System: BYC P7100 Pump / RSV Mech.
Aspiration: TC&Air-Air Intercooler
Emission Standard: Euro Stage II

DCEC 6CTA8.3-C145 Industrial Engine

DCEC 6CTA8.3-C145 Industrial Engine

Rated Power: 145 HP @ 1900 RPM
Maximum Torque: 674 N.m @ 1300 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

DCEC 6CTA8.3-C195 Industrial Engine

DCEC 6CTA8.3-C195 Industrial Engine

Rated Power: 195 HP @ 1900 RPM
Maximum Torque: 883 N.m @ 1400 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

DCEC 6CTA8.3-C212 Industrial Engine

DCEC 6CTA8.3-C212 Industrial Engine

Rated Power: 212 HP @ 1900 RPM
Maximum Torque: 908 N.m @ 1500 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

DCEC 6CTA8.3-C215 Industrial Engine

DCEC 6CTA8.3-C215 Industrial Engine

Rated Power: 215 HP @ 2200 RPM
Maximum Torque: 693 N.m @ 2200 RPM
Fuel System: Weifu P7100 / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: EPA Tier1

DCEC 6CTA8.3-C230 Industrial Engine

DCEC 6CTA8.3-C230 Industrial Engine

Rated Power: 230 HP @ 2200 RPM
Maximum Torque: 1000 N.m @ 1500 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: N / A

DCEC 6CTA8.3-C240 Industrial Engine

DCEC 6CTA8.3-C240 Industrial Engine

Rated Power: 240 HP @ 2200 RPM
Maximum Torque: 1028 N.m @ 1500 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: EPA Tier1

DCEC 6CTA8.3-C260 Industrial Engine

DCEC 6CTA8.3-C260 Industrial Engine

Rated Power: 260 HP @ 2200 RPM
Maximum Torque: 1135 N.m @ 1500 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: N / A

DCEC 6CTAA8.3-C215 Industrial Engine

DCEC 6CTAA8.3-C215 Industrial Engine

Rated Power: 215 HP @ 2200 RPM
Maximum Torque: 980 N.m @ 1500 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: SEPA STAGE II

DCEC 6CTAA8.3-C260 Industrial Engine

DCEC 6CTAA8.3-C260 Industrial Engine

Rated Power: 260 HP @ 2200 RPM
Maximum Torque: 1100 N.m @ 1400 RPM
Fuel System: BYC P7100 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage II

DCEC 6CTAA8.3-C280 Industrial Engine

DCEC 6CTAA8.3-C280 Industrial Engine

Rated Power: 280 HP @ 2200 RPM
Maximum Torque: 1125 N.m @ 1200 RPM
Fuel System: BYC P7100 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage II

DCEC 6LTAA8.9-C220 Industrial Engine

DCEC 6LTAA8.9-C220 Industrial Engine

Rated Power: 220 HP @ 2200 RPM
Maximum Torque: 950 N·m @ 1400 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N / A

DCEC 6LTAA8.9-C240 Industrial Engine

DCEC 6LTAA8.9-C240 Industrial Engine

Rated Power: 240 HP @ 2200 RPM
Maximum Torque: 1180 N·m @ 1400 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N / A

DCEC 6LTAA8.9-C300 Industrial Engine

DCEC 6LTAA8.9-C300 Industrial Engine

Rated Power: 300 HP @ 2000 RPM
Maximum Torque: 1268 N·m @ 1000 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N / A

DCEC 6LTAA8.9-C325 Industrial Engine

DCEC 6LTAA8.9-C325 Industrial Engine

Rated Power: 320 HP @ 2200 RPM
Maximum Torque: 1230 N.m @ 1400 RPM
Fuel System: Bosch P7100 / RQV-K Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N / A

DCEC 6LTAA8.9-C360 Industrial Engine

DCEC 6LTAA8.9-C360 Industrial Engine

Rated Power: 354 HP @ 2200 RPM
Maximum Torque: 1400 N·m @ 1400 RPM
Fuel System: BYC P7100 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N / A

DCEC QSF2.8-C60 Industrial Engine

DCEC QSF2.8-C60 Industrial Engine

Rated Power: 60 BHP (45kW) @ 2200 RPM
Max. Torque: 184 lb-ft (250 N-m) @ 1320 – 1700 RPM
Fuel System: HPCR
Aspiration: Turbocharged without CAC
Emission Standard: EU Stage IIIA

DCEC QSF2.8-C72 Industrial Engine

DCEC QSF2.8-C72 Industrial Engine

Rated Power: 72 BHP (54kW) @ 2400 RPM
Max. Torque: 199 lb-ft (270 N-m) @ 1440 – 1800 RPM
Fuel System: HPCR
Aspiration: Turbocharged without CAC
Emission Standard: EU Stage IIIA

DCEC QSF3.8-T3 Industrial Engine

DCEC QSF3.8-T3 Industrial Engine

Rated Power: 115 hp @ 2200 RPM
Max. Torque: 470 N.m @ 1320 RPM
Fuel System: Bosch HPCR
Aspiration: Turbocharged CAC
Emission Standard: EU Stage IIIA

DCEC QSB3.9-C110-30 Industrial Engine

DCEC QSB3.9-C110-30 Industrial Engine

Rated Power: 81kW @ 2200 RPM
Max. Torque: 480 N.m @1600 RPM
Fuel System: HPCR
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB3.9-C125-30 Industrial Engine

DCEC QSB3.9-C125-30 Industrial Engine

Rated Power: 93 kW @ 2200 RPM
Max. Torque: 480 N.m @1350 RPM
Fuel System: HPCR
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB3.9-C130-31 Industrial Engine

DCEC QSB3.9-C130-31 Industrial Engine

Rated Power: 96 kW @ 2500 RPM
Max. Torque: 520 N.m @1600 RPM
Fuel System: HPCR
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB4.5-C109 Industrial Engine

DCEC QSB4.5-C109 Industrial Engine

Rated Power: 81 kW @ 2000 RPM
Max. Torque: 461 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB4.5-C110A Industrial Engine

DCEC QSB4.5-C110A Industrial Engine

Rated Power: 82 kW @ 2200 RPM
Max. Torque: 488 N.m @ 1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB4.5-C110B Industrial Engine

DCEC QSB4.5-C110B Industrial Engine

Rated Power: 82 kW @ 2200 RPM
Max. Torque: 488 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB4.5-C110C Industrial Engine

DCEC QSB4.5-C110C Industrial Engine

Rated Power: 82 kW @ 2500 RPM
Max. Torque: 488 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB4.5-C110D Industrial Engine

DCEC QSB4.5-C110D Industrial Engine

Rated Power: 82 kW @ 1800 RPM
Max. Torque: 488 N.m @1300 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB4.5-C121 Industrial Engine

DCEC QSB4.5-C121 Industrial Engine

Rated Power: 90 kW @ 2500 RPM
Max. Torque: 470 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB4.5-C128 Industrial Engine

DCEC QSB4.5-C128 Industrial Engine

Rated Power: 95 kW @ 2000 RPM
Max. Torque: 546 N.m @1400 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB4.5-C130A Industrial Engine

DCEC QSB4.5-C130A Industrial Engine

Rated Power: 97 kW @ 2200 RPM
Max. Torque: 622 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB4.5-C130B Industrial Engine

DCEC QSB4.5-C130B Industrial Engine

Rated Power: 97 kW @ 2000 RPM
Max. Torque: 620 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB4.5-C130C Industrial Engine

DCEC QSB4.5-C130C Industrial Engine

Rated Power: 97 kW @ 1800 RPM
Max. Torque: 542 N.m @1400 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB4.5-C130D Industrial Engine

DCEC QSB4.5-C130D Industrial Engine

Rated Power: 97 kW @ 2300 RPM
Max. Torque: 512 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB4.5-C132 Industrial Engine

DCEC QSB4.5-C132 Industrial Engine

Rated Power: 98 kW @ 2000 RPM
Max. Torque: 499 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB4.5-C139 Industrial Engine

DCEC QSB4.5-C139 Industrial Engine

Rated Power: 104 kW @ 2000 RPM
Max. Torque: 504 N.m @1800 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB4.5-C140 Industrial Engine

DCEC QSB4.5-C140 Industrial Engine

Rated Power: 104 kW @ 2000 RPM
Max. Torque: 586 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB4.5-C148 Industrial Engine

DCEC QSB4.5-C148 Industrial Engine

Rated Power: 110 kW @ 2300 RPM
Max. Torque: 598 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB4.5-C160A Industrial Engine

DCEC QSB4.5-C160A Industrial Engine

Rated Power: 119 kW @ 2500 RPM
Max. Torque: 622 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB4.5-C160B Industrial Engine

DCEC QSB4.5-C160B Industrial Engine

Rated Power: 119 kW @ 2400 RPM
Max. Torque: 624 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB4.5-C160C Industrial Engine

DCEC QSB4.5-C160C Industrial Engine

Rated Power: 119 kW @ 2300 RPM
Max. Torque: 624 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB4.5-C160D Industrial Engine

DCEC QSB4.5-C160D Industrial Engine

Rated Power: 119 kW @ 2200 RPM
Max. Torque: 624 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB5.9-C130-30 Industrial Engine

DCEC QSB5.9-C130-30 Industrial Engine

Rated Power: 97 kW @ 2200 RPM
Max. Torque: 480 N.m @1350 RPM
Fuel System: HPCR
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB5.9-C150-30 Industrial Engine

DCEC QSB5.9-C150-30 Industrial Engine

Rated Power: 113 kW @ 2000 RPM
Max. Torque: 615 N.m @ 1500 RPM
Fuel System: HPCR
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB5.9-C180-30 Industrial Engine

DCEC QSB5.9-C180-30 Industrial Engine

Rated Power: 132 kW @ 2200 RPM
Max. Torque: 800 N.m @ 1400 RPM
Fuel System: HPCR
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB5.9-C180-31 Industrial Engine

DCEC QSB5.9-C180-31 Industrial Engine

Rated Power: 132 kW @ 2400 RPM
Max. Torque: 820 N.m @ 1400 RPM
Fuel System: HPCR
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB5.9-C210-30 Industrial Engine

DCEC QSB5.9-C210-30 Industrial Engine

Rated Power: 154 kW @ 2200 RPM
Max. Torque: 820 N.m @ 1400 RPM
Fuel System: HPCR
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

DCEC QSB6.7-C130 Industrial Engine

DCEC QSB6.7-C130 Industrial Engine

Rated Power: 130 HP @ 2200 RPM
Max. Torque: 580 N.m @ 1400 RPM
Fuel System: Cummins MCRS
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage III

DCEC QSB6.7-C133 Industrial Engine

DCEC QSB6.7-C133 Industrial Engine

Rated Power: 133 HP @ 2200 RPM
Max. Torque: 584 N.m @ 1450 RPM
Fuel System: Cummins MCRS
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage III

DCEC QSB6.7-C170 Industrial Engine

DCEC QSB6.7-C170 Industrial Engine

Rated Power: 170 HP @ 2000 RPM
Max. Torque: 656 N.m @ 1400 RPM
Fuel System: Cummins MCRS
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage III

DCEC QSB6.7-C190 Industrial Engine

DCEC QSB6.7-C190 Industrial Engine

Rated Power: 190 HP @ 2200 RPM
Max. Torque: 931 N.m @ 1400 RPM
Fuel System: Cummins MCRS
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage III

DCEC QSB6.7-C220 Industrial Engine

DCEC QSB6.7-C220 Industrial Engine

Rated Power: 220 HP @ 2200 RPM
Max. Torque: 949 N.m @ 1500 RPM
Fuel System: Cummins MCRS
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage III

DCEC QSB6.7-C260 Industrial Engine

DCEC QSB6.7-C260 Industrial Engine

Rated Power: 260 HP @ 2200 RPM
Max. Torque: 990 N.m @ 1500 RPM
Fuel System: Cummins MCRS
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage III”

DCEC QSC8.3-C240-30 Industrial Engine

DCEC QSC8.3-C240-30 Industrial Engine

Rated Power: 194 kW @ 2200 RPM
Max. Torque: 1135 N.m @ 1350 RPM
Fuel System: N/A
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage III

DCEC QSC8.3-C260-30 Industrial Engine

DCEC QSC8.3-C260-30 Industrial Engine

Rated Power: 194 kW @ 2200 RPM
Max. Torque: 1135 N.m @ 1350 RPM
Fuel System: N/A
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage III

XCEX QSM11-C290 Industrial Engine

XCEX QSM11-C290 Industrial Engine

Rated Power:290 HP @ 2100 RPM
Max. Torque: 1478 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage IIIA

DCEC QSM11-C300 Industrial Engine

DCEC QSM11-C300 Industrial Engine

Rated Power: 300 HP @ 2100 RPM
Max. Torque: 1424 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage IIIA

DCEC QSM11-C315 Industrial Engine

DCEC QSM11-C315 Industrial Engine

Rated Power: 315 HP @ 2100 RPM
Max. Torque: 1424 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage II

DCEC QSM11-C335 Industrial Engine

DCEC QSM11-C335 Industrial Engine

Rated Power: 335 HP @ 2100 RPM
Max. Torque: 1674 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage IIIA

DCEC QSM11-C340 Industrial Engine

DCEC QSM11-C340 Industrial Engine

Rated Power: 340 HP @ 1800 RPM
Max. Torque: 1708 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage IIIA

DCEC QSM11-C350A Industrial Engine

DCEC QSM11-C350A Industrial Engine

Rated Power: 350HP @ 2100RPM
Max. Torque: 1776N.m @ 1400RPM
Fuel System: Celect Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage IIIA

DCEC QSM11-C350B Industrial Engine

DCEC QSM11-C350B Industrial Engine

Rated Power: 350 HP @ 2000 RPM
Max. Torque: 1830 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage IIIA

DCEC QSM11-C360A Industrial Engine

DCEC QSM11-C360A Industrial Engine

Rated Power: 360 HP @ 1800 RPM
Max. Torque: 1708 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage IIIA

DCEC QSM11-C360B Industrial Engine

DCEC QSM11-C360B Industrial Engine

Rated Power: 360 HP @ 2100 RPM
Max. Torque: 1830 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage IIIA

DCEC QSM11-C375 Industrial Engine

DCEC QSM11-C375 Industrial Engine

Rated Power: 375 HP @ 2100 RPM
Max. Torque: 1898 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage IIIA

DCEC QSM11-C400 Industrial Engine

DCEC QSM11-C400 Industrial Engine

Rated Power: 400 HP @ 2100 RPM
Max. Torque: 1898 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage IIIA

DCEC QSM15 Industrial Engine

DCEC QSM15 Industrial Engine

Rated Power:755HP @ 2100 RPM
Max. Torque: 3000 N.m @ 1500 RPM
Fuel System: Celect Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage IIIA

DCEC QSZ13-C380-III Industrial Engine

DCEC QSZ13-C380-III Industrial Engine

Rated Power: 286 kW @ 1900 RPM
Max. Torque: 1900 N.m @ 1100 RPM – 1500 RPM
Fuel System: HPCR
Aspiration: TC & Charge Air Cooled
Emission Standard: EU Stage III

DCEC QSZ13-C400-III Industrial Engine

DCEC QSZ13-C400-III Industrial Engine

Rated Power: 286 kW @ 1900 RPM
Max. Torque: 1900 N.m @ 1100 RPM – 1500 RPM
Fuel System: HPCR
Aspiration: TC & Charge Air Cooled
Emission Standard: EU Stage III

DCEC QSZ13-C425-II Industrial Engine

DCEC QSZ13-C425-II Industrial Engine

Rated Power: 316 kW @ 1900 RPM
Max. Torque: 2150 N.m @ 1100 RPM – 1500 RPM
Fuel System: HPCR
Aspiration: TC & Charge Air Cooled
Emission Standard: N/A

DCEC QSZ13-C425-III Industrial Engine

DCEC QSZ13-C425-III Industrial Engine

Rated Power: 316 kW @ 1900 RPM
Max. Torque: 2100 N.m @ 1100 RPM – 1400 RPM
Fuel System: HPCR
Aspiration: TC & Charge Air Cooled
Emission Standard: EU Stage III

DCEC QSZ13-C450-II Industrial Engine

DCEC QSZ13-C450-II Industrial Engine

Rated Power:335 kW @ 1900 RPM
Max. Torque: 2250 N.m @ 1100 RPM – 1500 RPM
Fuel System: HPCR
Aspiration: TC & Charge Air Cooled
Emission Standard: EU Stage III

DCEC QSZ13-C450-III Industrial Engine

DCEC QSZ13-C450-III Industrial Engine

Rated Power: 335 kW @ 1900 RPM
Max. Torque: 2200 N.m @ 1200 RPM – 1400 RPM
Fuel System: HPCR
Aspiration: TC & Charge Air Cooled
Emission Standard: EU Stage III

DCEC QSZ13-C475-II Industrial Engine

DCEC QSZ13-C475-II Industrial Engine

Rated Power: 354 kW @ 1900 RPM
Max. Torque: 2400 N.m @ 1200 RPM – 1500 RPM
Fuel System: HPCR
Aspiration: TC & Charge Air Cooled
Emission Standard: N/A

DCEC QSZ13-C475-III Industrial Engine

DCEC QSZ13-C475-III Industrial Engine

Rated Power: 354 kW @ 1900 RPM
Max. Torque: 2200 N.m @ 1200 RPM – 1600 RPM
Fuel System: HPCR
Aspiration: TC & Charge Air Cooled
Emission Standard: EU Stage III

DCEC QSZ13-C500-II Industrial Engine

DCEC QSZ13-C500-II Industrial Engine

Rated Power: 372 kW @ 1900 RPM
Max. Torque: 2500 N.m @ 1200 RPM – 1500 RPM
Fuel System: HPCR
Aspiration: TC & Charge Air Cooled
Emission Standard: China Stage II

DCEC QSZ13-C500-III Industrial Engine

DCEC QSZ13-C500-III Industrial Engine

Rated Power: 372 kW @ 1900 RPM
Max. Torque: 2200 N.m @ 1200 RPM – 1700 RPM
Fuel System: HPCR
Aspiration: TC & Charge Air Cooled
Emission Standard: N/A

DCEC QSZ13-C525-II Industrial Engine

DCEC QSZ13-C525-II Industrial Engine

Rated Power: 391 kW @ 1900 RPM
Max. Torque: 2580 N.m @ 1300 RPM – 1500 RPM
Fuel System: HPCR
Aspiration: TC & Charge Air Cooled
Emission Standard: N/A

DCEC QSZ13-C550-II Industrial Engine

DCEC QSZ13-C550-II Industrial Engine

Rated Power: 410 kW @ 1900 RPM
Max. Torque: 2650 N.m @ 1300 RPM – 1500 RPM
Fuel System: HPCR
Aspiration: TC & Charge Air Cooled
Emission Standard: China Stage II

DCEC QSZ13-C575-II Industrial Engine

DCEC QSZ13-C575-II Industrial Engine

Rated Power: 429 kW @ 1900 RPM
Max. Torque: 2750 N.m @ 1300 RPM – 1500 RPM
Fuel System: HPCR
Aspiration: TC & Charge Air Cooled
Emission Standard: China Stage II

DCEC QSZ14-C460-30 Industrial Engine

Rated Power: 460 HP @ 2100 RPM
Max. Torque: 2215 N.m @ 1500 RPM
Fuel System: HPCR
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: CH SG3

DCEC QSZ14-C490-30 Industrial Engine

Rated Power: 490 HP @ 2100 RPM
Max. Torque: 2200 N.m @ 1500 RPM
Fuel System: HPCR
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: CH SG3

DCEC QSZ14-C540-30 Industrial Engine

Rated Power: 540 HP @ 2100 RPM
Max. Torque: 2400 N.m @ 1500 RPM
Fuel System: HPCR
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: CH SG3

DCEC QSZ14-C560-30 Industrial Engine

Rated Power: 560 HP @ 2100 RPM
Max. Torque: 2400 N.m @ 1500 RPM
Fuel System: HPCR
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: CH SG3

DCEC QSZ14-C560-31 Industrial Engine

Rated Power: 560 HP @ 2100 RPM
Max. Torque: 2400 N.m @ 1500 RPM
Fuel System: HPCR
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: CH SG3

DCEC M15CS4-560C Industrial Engine

Rated Power: 560 HP @ 2100 RPM
Max. Torque: 2215 N.m @ 1500 RPM
Fuel System: HPCR
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: CH SG4

DCEC M15CS4-600C Industrial Engine

Rated Power: 600 HP @ 2100 RPM
Max. Torque: 2800 N.m @ 1500 RPM
Fuel System: HPCR
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: CH SG4

DCEC M15CS4-650C Industrial Engine

Rated Power: 650 HP @ 2100 RPM
Max. Torque: 3000 N.m @ 1500 RPM
Fuel System: HPCR
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: CH SG4

DCEC M15CS4-775C Industrial Engine

Rated Power: 775 HP @ 2100 RPM
Max. Torque: 3000 N.m @ 1500 RPM
Fuel System: HPCR
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: CH SG4

Pump Drive Engine

DCEC Pump Engine Catalogue
Series

Model

4BT3.9-P50 | 50 HP @ 1500 RPM4BT3.9-P55 | 55 HP @ 1800 RPM4BT3.9-C90 | 90 HP @ 2900 RPM4BTA3.9-P80 | 80 HP @ 1500 RPM
4BTA3.9-C80-II | 80 HP @ 2200 RPM4BTA3.9-P90 | 90 HP @ 1800  RPM4BTA3.9-P95 | 95 HP @ 1500 RPM4BTA3.9-C100 | 100 HP @ 2200  RPM
4BTA3.9-C100-II | 100 HP @ 2200 RPM4BTA3.9-C105 | 105 HP @ 2900 RPM4BTA3.9-P110 | 110 HP @ 1800  RPM4BTA3.9-C110-II | 110 HP @ 2200 RPM
4BTA3.9-C125 | 125 HP @ 2200 RPM4BTA3.9-C125-II | 125 HP @ 2200 RPM4BTA3.9-C130-II | 130 HP @ 2200 RPM4BTAA3.9-C80 | 80 HP @ 2200 RPM
4BTAA3.9-C110 | 110 HP @ 2200 RPM4BTAA3.9-C115 | 115 HP @ 2200 RPM4BTAA3.9-C125-II | 125 HP @ 2300 RPM4BTAA3.9-C130 | 130 HP @ 2500 RPM
6BT5.9-C125-II | 92 kW @ 2200 RPM6BT5.9-C130 | 97 kW @ 2200 RPM6BT5.9-C130-II | 97 kW @ 2200 RPM6BT5.9-P130 | 96 kW @ 1500 RPM
6BT5.9-P160 | 115 kW @ 1800 RPM6BTA5.9-C150-II | 112 kW @ 2200 RPM6BTA5.9-C165-II | 123 kW @ 2200 RPM6BTA5.9-C170 | 125 kW @ 2900 RPM
6BTA5.9-C170-II | 127 kW @ 2000 RPM6BTA5.9-C180-II | 132 kW @ 2200 RPM6BTAA5.9-C130A | 97 kW @ 2200 RPM6BTAA5.9-C130B | 97 kW @ 2200 RPM
6BTAA5.9-C130C | 97 kW @ 2000 RPM6BTAA5.9-C160 | 118 kW @ 2200 RPM6BTAA5.9-P160 | 120 kW @ 1500 RPM6BTAA5.9-C170A | 125 kW @ 2200 RPM
6BTAA5.9-C170B | 127 kW @ 2200 RPM6BTAA5.9-P180 | 132 kW @ 1800 RPM6BTAA5.9-C180A | 132 kW @ 2200 RPM6BTAA5.9-C180B | 132 kW @ 2500 RPM
6BTAA5.9-C180C | 132 kW @ 2500 RPM6BTAA5.9-C190 | 142 kW @ 2000 RPM6BTAA5.9-C205 | 153 kW @ 2000 RPM
6CTA8.3-C205-II | 151 kW @ 1850 RPM6CTA8.3-C215-II | 160 kW @ 2200 RPM6CTA8.3-P220 | 163 kW @ 1500 RPM6CTA8.3-C225 | 166 kW @ 3000 RPM
6CTA8.3-P230 | 170 kW @ 1800 RPM6CTA8.3-C230-II | 170 kW @ 1850 RPM6CTA8.3-C240-II | 179 kW @ 2200 RPM6CTA8.3-C260-II | 194 kW @ 1900 RPM
6CTAA8.3-C215 | 160 kW @ 2200 RPM6CTAA8.3-C240 | 179 kW @ 2200 RPM6CTAA8.3-C248 | 183 kW @ 3000 RPM6CTAA8.3-P250 | 183 kW @ 1500 RPM
6CTAA8.3-P260 | 190 kW @ 1800 RPM6CTAA8.3-C260 | 194 kW @ 2200 RPM
6LTAA8.9-C240 | 179kW @ 2200 RPM6LTAA8.9-C260 | 194kW @ 2200 RPM6LTAA8.9-C300 | 225kW @ 2000 RPM6LTAA8.9-P310 | 230 kW @ 1500 RPM
6LTAA8.9-C325 | 239kW @ 2200 RPM6LTAA8.9-P340 | 255 kW @ 1800 RPM 6LTAA8.9-C340 | 250 kW @ 3000 RPM6LTAA8.9-C360 | 264kW @ 2200 RPM
M15CS4-560C | 412 kW @ 2100 RPMM15CS4-600C | 447 kW @ 2100 RPMM15CS4-650C | 478 kW @ 2100 RPM
QSB3.9-P50 | 36 kW @ 2900 RPMQSB3.9-P80B | 60 kW @ 2900 RPMQSB3.9-P80A | 63 kW @ 1500 RPMQSB3.9-P110 | 79 kW @ 1500 RPM
QSB3.9-P115 | 85 kW @ 2900 RPM
QSB5.9-P130 | 96 kW @ 1500 RPMQSB5.9-P160 | 120 kW @ 1500 RPM
QSB6.7-P160 | 118 kW @ 2900 RPMQSB6.7-P200 | 147 kW @ 2900 RPMQSB6.7-P220 | 168 kW @ 1500 RPMQSB6.7-P230 | 170 kW @ 2900 RPM
QSL8.9-P280 | 206 kW @ 1500 RPMQSL8.9-P320 | 235 kW @ 1500 RPM
QSZ13-P450A | 340 kW @ 1500 RPMQSZ13-P450B | 340 kW @ 1800 RPMQSZ13-P550A | 410 kW @ 1500 RPMQSZ13-P550B | 410 kW @ 1800 RPM
QSZ13-C380-III | 286 kW @ 1900 RPMQSZ13-C400-III | 298 kW @ 1900 RPMQSZ13-C425-III | 316 kW @ 1900 RPMQSZ13-C450-III | 335 kW @ 1900 RPM
QSZ13-C475-II | 354 kW @ 1900 RPMQSZ13-C500-II | 372 kW @ 1900 RPMQSZ13-C525-II | 391 kW @ 1900 RPMQSZ13-C550-II | 410 kW @ 1900 RPM
QSZ13-C575-II | 429 kW @ 1900 RPM
QSZ14-C460-30 | 338 kW @ 2100 RPMQSZ14-C490-30 | 360 kW @ 2100 RPMQSZ14-C540-30 | 397 kW @ 2100 RPMQSZ14-C560-30 | 412 kW @ 2100 RPM
QSZ14-C560-31 | 412 kW @ 2100 RPM
——END——

DCEC 4BTA3.9-P80 Pump Drive Engine

Rated Power: 58 kW @ 1500 RPM
Fuel Pump: Direct Injection
Governor: Electronical
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

DCEC 4BTAA3.9-C80 Pump Drive Engine

Rated Power: 60 kW @ 2200 RPM
Fuel Pump: BYC P7100 Pump
Governor: RSV Mechanical
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage II

DCEC 4BTA3.9-P90 Pump Drive Engine

Rated Power: 67 kW @ 1800 RPM
Fuel Pump: Mechanical
Governor: Electronical
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

DCEC 4BTA3.9-C100 Pump Drive Engine

Rated Power: 74 kW @ 2200 RPM
Fuel Pump: BYC PB
Governor: RSV Mechanical
Aspiration: TC & Water-AirIntercooler
Emission Standard: SEPA STAGE I

DCEC 4BTA3.9-C110-II Pump Drive Engine

DCEC 4BTA3.9-C110-II Pump Drive Engine

Rated Power: 82 kW @ 2200 RPM
Fuel Pump: Weifu PW2000 Pump
Governor: RSV Mechanical
Aspiration: TC & Water-AirIntercooler
Emission Standard: Euro Stage II

DCEC 4BTAA3.9-C110 Pump Drive Engine

DCEC 4BTAA3.9-C110 Pump Drive Engine

Rated Power: 82 kW @ 2200 RPM
Fuel Pump: Weifu PW2000 Pump
Governor: RSV Mechanical
Aspiration: TC & Air-Air Intercooler
Emission Standard: CHINA II

DCEC 4BTAA3.9-C115 Pump Drive Engine

DCEC 4BTAA3.9-C115 Pump Drive Engine

Rated Power: 87 kW @ 2200 RPM
Fuel Pump: Weifu PW2000 Pump
Governor: RSV Mechanical
Aspiration: TC & Air-Air Intercooler
Emission Standard: CHINA II

DCEC 4BTA3.9-C125-II Pump Drive Engine

DCEC 4BTA3.9-C125-II Pump Drive Engine

Rated Power: 93 kW @ 2200 RPM
Fuel Pump: Weifu PW2000 Pump
Governor: RQV-K Mechanical
Aspiration: TC & Water-AirIntercooler
Emission Standard: Euro Stage II

DCEC 4BTA3.9-C125 Pump Drive Engine

DCEC 4BTA3.9-C125 Pump Drive Engine

Rated Power: 93 kW @ 2200 RPM
Fuel Pump: Weifu PW2000 Pump
Governor: RQV-K Mechanical
Aspiration: TC & Water-AirIntercooler
Emission Standard: N/A

DCEC 6BTAA5.9-C160 Pump Drive Engine

DCEC 6BTAA5.9-C160 Pump Drive Engine

Rated Power:118 kW @ 2200 RPM
Fuel Pump: Weifu PW2000
Governor: RSV Mechanical
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage II

DCEC 6BTA5.9-C180-II Pump Engine

DCEC 6BTA5.9-C180-II Pump Engine

Rated Power: 132 kW @ 2200 RPM
Fuel Pump: Weifu PW
Governor:RSV Mechanical
Aspiration: TC & Water-AirIntercooler
Emission Standard: Euro Stage II

DCEC 6BTAA5.9-C180A Pump Drive Engine

DCEC 6BTAA5.9-C180A Pump Drive Engine

Rated Power: 132 kW @ 2200 RPM
Fuel Pump: BYC P7100
Governor: RQV_K Mechanical
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage II

DCEC 6BTAA5.9-C190 Pump Drive Engine

DCEC 6BTAA5.9-C190 Pump Drive Engine

Rated Power:142 kW @ 2000 RPM
Fuel Pump: BYC P7100
Governor: RSV Mechanical
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage II

DCEC 6BTAA5.9-C205 Pump Drive Engine

DCEC 6BTAA5.9-C205 Pump Drive Engine

Rated Power:153 kW @ 2000 RPM
Fuel Pump: BYC P7100
Governor: RSV Mechanical
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage II

DCEC 6CTAA8.3-C215 Pump Drive Engine

DCEC 6CTAA8.3-C215 Pump Drive Engine

Rated Power: 160 kW @ 2200 RPM
Fuel Pump: Weifu PW2000
Governor: Mechanical
Aspiration: TC & Air-AirIntercooler
Emission Standard: Euro Stage II

G-Drive Engine

DCEC G-Drive Engine Catalogue

Series

Model

4B3.9-G1 | 124 kW @ 1500 RPM4B3.9-G2-A | 30 kW @ 1800 RPM 4B3.9-G2-B | 67 kW @ 1500 RPM4B3.9-G11-A | 20 kW @ 1500 RPM
4B3.9-G11-B | 23 kW @ 1800 RPM4B3.9-G12-A | 24 kW @ 1500 RPM 4B3.9-G12-B | 30 kW @ 1800 RPM4BT3.9-G1 | 36 kW @ 1500 RPM
4BT3.9-G2-A | 36 kW @ 1500 RPM 4BT3.9-G2-B | 40 kW @ 1800 RPM 4BTA3.9-G2-A | 58 kW @ 1500 RPM 4BTA3.9-G2-B| 67 kW @ 1800 RPM
4BTA3.9-G11-A | 70 kW @ 1500 RPM 4BTA3.9-G11-B | 80 kW @ 1800 RPM 4BTA3.9-G12 | 67 kW @ 1500 RPM 4BTA3.9-G13 | 87 kW @ 1500 RPM
4BTAA3.9-G3 | 96 kW @ 1500 RPM
6BT5.9-G1 | 86 kW @ 1500 RPM6BT5.9-G2-A |96 kW @ 1500 RPM 6BT5.9-G2-B |115 kW @ 1800 RPM 6BTA5.9-G2-A| 106 kW @ 1500 RPM
6BTA5.9-G2-B|115 kW @ 1800 RPM 6BTA5.9-G3| 120 kW @ 1500 RPM 6BTAA5.9-G2-A|106 kW @ 1500 RPM 6BTAA5.9-G2-B| 132 kW @ 1800 RPM
6BTAA5.9-G12-A| 140 kW @ 1500 RPM 6BTAA5.9-G12-B|150 kW @ 1800 RPM 6BTAA5.9-G15|145 kW @ 1500 RPM
6CTA8.3-G1| 163 kW @ 1500 RPM6CTA8.3-G2-A |163 kW @ 1500 RPM6CTA8.3-G2-B |170 kW @ 1800 RPM6CTAA8.3-G2-A|183 kW @ 1500 RPM
6CTAA8.3-G2-B|190 kW @ 1800 RPM6CTAA8.3-G9-A|231 kW @ 1500 RPM6CTAA8.3-G9-B|231 kW @ 1800 RPM
6LTAA8.9-G2-A|220 kW @ 1500 RPM6LTAA8.9-G2-B|235 kW @ 1800 RPM6LTAA8.9-G3-A|230 kW @ 1500 RPM6LTAA8.9-G3-B|255 kW @ 1800 RPM
6LTAA9.5-G1-A|290 kW @ 1500 RPM6LTAA9.5-G1-B|280 kW @ 1800 RPM6LTAA9.5-G3-A|250 kW @ 1500 RPM6LTAA9.5-G3-B|265 kW @ 1800 RPM
6ZTAA13-G2-A|522 kW @ 1500 RPM 6ZTAA13-G2-B|522 kW @ 1800 RPM 6ZTAA13-G3-A|455 kW @ 1500 RPM 6ZTAA13-G3-B|455 kW @ 1800 RPM
6ZTAA13-G4-A|537 kW @ 1500 RPM6ZTAA13-G4-B|537 kW @ 1800 RPM
QSB3.9-G2|63 kW @ 1500 RPMQSB3.9-G3 |79 kW @ 1500 RPMQSB3.9-G31|33 kW @ 1500 RPMQSB3.9-G33|36 kW @ 1500 RPM
QSB3.9-G35|58 kW @ 1500 RPM QSB3.9-G37|84 kW @ 1500 RPM QSB3.9-G39|100 kW @ 1500 RPM
QSB5.9-G2|96 kW @ 1500 RPMQSB5.9-G3|120 kW @ 1500 RPMQSB5.9-G30|116 kW @ 1500 RPMQSB5.9-G31|132 kW @ 1500 RPM
QSB5.9-G33|159 kW @ 1500 RPM
QSB4.5-G1|206 kW @ 1500 RPM
QSB6.7-G3|96 kW @ 1500 RPMQSB6.7-G4|168 kW @ 1500 RPM QSB6.7-G31|209 kW @ 1500 RPM QSB6.7-G32|173 kW @ 1500 RPM
QSL8.9-G2|206 kW @ 1500 RPM QSL8.9-G3|220 kW @ 1500 RPMQSL8.9-G4|235 kW @ 1500 RPMQSL8.9-G30|301 kW @ 1500 RPM
QSM11-G2|319 kW @ 1500 RPM
QSZ13-G2-A|536 kW @ 1500 RPM QSZ13-G2-B|536 kW @ 1800 RPM QSZ13-G3-A| 63 kW @ 1500 RPMQSZ13-G3-B|603 kW @ 1800 RPM
QSZ13-G5-A|550 kW @ 1500 RPM QSZ13-G5-B |104 kW @ 2500 RPM QSZ13-G6-A|439 kW @ 1500 RPM QSZ13-G6-B|603 kW @ 1800 RPM
QSZ13-G7-A|491 kW @ 1500 RPMQSZ13-G7-B|548 kW @ 1800 RPM
——END——

DCEC 4B3.9-G1 G-Drive Engine

DCEC 4B3.9-G1 G-Drive Engine

Rated Power: 24 kW@ 1500RPM
Fuel Pump: BYC A
Governor: RSV Mech.
Aspiration: Naturally Aspirated
Emission Standard: N/A

DCEC 4B3.9-G2-A G-Drive Engine

DCEC 4B3.9-G2-A G-Drive Engine

Rated Power: 24 kW@ 1500RPM
Fuel Pump: BYC A Pump
Governor: RSV Mech.
Aspiration: Naturally Aspirated
Emission Standard: N/A

DCEC 4B3.9-G2-B G-Drive Engine

DCEC 4B3.9-G2-B G-Drive Engine

Rated Power: 24 kW@ 1500RPM
Fuel Pump: BYC A Pump
Governor: RSV Mech.
Aspiration: Naturally Aspirated
Emission Standard: N/A

DCEC 4B3.9-G11-B G-Drive Engine

DCEC 4B3.9-G11-B G-Drive Engine

Prime Power:23 kW @ 1800 RPM
Number of Cylinders :4 Cylinders,Vertical
Fuel System :Weifu A Pump /RSV
Aspiration:Naturally Aspirated
Emission Standard: N/A

DCEC 4B3.9-G12-A G-Drive Engine

DCEC 4B3.9-G12-A G-Drive Engine

Prime Power:27 kW @ 1500 RPM
Number of Cylinders :4 Cylinders Vertical
Fuel System :Weifu A Pump/Electronic Governor
Aspiration:Naturally Aspirated
Emission Standard: N/A

DCEC 4B3.9-G12-B G-Drive Engine

DCEC 4B3.9-G12-B G-Drive Engine

Prime Power:33 kW @ 1800 RPM
Number of Cylinders :4 Cylinders,Vertical
Fuel System :Weifu A Pump /RSV
Aspiration:Naturally Aspirated
Emission Standard: N/A

DCEC 4BT3.9-G1 G-Drive Engine

DCEC 4BT3.9-G1 G-Drive Engine

Rated Power: 36 kW@ 1500RPM
Fuel Pump: BYC A Pump
Governor: RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

DCEC 4BT3.9-G2-B G-Drive Engine

DCEC 4BT3.9-G2-B G-Drive Engine

Prime Power:40 kW @ 1800 RPM
Number of Cylinders :4 Cylinders
Fuel System :North Oil A Pump/Elec.
Aspiration:Turbocharging
Emission Standard: N/A

DCEC 4BTA3.9-G2-A G-Drive Engine

DCEC 4BTA3.9-G2-A G-Drive Engine

Prime Power:58 kW @ 1500 RPM
Number of Cylinders :4 Cylinders
Fuel System :Beiyou PB Pump /GAC Elec.
Aspiration:Pressurized Water is Air-Cooled
Emission Standard: N/A

DCEC 4BTA3.9-G2-B G-Drive Engine

DCEC 4BTA3.9-G2-B G-Drive Engine

Prime Power:67 kW @ 1800 RPM
Number of Cylinders :4 Cylinders
Fuel System :Beiyou PB Pump /GAC Elec.
Aspiration:Pressurized Water Is Air-Cooled
Emission Standard: N/A

DCEC 4BTA3.9-G11-B G-Drive Engine

DCEC 4BTA3.9-G11-B G-Drive Engine

Prime Power:80 kW @ 1800 RPM
Number of Cylinders :4 Cylinders
Fuel System :North Oil PB Pump/Elec.
Aspiration:Pressurized Water Is Air-Cooled
Emission Standard: N/A

DCEC 4BTA3.9-G12 G-Drive Engine

DCEC 4BTA3.9-G12 G-Drive Engine

Rated Power: 67 kW@ 1500RPM
Fuel Pump: BYC PB Pump
Governor: Elec.
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

DCEC 4BTA3.9-G13 G-Drive Engine

DCEC 4BTA3.9-G13 G-Drive Engine

Rated Power: 87 kW@ 1500RPM
Fuel Pump: WF PW Pump
Governor: Elec.
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

DCEC 4BTAA3.9-G3 G-Drive Engine

DCEC 4BTAA3.9-G3 G-Drive Engine

Rated Power: 96 kW@ 1500RPM
Fuel Pump: WF PW Pump
Governor: Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC 6BT5.9-G2-A G-Drive Engine

DCEC 6BT5.9-G2-A G-Drive Engine

Prime Power:96 kW @ 1500 RPM
Number of Cylinders :6 Cylinders
Fuel System :PB Pump /GAC Elec.
Aspiration:Turbocharging
Emission Standard: N/A

DCEC 6BT5.9-G2-B G-Drive Engine

DCEC 6BT5.9-G2-B G-Drive Engine

Prime Power:115 kW @ 1800 RPM
Number of Cylinders :6 Cylinders
Fuel System :PB Pump /GAC Elec.
Aspiration:Turbocharging
Emission Standard: N/A

DCEC 6BTA5.9-G2-A G-Drive Engine

DCEC 6BTA5.9-G2-A G-Drive Engine

Rated Power: 106 kW@ 1500RPM
Fuel Pump: BYC PB Pump
Governor: Elec.
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

DCEC 6BTA5.9-G2-B G-Drive Engine

DCEC 6BTA5.9-G2-B G-Drive Engine

Prime Power:120 kW @ 1800 RPM
Number of Cylinders :6 Cylinders
Fuel System :North Oil PB Pump/Elec.
Aspiration:Turbo Charging With Inter-Cooling
Emission Standard: N/A

DCEC 6BTA5.9-G3 G-Drive Engine

DCEC 6BTA5.9-G3 G-Drive Engine

Rated Power: 120 kW@ 1500RPM
Fuel Pump: BYC PB Pump
Governor: Elec.
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

DCEC 6BTAA5.9-G2-B G-Drive Engine

DCEC 6BTAA5.9-G2-B G-Drive Engine

Prime Power:132 kW @ 1800 RPM
Number of Cylinders :6 Cylinders
Fuel System :North Oil PB Pump/Elec.
Aspiration:Turbocharged Air-to-Air Cooling
Emission Standard: N/A

DCEC 6BTAA5.9-G12-B G-Drive Engine

DCEC 6BTAA5.9-G12-B G-Drive Engine

Prime Power:150 kW @ 1800 RPM
Number of Cylinders :6 Cylinders
Fuel System :Beiyou P7100 Pump /SEGMA Elec.
Aspiration:Turbocharged, Air-Cooled
Emission Standard: N/A

DCEC 6BTAA5.9-G15 G-Drive Engine

DCEC 6BTAA5.9-G15 G-Drive Engine

Rated Power: 145 kW@ 1500RPM
Fuel Pump: North Oil Mechanical Pump
Governor: Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC 6CTA8.3-G1 G-Drive Engine

DCEC 6CTA8.3-G1 G-Drive Engine

Rated Power: 163 kW@ 1500RPM
Fuel Pump: BYC PB Pump
Governor: RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

DCEC 6CTA8.3-G2-A G-Drive Engine

DCEC 6CTA8.3-G2-A G-Drive Engine

Rated Power: 163 kW@ 1500RPM
Fuel Pump: BYC PB Pump
Governor: GAC Elec.
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

DCEC 6CTA8.3-G2-B G-Drive Engine

DCEC 6CTA8.3-G2-B G-Drive Engine

Rated Power: 170 kW@ 1800RPM
Fuel Pump:BYC PB Pump / GAC Electronic Governor
Governor Regulation:≤3%
Aspiration: Turbocharged & Water-Air Intercooler
Emission Standard: N/A

DCEC 6CTAA8.3-G2-B G-Drive Engine

DCEC 6CTAA8.3-G2-B G-Drive Engine

Rated Power: 190 kW@ 1800RPM
Fuel Pump:BYC P7100 Pump
Governor: Elec.
Aspiration:Turbocharged & Air-Air Intercooler
Emission Standard: N/A

DCEC 6CTAA8.3-G9-B G-Drive Engine

DCEC 6CTAA8.3-G9-B G-Drive Engine

Rated Power: 231 kW@ 1800RPM
Fuel Pump:BYC P7100 Pump / Electronic Governor
Governor Regulation:≤5%
Aspiration:Turbocharged & Air-Air Intercooler
Emission Standard: N/A

DCEC 6LTAA8.9-G2-A G-Drive Engine

DCEC 6LTAA8.9-G2-A G-Drive Engine

Rated Power: 220 kW@ 1500RPM
Fuel Pump: BYC P7100 Pump
Governor: GAC Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC 6LTAA8.9-G2-B G-Drive Engine

DCEC 6LTAA8.9-G2-B G-Drive Engine

Rated Power: 235 kW@ 1500RPM
Fuel Pump: BYC P7100 Pump
Governor: Elec.
Aspiration: Turbocharged & Air-Air Intercooler
Emission Standard: N/A

DCEC 6LTAA8.9-G3-B G-Drive Engine

DCEC 6LTAA8.9-G3-B G-Drive Engine

Rated Power: 255 kW@ 1500RPM
Fuel Pump: BYC P7100 Pump
Governor: Elec.
Aspiration: Turbocharged & Air-Air Intercooler
Emission Standard: N/A

DCEC 6LTAA9.5-G1-A G-Drive Engine

DCEC 6LTAA9.5-G1-A G-Drive Engine

Rated Power: 290 kW@ 1500RPM
Fuel Pump: Mechanical Fuel Pump
Governor: Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC 6LTAA9.5-G1-B G-Drive Engine

DCEC 6LTAA9.5-G1-B G-Drive Engine

Rated Power: 280 kW@ 1800RPM
Fuel Pump: Mechanical Fuel Pump
Governor: Elec.
Aspiration: Turbocharged & Air-Air Intercooler
Emission Standard: N/A

DCEC 6LTAA9.5-G3-A G-Drive Engine

DCEC 6LTAA9.5-G3-A G-Drive Engine

Rated Power: 250 kW@ 1500RPM
Fuel Pump: Mechanical Fuel Pump
Governor: Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC 6LTAA9.5-G3-B G-Drive Engine

DCEC 6LTAA9.5-G3-B G-Drive Engine

Rated Power: 265 kW@ 1800RPM
Fuel Pump: Mechanical Fuel Pump
Governor: Elec.
Aspiration: Turbocharged & Air-Air Intercooler
Emission Standard: N/A

DCEC 6ZTAA13-G2-A G-Drive Engine

DCEC 6ZTAA13-G2-A G-Drive Engine

Rated Power: 522 kW@ 1500RPM
Fuel Pump: BYC PD Pump
Governor: GAC Elec.
Aspiration: TC &Charge Air Cooled
Emission Standard: N/A

DCEC 6ZTAA13-G2-B G-Drive Engine

DCEC 6ZTAA13-G2-B G-Drive Engine

Rated Power: 522 kW@ 1500RPM
Fuel Pump:BYC PD Pump
Governor: GAC Elec.
Aspiration: Turbocharged & Air-Air Intercooler
Emission Standard: N/A

DCEC 6ZTAA13-G3-A G-Drive Engine

DCEC 6ZTAA13-G3-A G-Drive Engine

Rated Power: 455 kW@ 1500RPM
Fuel Pump: BYC PD Pump
Governor: GAC Elec.
Aspiration: TC &Charge Air Cooled
Emission Standard: N/A

DCEC 6ZTAA13-G3-B G-Drive Engine

DCEC 6ZTAA13-G3-B G-Drive Engine

Rated Power: 455 kW@ 1800RPM
Fuel Pump:BYC PD Pump
Governor: GAC Elec.
Aspiration: Turbocharged & Air-Air Intercooler
Emission Standard: N/A

DCEC 6ZTAA13-G4-A G-Drive Engine

DCEC 6ZTAA13-G4-A G-Drive Engine

Rated Power: 537 kW@ 1500RPM
Fuel Pump: BYC PD Pump
Governor: GAC Elec.
Aspiration: TC &Charge Air Cooled
Emission Standard: N/A

DCEC 6ZTAA13-G4-B G-Drive Engine

DCEC 6ZTAA13-G4-B G-Drive Engine

Rated Power: 537 kW@ 1800RPM
Fuel Pump:BYC PD Pump
Governor: GAC Elec.
Aspiration: Turbocharged & Air-Air Intercooler
Emission Standard: N/A

DCEC QSB3.9-G2 G-Drive Engine

DCEC QSB3.9-G2 G-Drive Engine

Rated Power: 63 kW@1500RPM
Fuel Pump:Bosch Common Rail
Governor Regulation:≤3%
Aspiration:Turbocharger
Emission Standard: N/A

DCEC QSB3.9-G3 G-Drive Engine

DCEC QSB3.9-G3 G-Drive Engine

Rated Power: 79 kW @ 1500RPM
Fuel Pump: High Pressure Common Rail System
Governor: Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC QSB3.9-G31 G-Drive Engine

DCEC QSB3.9-G31 G-Drive Engine

Rated Power: 25 kW@ 1500RPM
Fuel Pump: Bosch Common Rail
Governor Regulation:≤3%
Aspiration: Turbocharger
Emission Standard: N/A

DCEC QSB3.9-G33 G-Drive Engine

DCEC QSB3.9-G33 G-Drive Engine

Rated Power: 25 kW@ 1500RPM
Fuel Pump: Bosch Common Rail
Governor Regulation:≤3%
Aspiration: Turbocharger
Emission Standard: N/A

DCEC QSB3.9-G35 G-Drive Engine

DCEC QSB3.9-G35 G-Drive Engine

Rated Power: 58 kW@ 1500RPM
Fuel Pump: Bosch Common Rail
Governor Regulation:≤3%
Aspiration: Turbocharger
Emission Standard: N/A

DCEC QSB3.9-G37 G-Drive Engine

DCEC QSB3.9-G37 G-Drive Engine

Rated Power: 84 kW@ 1500RPM
Fuel Pump: Bosch Common Rail
Governor Regulation ≤3%
Aspiration: Turbocharger
Emission Standard: N/A

DCEC QSB3.9-G39 G-Drive Engine

DCEC QSB3.9-G39 G-Drive Engine

Rated Power: 100 kW@ 1500RPM
Fuel Pump: Bosch Common Rail
Governor Regulation ≤3%
Aspiration: Turbocharger
Emission Standard: N/A

DCEC QSB4.5-G1 G-Drive Engine

DCEC QSB4.5-G1 G-Drive Engine

Rated Power: 98 kW@ 1500RPM
Fuel Pump: High Pressure Common Rail
Governor: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC QSB5.9-G2 G-Drive Engine

DCEC QSB5.9-G2 G-Drive Engine

Rated Power: 96 kW @ 1500RPM
Fuel Pump: High Pressure Common Rail System
Governor: Electronic
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC QSB5.9-G3 G-Drive Engine

DCEC QSB5.9-G3 G-Drive Engine

Rated Power: 120 kW @ 1500RPM
Fuel Pump: High Pressure Common Rail System
Governor: Electronic
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC QSB5.9-G30 G-Drive Engine

DCEC QSB5.9-G30 G-Drive Engine

Rated Power: 116 kW@ 1500RPM
Fuel Pump:High Pressure Common Rail System
Governor Regulation ≤3%
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC QSB5.9-G31 G-Drive Engine

DCEC QSB5.9-G31 G-Drive Engine

Rated Power: 132 kW@ 1500RPM
Fuel Pump:High Pressure Common Rail System
Governor Regulation ≤3%
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC QSB5.9-G33 G-Drive Engine

DCEC QSB5.9-G33 G-Drive Engine

Rated Power: 159 kW@ 1500RPM
Fuel Pump:High Pressure Common Rail System
Governor Regulation ≤3%
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC QSB6.7-G3 G-Drive Engine

DCEC QSB6.7-G3 G-Drive Engine

Rated Power: 151 kW @ 1500RPM
Fuel Pump: BOSCH Common Rail System
Governor: Electronic
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC QSB6.7-G4 G-Drive Engine

DCEC QSB6.7-G4 G-Drive Engine

Rated Power: 151 kW @ 1500RPM
Fuel Pump: BOSCH Common Rail System
Governor: Electronic
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC QSB6.7-G31 G-Drive Engine

DCEC QSB6.7-G31 G-Drive Engine

Rated Power: 209 kW@ 1500RPM
Fuel Pump:TDCI System
Governor Regulation: N/A
Aspiration: Turbocharger
Emission Standard: N/A

DCEC QSB6.7-G32 G-Drive Engine

DCEC QSB6.7-G32 G-Drive Engine

Rated Power: 173 kW@ 1500RPM
Fuel Pump:TDCI System
Governor Regulation: N/A
Aspiration: Turbocharger
Emission Standard: N/A

DCEC QSL8.9-G2 G-Drive Engine

DCEC QSL8.9-G2 G-Drive Engine

Rated Power: 206 kW @ 1500RPM
Fuel Pump: High Pressure Common Rail System
Governor: Electronic
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC QSL8.9-G3 G-Drive Engine

DCEC QSL8.9-G3 G-Drive Engine

Rated Power: 220 kW @ 1500RPM
Fuel Pump: High Pressure Common Rail System
Governor: Electronic
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC QSL8.9-G4 G-Drive Engine

DCEC QSL8.9-G4 G-Drive Engine

Rated Power: 225 kW@ 1500RPM
Fuel Pump: High Pressure Common Rail System
Governor: Electronic
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC QSL8.9-G30 G-Drive Engine

DCEC QSL8.9-G30 G-Drive Engine

Rated Power: 301 kW@ 1500RPM
Fuel Pump:High Pressure Common Rail System
Governor Regulation ≤3%
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC QSM11-G2 G-Drive Engine

DCEC QSM11-G2 G-Drive Engine

Rated Power: 319 kW @ 1800 RPM
Fuel Pump: High Pressure Common Rail System
Governor: Electronic
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

QSZ13-G2-A G-Drive Engine

QSZ13-G2-A G-Drive Engine

Rated Power: 536 kW@ 1500RPM
Fuel Pump: High Pressure Common Rail
Governor: Electronic
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC QSZ13-G2-B G-Drive Engine

DCEC QSZ13-G2-B G-Drive Engine

Rated Power: 536 kW@ 1800RPM
Fuel Pump: HPCR
Governor Regulation≤1%
Aspiration:Turbocharged & Air-Air Intercooler
Emission Standard: N/A

QSZ13-G3-A G-Drive Engine

QSZ13-G3-A G-Drive Engine

Rated Power: 63 kW@ 1500RPM
Fuel Pump: High Pressure Common Rail
Governor: Electronic
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC QSZ13-G3-B G-Drive Engine

DCEC QSZ13-G3-B G-Drive Engine

Rated Power:603 kW@ 1800RPM
Fuel Pump:High-pressure Common Rail
Governor Regulation≤1%
Aspiration:TC & Air-Air Intercooler
Emission Standard: N/A

DCEC QSZ13-G5-A G-Drive Engine

DCEC QSZ13-G5-A G-Drive Engine

Rated Power: 550 kW@ 1500RPM
Fuel Pump: High Pressure Common Rail
Governor: Electronic
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC QSZ13-G5-B G-Drive Engine

DCEC QSZ13-G5-B G-Drive Engine

Rated Power:585 kW@ 1800RPM
Fuel Pump:High-pressure Common Rail
Governor Regulation≤1%
Aspiration:Turbocharged & Air-Air Intercooler
Emission Standard: N/A

DCEC QSZ13-G6-A G-Drive Engine

DCEC QSZ13-G6-A G-Drive Engine

Rated Power: 439 kW@ 1500RPM
Fuel Pump: High Pressure Common Rail
Governor: Electronic
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC QSZ13-G6-B G-Drive Engine

DCEC QSZ13-G6-B G-Drive Engine

Rated Power:482 kW@ 1800RPM
Fuel Pump:High-pressure Common Rail
Governor Regulation≤1%
Aspiration:Turbocharged & Air-Air Intercooler
Emission Standard: N/A

DCEC QSZ13-G7-A G-Drive Engine

DCEC QSZ13-G7-A G-Drive Engine

Rated Power: 491 kW@ 1500RPM
Fuel Pump: High Pressure Common Rail
Governor: Electronic
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

DCEC QSZ13-G7-B G-Drive Engine

DCEC QSZ13-G7-B G-Drive Engine

Rated Power:548 kW@ 1800RPM
Fuel Pump:High-pressure Common Rail
Governor Regulation≤1%
Aspiration:Turbocharged & Air-Air Intercooler
Emission Standard: N/A

Marine Engine

DCEC Marine Auxiliary Engine Catalogue
Series

Model
