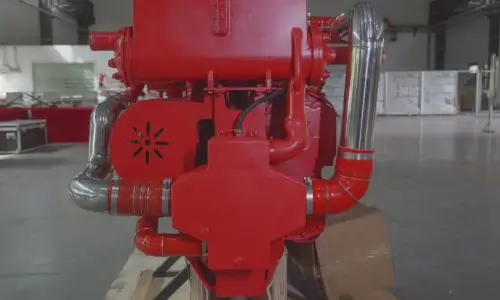

6LTAA8.9-C340 Pump Drive Engine

DCEC 6LTAA8.9-C340 Pump drive engine is a 6-cylinders in line, 8.9 liter four-strokes engine with 114mm bore and 145mm stroke.

Equipped with mechanical pump and RSV governor, engine comes with turbocharger and Air-Air Intercooler.

The prime power at 3000RPM of DCEC 6LTAA8.9-C340 Pump drive engine is 250kW.

As part of EMAC, PumpMac provides abundant premium pump-driven power pack options, WPT PTO, Advance gearbox and pump head, as well as customized water pump set.

We also have a set of NFPA20 standard engine power pack accessories including air intake shut-off valve, DC contactor, engine control panel, jacket water heater etc.

We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.

Advantages of 6LTAA8.9-C340 Pump Engine

  • Leading design and excellent manufacturing technology make the engine more reliable and durable, suitable for high-strength, heavy-duty work under severe working conditions.

  • Advanced four-valve structure, greater power, more thorough air combustion, higher low-speed torque and higher operating efficiency.

  • Forced cooling articulated pistons are used to withstand higher mechanical and thermal loads, comparable to the strength of heavy-duty engines.

  • Enhanced cylinder design, significantly reducing noise and vibration.

  • Powerful driving air-to-air cooling and turbocharging technology, better engine power.

  • The use of central fuel injector, the combustion chamber is symmetrical, the mixing in the cylinder is more uniform, the combustion is more thorough, and the emission is lower.

  • The size of the engine is smaller than that of the same type of engine, the maintenance space is large, and the maintenance is faster.

  • Strong interchangeability, more convenient equipment upgrades.

Technical Specifications

Engine Model:6LTAA8.9-C340
Engine Type:6 Cylinders, in Line
Displacement:8.9 L
Rated Speed:3000 RPM
Rated Power / Speed:250 kW @ 3000 RPM
Peak Torque:N/A
Fuel System:Mechanical pump + RSV governor
Aspiration Method:Turbocharged & Air-Air Intercooler
Emission Standard:N/A
Bore*Storke:114 mm * 145 mm
Packing Size(L*W*H):1240 mm * 780 mm * 1185 mm
Dry Weight:637 kg
Lead Time:15-30 Working Days
Payment Terms:T/T ,L/C

Coming Soon

Engine Model

Basic Engine(L*W*H)

Fuel System


6LTAA8.9-C2401240 * 780 * 1185 mmWeifu PW2000 Pump / RSV Mechanical GovernorTurbocharged & Air-Air Intercooler
6LTAA8.9-C2601240 * 780 * 1185 mmWeifu PW2000 Pump / RSV Mechanical GovernorTurbocharged & Air-Air Intercooler
6LTAA8.9-C3001240 * 780 * 1185 mmWeifu PW2000 Pump / RSV Mechanical GovernorTurbocharged & Air-Air Intercooler
6LTAA8.9-P3101240 * 780 * 1185 mmMechanical Pump/Electronical GovernorTurbocharged & Air-Air Intercooler
6LTAA8.9-C3251240 * 780 * 1185 mmBosch P7100 Pump / RQV-K GovernorTurbocharged & Air-Air Intercooler
6LTAA8.9-P3401240 * 780 * 1185 mmMechanical Pump/Electronical GovernorTurbocharged & Air-Air Intercooler
6LTAA8.9-C3401240 * 780 * 1185 mmMechanical Pump + RSV Mechanical GovernorTurbocharged & Air-Air Intercooler
6LTAA8.9-C3601240 * 780 * 1185 mmBYC P7100 Pump / RQV-K GovernorTurbocharged & Air-Air Intercooler

General Infomation of DCEC  6LTAA8.9-C340 Pump Engine

Engine Model6LTAA8.9-C340Advertised Power250 kW @ 3000 RPM
Peak TorqueN/ACurve & DatasheetN/A
Compression Ratio17.3:1No. Of Cylinders6
AspirationTurbocharged & A-A IntercooledDisplacement8.9 L
Bore*Storke114 mm * 145 mmCPL Code RevisionN/A
Fuel SystemMechanical pump + RSV governorApplicationN/A
Dry Weight637 kgBasic Engine(L*W*H)1240 * 780 * 1185 mm
Emission StandardN/A

Performance Curve-DCEC Cummins 6LTAA8.9-C340 Pump Drive Engine1

System Technical Data of DCEC 6LTAA8.9-C340  Pump Engine

Exhaust SystemMaximum Exhaust Back Pressure10.1 kPa
Exhaust Pipe Size Normally Acceptable100 mm
Maximum Static Support Weight of Turbocharger Outlet Flange14 N.m
Exhaust Manifold Insulation AcceptableNo
Turbocharger Insulation AcceptableNo
Air Intake SystemMaximum Intake Air Restriction with Heavy Duty Air Cleaner— Clean Element4 kPa
Maximum Intake Air Restriction with Heavy Duty Air Cleaner— Dirty Element6 kPa
Minimum Dirt Holding Capacity with Heavy Duty Air Cleaner53 g/litre
Maximum Allowable Intake Manifold Temperature (Ambient Temperature 25)60
Maximum Temperature Rise from Ambient to the Inlet of the Turbocharger17
Recommended Intake Piping Size (Inner Diameter)125 mm
Lubrication SystemNormal Operating Oil Pressure Range69- 426 kPa
Maximum oil pressure at cold start of engine690 kPa
Maximum Lube Oil Flow for Engine Accessories7.6 litre
Maximum Sump Oil Temperature138
Minimum Required Lube System Capacity – Sump plus Filters27.6 litre
By-pass Filtration RequiredYes
Sump Inclination Angle— Front Up45°
Sump Inclination Angle— Front Down45°
Sump Inclination Angle— Side to Side45°
Cooling SystemMinimum Cylinder Block Coolant Temperature During Normal Engine Operation71
Minimum Fill Rate19 litre
Maximum Initial Fill Time5 min
Minimum Pump Inlet Pressure with Open Thermostat and no Pressure CapN/A
Maximum Static Head of Coolant Above Engine Crankshaft Centerline1 m
Minimum Pressure Cap Pressure34 kPa
Maximum Pressure Cap Pressure103 kPa
Minimum Coolant Expansion Space6%
Maximum Deaeration Time25 min
Minimum Drawdown of Total System Capacity11%
Fan-on Engine Coolant Outlet Temperature93.3
Shutter Opening Coolant Outlet Temperature85
Engine Intake Manifold Air Temperature when Shutter Open60
Coolant Capacity – Engine Only11.1 litre
Maximum Engine Coolant Temperature at Engine Outlet100
Standard (Modulating) Thermostat Range82-93
Maximum coolant temperature for engine protection controls104
Maximum Coolant Friction Head External to Engine34 Kpa
Cool Start SystemMin. Battery Capacity-Cold Soak-18°C or Above, Engine Only – Cold Cranking Amp.1500 CCA(12V) 750 CCA(24V)
Min. Battery Capacity-Cold Soak-18°C or Above, Engine Only – Reserve Capacity360 min (12V)180 min (24V)
Maximum Voltage Drop of Starting LoopN/A
Minimum Ambient Temperature without Auxiliary Cold Start-12 (12V)  10  (24V)
Minimum Cranking Speed Required for Unaided Cold Start150 rpm
Maximum Starting Loop Resistance0.00075 ohm(12V) 0.002 ohm(24V)

Scopes of Supply of DCEC 6LTAA8.9-C340 Pump Drive Engine

Air Intake System1. Air Intake ManifoldExhuast System1. Exhuast Manifold
2. Water-Air Intercooler2. Turbocharger
3.Air Filter3. Exhuast Elbow
Starting System1. Starter MotorCharging System1. Charging Alternator
2. Starter Rely2. N/A
Lubricating SystemFuel System
1. Electronic Fuel Transfer Pump
1. Oil Pump2. Common Rail Fuel System
2. Oil Filter3. Fuel Filter
4.Ecu & Wiring Harness
Engine Auiliary Accessories1.N/APower Output System1. Flywheel
2. N/A2. Standard Flywheel Housing
Control System1. Ecu Socket And SensorsEngine Mounting System1. Engine Mouting Bracket
Cooling System1. Water Pump
2. Engine Fan
3. Standard Radiator

Optional Accessories of DCEC 6LTAA8.9-C340 Pump Drive Engine

Air Intake System1. Air Intake Pre-heaterExhuast System1. Muffler & Bellows
2. Air Intake Pre-Filter2. Flame Trap
3. Air Filter Alarm System3. Spark Arrestor Type Muffler & Bellows
4. Air Intake Shut-off Valve4. DPF System
Fuel System1. Coarse FilterEngine Auiliary Accessories1. Hydraulic Oil Pump
2. Fuel Pre-Heater2. Air Compressor
Starting System1. Manual Magnetic DC ContactorCooling System1. Silent Type Radiator
2. Dual ears flywheel housing2. Plateau Radiator
3. Spring Starter Motor3. Salt-Spray Resistant Radiator
4. Air Starter Motor4. Coolant Pre-Heater
5. Hydraulic Starter Motor5. Jacket Water Heater
6. Extra Electric Starter Motor6. N/A
7. Remote starting function7.N/A
8. Lock protection function of starter motor8. N/A
9. Manual Magnetic DC Contactor9. N/A
Power Output System1. ClutchControl System1. Engine Monitor
2. Add Gearbox for Higher Output Speed2. NFPA20 Standard Engine Control Box
3. N/A3. NFPA20 Fire Fighting Pump Set Control Panel
Lubricating System1. Oil Pre-HeaterEngine Mounting System1. Shock Absorber Pad

As part of EMAC, PumpMac focusing on water pump set related business, from pump drive engine, to WPT PTO, from complete engine power pack to complete water pump set, from NFPA20 standard fire fighting pump accessories to fire pump drive package, from explosion proof accessories to complete explosion-proof water pump set, PumpMac provides professional one-stop solution for everything customer needed for water pump set industry.
For more information of our pump drive power pack and complete water pump set products, you are welcome to visit PumpMac homepage:

Modifiable Components of DCEC 6LTAA8.9-C340 Pump Drive Engine

Air Intake System1. Installation Position Of Air FilterCharging System1. 12V Charging Alternator For 12V Electric System
2. Upgrade To Heavy-Duty Type Air Fitler2. Explosion-Proof Charging Alternator
 3.N/A3. Upgrading To Specified Brand And Speicifications Of Charging Alternator
Exhuast System1. Can Modify Installation Position And Direction Of TurbochargerLubricating System1. Oil Pan Position
2. Water-Cooled Exhuast Manifold2. Number Of Dipstick
3. Water-Cooled Turbocharger3. Position Of Dipstick Can Choose From 6 Positions
4. N/A4. Can Modify Oil Filter To Be Remote Installation
Fuel System1. Upgrade To Fuel Fitler That Integrated With Fuel Transfer Pump And Fuel Pre-HearterStarting System1. 12V starter motor for 12v electric system
2. N/A2. Upgrading To Specified Brand And Speicifications Of Starter Motor
Cooling System1. Can Modify Engine Fan Into Blower Fan Or Suction FanPower Output System1. Can Modify Size Of Flywheel Housing And Flywheel.
2. Can Modify Central Position Of Engine Cooling Fan2. Dual-Ear Flywheel Housing (For Twin-Starter System)
3. Can Choose Type Of Engine Fan From Mechanical Type Or Electric Type3. Some Of Models Can Modify Flywheel Housing Into Pto Integrated Type
4. Can Modify Cooling System Into Heat Exchanger And Intercooler4. Engine Have Connecting Port Of Ptos, That Able To Provide Power Output.
Engine Shut-Down System1. 12V Solenoid For 12V Electric SystemEngine Mounting System1. Can Modify Engine Mouting Bracket.
2. Explosion-Proof Solenoid
Engine Auiliary Accessories1.N/AControl System1. Ecu Can Setting To Different Control Mode, Including Can  Communication, Analogu Control, Isc1,Isc2,Isc3 Speed Conrol Mode Etc.

Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
