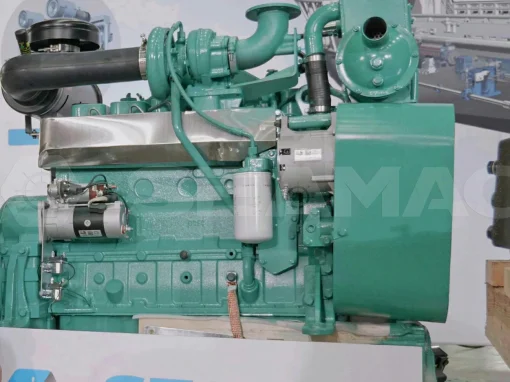

DCEC 6BTA5.9-M150 Marine Engine
DCEC 6BTA5.9-M150 marine main engine is a 6-cylinders in line, 5.9 liters four-strokes engine with 102mm bore and 120mm stroke.
Equipped with Weifu AD fuel pump and RSV governor, engine comes with turbocharger and Water-Air Intercooler.
The prime power at 2200RPM of DCEC 6BTA5.9-M150 marine main engine is 150 HP.
Based on standard DCEC marine main engines, SeaMac provides both heat exchanger cooling and keel cooling marine main engines, we also provide complete propulsion system that including marine engine, gearbox, shaft, propeller as complete power system.
SeaMac provides full life cycle services for all our customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
All of DCEC marine main engine are comes with dry type exhaust system, which means dry type exhaust manifold and dry type turbocharger, SeaMac provides upgrading services for water-cooled exhaust system, which modify dry type exhaust system into water-cooled exhaust system, which are quite important and often requested by passenger boat projects.
Advantages of 6BTA5.9-M150 Marine Engine
Leading design and excellent manufacturing technology make the engine more reliable and durable, suitable for high-strength, heavy-duty work under severe working conditions.
The cylinder block and cylinder head adopt integrated design to prevent the occurrence of engine water and oil leakage. The parts are about 40% less than other similar engines, and the failure rate is greatly reduced.
The cylinder bore adopts a platform mesh honing design, the perfect geometric structure effectively prevents oil leakage, and the use of advanced technologies such as new piston ring components and gasket crimping and molding reduces oil loss.
Synchronized with the advanced design and sophisticated manufacturing of CMS in the United States, it is suitable for harsh working conditions and has strong high-intensity and heavy-duty operating capabilities.
Technical Specifications
| Engine Model: | 6BTA5.9-M150 |
| Engine Type: | 6 Cylinders, in Line |
| Displacement: | 5.9 L |
| Rated Speed: | 2200 RPM |
| Rated Power: | 150 Hp @ 2200 RPM |
| Peak Torque: | 616 N.m @ 1400 RPM |
| Classification: | N/A |
| Aspiration Method: | Turbocharged & Water-Air Intercooler |
| Emission Standard: | N/A |
| Bore*Storke: | 102 mm * 120 mm |
| Packing Size(L*W*H): | 1182 mm * 761 mm * 1127 mm |
| Wet Weight: | 443 kg |
| Lead Time: | 15-30 Working Days |
| Payment Terms: | T/T ,L/C |
Engine Model | Peak Torque | Rated Power | Fuel System | Aspiration |
| 6BT5.9-M120 | 430 N.m @ 1600 RPM | 120 Hp @ 2200 RPM | Weifu AD Pump / RSV Mechanical Governor | Turbocharged |
| 6BTA5.9-M150 | 616 N.m @ 1400 RPM | 150 Hp @ 2200 RPM | Weifu AD Pump / RSV Mechanical Governor | Turbocharged & Water-Air Intercooler |
| ——END—— | ||||
| General Infomation of DCEC 6BTA5.9 – M150 Marine Main Engine | |||
| Engine Model | 6BTA5.9 – M150 | Displacement | 5.9 L |
| Bore * Stroke | 102 mm * 120 mm | Cylinders | 6 Cylinders, in Line |
| Aspiration | Turbocharged & Water – Air Intercooler | Speed Control | 8 % |
| Fuel System | Weifu AD Pump / RSV Mechanical Governor | Rated Power | 150 Hp @ 2200 RPM |
| Peak Torque | 616 N.m @ 1400 RPM | CPL Code | 834 – 02 |
| Dry Weight | 443 kg | ||
| Installation Data of DCEC 6BTA5.9 – M150 Marine Main Engine | |||
| Moment of Inertia of Rotating Components | 0.25 kg·m² | ||
| Center of Gravity from Front Face of Block | 391 mm | ||
| Center of Gravity Above Crankshaft Centerline | 140 mm | ||
| Maximum (Static) Bending Moment at Front Support Mounting Surface | 435 N.m | ||
| Maximum (Static) Bending Moment at Side Pad Mounting Surface | TBD | ||
| Maximum (Static) Bending Moment at Rear Face of Block | 1356 N.m | ||
| Moment of Inertia of Complete Engine – Roll Axis | 16.5 kg.m² | ||
| Moment of Inertia of Complete Engine – Pitch Axis | 41.1 kg.m² | ||
| Maximum (Static) Bending Moment at Rear Face of Block | 35.4 kg.m² | ||
| Fuel System of DCEC 6BTA5.9 – M150 Marine Main Engine | |||
| Maximum Fuel Flow on the Supply Side of the Fuel Pump | 190 litre / hr | ||
| Maximum Fuel intake Restriction – with Clean Fuel Filter | 102 mmHg | ||
| Maximum Fuel intake Restriction – with Dirty Fuel Filter | 203 mmHg | ||
| Maximum Fuel Drain Restriction – with Check Valves | N / A | ||
| Maximum Fuel Drain Restriction – less Check Valves | 510 mmHg | ||
| Maximum Fuel Inlet Temperature | 71 ℃ | ||
| Minimum Fuel Tank Air Venting Capability Required at 6 in. H2O Back Pressure | 340 litre / hr | ||
| ——END—— | |||
System Technical Data of DCEC 6BTA5.9-M150 Marine Main Engine | ||
| Exhaust System | Maximum Back Pressure | 76 mmHg |
| Exhaust Pipe Size Normally Acceptable | 75 mm | |
| Maximum Static Supported Weight at the Turbocharger Outlet Flange | 13.5 kg | |
| Exhaust Manifold Insulation Acceptable | N / A | |
| Turbocharger Insulation Acceptable | N / A | |
| Air Intake System | Maximum Intake Air Restriction with Heavy Duty Air Cleaner – Clean Element | 381 mmH2O |
| Maximum Intake Air Restriction with Heavy Duty Air Cleaner – Dirty Element | 635 mmH2O | |
| Minimum Dirt Holding Capacity with Heavy Duty Air Cleaner | 53 g / litre / sec | |
| Maximum Temperature Rise from Ambient to the Inlet of the Turbocharger | 17 ℃ | |
| Maximum Pressure Drop from the Turbocharger Outlet to the Intake Manifold | TBD | |
| LubricationSystem | Normal Operating Oil Pressure Range | 200 – 450 kPa |
| Maximum Lube Oil Flow for Engine Accessories | 4 litre / min | |
| Maximum Sump Oil Temperature | 121 ℃ | |
| Minimum Engine Protection Oil Pressure – At Rated Speed and Load | 276 kPa | |
| Minimum Engine Protection Oil Pressure – At Torque Peak Speed and Load | 207 kPa | |
| Minimum Engine Oil Pressure for Engine Protection Devices – At Low Idle | 69 kPa | |
| Minimum Required Lube System Capacity – Sump Plus Filters | 16.3 litre | |
| By-Pass Filtration Required | N / A | |
| Angularity of Standard Oil Pan – Front Down | 45 ° | |
| Angularity of Standard Oil Pan – Front Up | 45 ° | |
| Angularity of Standard Oil Pan – Side to Side | 45 ° | |
| Cool Start System | Minimum Battery Capacity(Below – 18℃) | 12 V ; 24 V |
| Minimum Battery Capacity(Below – 18℃) – Engine Cold Starting Current | 950 CCA ; 475 CCA | |
| Minimum Battery Capacity(Below – 18℃) – Engine Reserve Capacity | 260 * 130 min | |
| Minimum Environmental Temperature When Cold Start Unassisted | – 12 ℃ | |
| Minimum Engine Speed When Cold Start Unassisted | 125 rpm | |
| Cooling System | Coolant Capacity – Engine Only | 10.4 litre |
| Maximum Engine Cooling Circuit External Resistance | 34 kPa | |
| Maximum Sump Oil Temperature | TBD | |
| Minimum Engine Protection Oil Pressure – At Rated Speed and Load | TBD | |
| Standard (Modulating) Thermostat Range | 82 – 93 ℃ | |
| Maximum Block Coolant Pressure with Closed Thermostat and No Pressure Cap | 276 kPa | |
| Minimum Pressure Cap | 50 kPa | |
| Maximum Engine Coolant Temperature at Engine Outlet | 100 ℃ | |
| Maximum Engine Coolant Temperature for Engine Protection Devices | 101.6 ℃ | |
| Minimum Engine Coolant Temperature | 71 ℃ | |
| Minimum Fill Rate | 19 litre / min | |
| Maximum Initial Fill Time | 5 min | |
| Minimum Coolant Expansion Space of System Capacity | 6 % | |
| Maximum Deaeration Time | 25 min. | |
| Minimum Drawdown of Total System Capacity | 11 % | |
| Fan-On Engine Coolant Outlet Temperature | 93 ℃ | |
| Fan-On Engine Coolant Outlet Temperature | 85 ℃ | |
| Shutter Opening Intake Manifold Air Temperature | N / A | |
| ——END—— | ||
Scopes of Supply of DCEC 6BTA5.9-M150 Marine Main Engine | ||||
| Air Intake System | 1. Air Intake Manifold | Exhuast System | 1. Exhuast Manifold | |
| 2. Air Filter | 2. Turbocharger | |||
| 3. N / A | 3. Exhuast Elbow | |||
| Starting System | 1. Starter Motor | Charging System | 1. Charging Alternator | |
| 2. Starter Rely | 2. N / A | |||
| Lubricating System | 1. Oil Pump | Fuel System | 1. Fuel Transfer Pump | |
| 2. Oil Filter | 2. High-Pressure Fuel Pump | |||
| 3. N / A | 3. Machanical Governor | |||
| 4. N / A | 4. Fuel Filter | |||
| Engine Shut-Down System | 1. Engine Fuel Shut-Off Solenoid | Power Output System | 1. Flywheel | |
| 2. N / A | 2. Standard Flywheel Housing | |||
| ——END—— | ||||
Optional Accessories of DCEC DCEC 6BTA5.9-M150 Marine Main Engine | ||||
| Air Intake System | 1. Air Intake Pre-Heater | Exhuast System | 1. Muffler & Bellows | |
| 2. Air Intake Pre-Filter | 2. Flame Trap | |||
| 3. Air Filter Alarm System | 3. Spark Arrestor Type Muffler & Bellows | |||
| 4. N / A | 4. DPF System | |||
| Fuel System | 1. Coarse Filter | Engine Auiliary Accessories | 1. Hydraulic Oil Pump | |
| 2. Fuel Pre-Heater | 2. Hydraulic Cluch | |||
| Starting System | 1. Manual Magnetic DC Contactor | Cooling System | 1. Engine Monitor | |
| 2. Dual Ears Flywheel Housing | 2. Engine Protection System With Alarm System | |||
| 3. Spring Starter Motor | 3. Machanical Engine Control Lever Syste | |||
| 4. Air Starter Motor | 4. Electric Engine Control Lever System | |||
| 5. Hydraulic Starter Motor | 5. N / A | |||
| 6. Manual Magnetic DC Contactor | 6. N / A | |||
| Power Output System | 1. Gear Reduction Gearbox | Cooling System | 1. Coolant Pre-Heater | |
| 2. Reverse Gear Box | 2. Jacket Water Heater | |||
| Lubricating System | 1. Oil Pre-Heater | Engine Mounting System | 1. Shock Absorber Pad | |
| ——END—— | ||||
Committed to providing reliable premium propulsion system and power system for all kinds of ships around the world, SeaMac is a sub-brand of EMAC group that focused on maritime application.
SeaMac’s ranges of products mainly inclduing marine main engine, marine gearbox, marine propellers, marine control lever system, marine auxiliary engine, marine generator set and emergency generator set.
For more information of our marine proplusion and power system products, you are welcome to visit SeaMac homepage: www.seamac.com
Modifiable components of DCEC 6CTA8.3-M188 Marine Main Engine | ||||
| Air Intake System | 1. Installation Position of Air Filter | Starting System | 1. 12V Starter Motor for 12V Electric System | |
| 2. Upgrade to Heavy-Duty Type Air Fitler | 2. Upgrading to Specified Brand and Speicifications of Starter Motor | |||
| Exhuast System | 1. Can Modify Installation Position and Direction of Turbocharger | Charging System | 1. 12V Charging Alternator for 12V Electric System | |
| 2. Water-Cooled Exhuast Manifold | 2. Explosion-Proof Charging Alternator | |||
| 3. Water-Cooled Turbocharger | 3. Upgrading to Specified Brand and Speicifications of Charging Alternator | |||
| Fuel System | 1. Upgrade to Fuel Fitler That Integrated with Fuel Transfer Pump and Fuel Pre-Hearter | Engine Auiliary Accessories | 1. Additional Auxiliary Systems Can Be Added for Special Applications | |
| Engine Shut-Down System | 1. 12V Solenoid for 12V Electric System | Cooling System | 1. Can Modify Engine Into Keel Cooling System | |
| 2. Explosion-Proof Solenoid | 2. N / A | |||
| Lubricating System | 1. Oil Pan Position | Power Output System | 1. Can Modify Size of Flywheel Housing and Flywheel | |
| 2. Number of Dipstick | 2. Dual-Ear Flywheel Housing (For Twin-Starter System) | |||
| 3. Position of Dipstick Can Choose from 6 Positions | 3. Some of Models Can Modify Flywheel Housing Into PTO Integrated Type | |||
| 4. Can Modify Oil Filter to Be Remote Installation | 4. Engine Have Connecting Port of PTOs, That Able to Provide Power Output | |||
| Engine Mounting System | 1. Can Modify Engine Mouting Bracket | |||
| ——END—— | ||||
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
