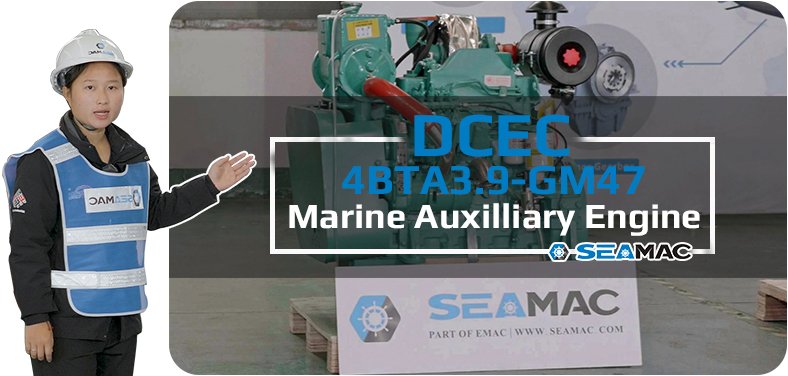

4BTA3.9-GM47 Auxiliary Engine

DCEC 4BTA3.9-GM47 marine auxiliary engine is a 4-cylinders in line, 3.9 liters four-strokes engine with 102mm bore and 120 mm stroke.

Equipped with BYC A fuel pump and GAC electronic governor, engine comes with turbocharger and Water-Air Intercooler.

The prime power for generator set 1500RPM of DCEC 4BTA3.9-GM47 marine auxiliary engine is 47kW.

DCEC provides both heat exchanger cooling and radiator cooling marine auxiliary engines, which mainly using for marine main generator and marine emergency generator.

For the emergency generator set applications, we provide additional options for customers such as dual starter motor system (we provide both electric and spring starter motor for customers), which are required by most of international classifications.

All of DCEC marine auxiliary engine are comes with dry type exhaust system, which means dry type exhaust manifold and dry type turbocharger, SeaMac provides upgrading services for water-cooled exhaust system, which modify dry type exhaust system into water-cooled exhaust system, which are quite important and often requested by passenger boat projects.

Advantages of 4BTA3.9-GM47 Auxiliary Engine

  • Advanced design and sophisticated manufacturing, adapt to various harsh working conditions, high strength, strong ability to work under heavy loads.

  • The cylinder block and cylinder head adopt integrated design to prevent the occurrence of engine water and oil leakage. The parts are about 40% less than other similar engines, and the failure rate is greatly reduced.

  • The cylinder bore adopts a platform mesh honing design, the perfect geometric structure effectively prevents oil leakage, and the use of advanced technologies such as new piston ring components and gasket crimping and molding reduces oil loss.

  • Adopt Holset supercharger with integral wastegate valve, low speed response and strong power.

  • The three-stage fuel filter ensures a balanced level of particle dispersion, protects the main components of the fuel system, and maximizes the life of the engine.

Technical Specifications

Engine Model:4BTA3.9-GM47
Engine Type:4 Cylinders
Displacement:3.9 L
Rated Speed:1500 RPM
Rated Power:63 BHP @ 1500 RPM
Peak Torque:214 g / kW.h @ 1500 RPM
Classification:N/A
Aspiration Method:Turbocharged & Water-Air Intercooler
Emission Standard:N / A
Bore*Storke:102 mm * 120 mm
Packing Size(L*W*H):N / A
Wet Weight:350 kg
Lead Time:15-30 Working Days
Payment Terms:T/T ,L/C

Engine Model

Fuel Consumption

Rated Power

Fuel System

Aspiration

4BTA3.9-GM47214 g / kW.h @ 1500 RPM63 BHP @ 1500 RPMBYC A Pump / GAC 24 V Electronic GovernorTurbocharged & Water-Air Intercooler
4BTA3.9-GM65219 g / kW.h @ 1800 RPM87 BHP @ 1800 RPMBYC A Pump / GAC Electronic GovernorTurbocharged & Water-Air Intercooler
——END——

General Infomation of DCEC 4BTA3.9-GM47 Marine Auxiliary Engine

Engine Model4BTA3.9 – GM47Displacement3.9 L
Bore * Stroke102 mm * 120 mmAspirationTurbocharged & Water-Air Intercooler
Cylinders4 CylindersFuel SystemBYC A / GAC 24 V Electronic Governor
Governor Regulation 5 %Rated Power63 BHP (47 kW) @ 1500 RPM
Standby Power70 BHP (52 kW) @ 1500 RPMDry Weight350 kg

Installation Data of DCEC 4BTA3.9-GM47 Marine Drive Engine

Distance Between Center of Gravity and Rear End Face of Cylinder Block373 mm
Distance from Center of Gravity to Center Line of Crankshaft (Above Crankshaft)163 mm
Low Idle Speed950 – 1050 RPM
Compression Ratio17.3 : 1
Piston Speed6 m / sec
Firing Order1 – 3 – 4 – 2
Maximum (Static) Bending Moment at Rear Face of Block1356 – N.m

Fuel System of DCEC 4BTA3.9-GM47 Marine Drive Engine

Maximum Fuel Flow of Oil PumpN / A
Maximum Oil Intake Resistance-Clean Fuel Filter63.5 mmHg
Maximum Oil Intake Resistance-Dirty Fuel Filter100 mmHg
Maximum Fuel Inlet Temperature60
Maximum Allowable Return Line Pressure517 mmHg
——END——

Performance Curve-DCEC 4BTA3.9-GM47 Auxiliary Engine

System Technical Data of DCEC 4BTA3.9-GM47 Marine Auxiliary Engine

Exhaust SystemMaximum Back Pressure76 mmHg
Exhaust Gas FlowN / A
Exhaust Gas Temperature530
Exhaust Heat Loss WorkN / A
Recommended Exhaust Pipe Diameter75 mm
Maximum Static Support Weight of Turbocharger Outlet FlangeN / A
Air Intake SystemMaximum Intake Air Restriction with Heavy Duty Air Cleaner— Clean Element380 mmH2O
Maximum Intake Air Restriction with Heavy Duty Air Cleaner— Dirty Element635 mmH2O
Minimum Dirt Holding Capacity with Heavy Duty Air CleanerN / A
Maximum Temperature Rise from Ambient to the Inlet of the Turbocharger17
Maximum Pressure Drop from Turbocharger Outlet to Intake Manifold75 mmHg
Intake Air FlowN / A
Heat Rejection to AmbientN / A
Minimum Ambient Temperature for Cold Starting-12 ℃
LubricationSystemNormal Operating Oil Pressure Range207 – 448 kPa
Maximum Sump Oil Temperature120 ℃
Oil Capacity when Using Bias Sump: Maximum -Minimum9.5 – 8.5 litre
Minimum Oil Pressure— At Low Idle69 kPa
Minimum Required Lube System Capacity – Sump Plus Filters10.9 litre
Sump Inclination Angle— Front Up20 °
Sump Inclination Angle— Front Down45 °
Sump Inclination Angle— Side to Side45 °
Cool Start SystemMinimum Recommended Battery Capacity – 18 ℃ Completely Cold, Only the Engine Cold Starting Current1375 CCA * 625 CCA
Maximum Voltage Drop of Starting LoopN / A
Minimum Ambient Temperature without Auxiliary Cold Start-12 ℃
Minimum Starting Speed Required without Auxiliary Cold StartingN / A
Maximum Allowable Resistance of Starting Loop0.0012 hms * 0.004 hms
Cooling SystemCoolant Capacity – Engine Only.7.9 litre
Maximum External Engine Cooling Cycle Resistance28 kPa
Maximum Static Height of Coolant Above Crankshaft Centerline of Engine14 m
Thermostat Standard Regulating Temperature (Range)82 – 95 ℃
Minimum Pressure Cap Pressure39 kPa
Maximum Engine Coolant Temperature at Standby / Rated Power104 / 100
——END——

Scopes of Supply of DCEC 4BTA3.9-GM47 Marine Auxiliary Engine

Air Intake System1. Air Intake ManifoldExhuast System1. Exhuast Manifold
2. Air Filter2. Turbocharger
3. N / A3. Exhuast Elbow
Starting System1. Starter MotorCharging System1. Charging Alternator
2. Starter Rely2. N / A
Lubricating System1. Oil PumpFuel System1. Fuel Transfer Pump
2. Oil Filter2. High-Pressure Fuel Pump
3. N / A3. Machanical Governor
4. N / A4. Fuel Filter
Engine Shut-Down System1. Engine Fuel Shut-Off SolenoidPower Output System1. Flywheel
2. N / A2. Standard Flywheel Housing
——END——

Optional Accessories of DCEC 4BTA3.9-GM47 Marine Auxiliary Engine

Air Intake System1. Air Intake Pre-HeaterExhuast System1. Muffler & Bellows
2. Air Intake Pre-Filter2. Flame Trap
3. Air Filter Alarm System3. Spark Arrestor Type Muffler & Bellows
4. N / A4. DPF System
Fuel System1. Coarse FilterEngine Auiliary Accessories1. Hydraulic Oil Pump
2. Fuel Pre-Heater2. Hydraulic Cluch
Starting System1. Manual Magnetic DC ContactorCooling System1. Engine Monitor
2. Dual Ears Flywheel Housing2. Engine Protection System With Alarm System
3. Spring Starter Motor3. Machanical Engine Control Lever Syste
4. Air Starter Motor4. Electric Engine Control Lever System
5. Hydraulic Starter Motor5. N / A
6. Manual Magnetic DC Contactor6. N / A

Power Output System1. Gear Reduction GearboxCooling System1. Coolant Pre-Heater
2. Reverse Gear Box2. Jacket Water Heater

Lubricating System1. Oil Pre-HeaterEngine Mounting System1. Shock Absorber Pad
——END——



Committed to providing reliable premium propulsion system and power system for all kinds of ships around the world, SeaMac is a sub-brand of EMAC group that focused on maritime application.
SeaMac’s ranges of products mainly inclduing marine main engine, marine gearbox, marine propellers, marine control lever system, marine auxiliary engine, marine generator set and emergency generator set.
For more information of our marine proplusion and power system products, you are welcome to visit SeaMac homepage: www.seamac.com

Modifiable components of DCEC 4BTA3.9-GM47 Marine Auxiliary  Engine

Air Intake System1. Installation Position of Air FilterStarting System1. 12V Starter Motor for 12V Electric System
2. Upgrade to Heavy-Duty Type Air Fitler2. Upgrading to Specified Brand and Speicifications of Starter Motor
Exhuast System1. Can Modify Installation Position and Direction of TurbochargerCharging System1. 12V Charging Alternator for 12V Electric System
2. Water-Cooled Exhuast Manifold2. Explosion-Proof Charging Alternator
3. Water-Cooled Turbocharger3. Upgrading to Specified Brand and Speicifications of Charging Alternator
Fuel System1. Upgrade to Fuel Fitler That Integrated with Fuel Transfer Pump and Fuel Pre-HearterEngine Auiliary Accessories1. Additional Auxiliary Systems Can Be Added for Special Applications
Engine Shut-Down System1. 12V Solenoid for 12V Electric SystemCooling System1. Can Modify Engine Into Keel Cooling System
2. Explosion-Proof Solenoid2. N / A
Lubricating System1. Oil Pan PositionPower Output System1. Can Modify Size of Flywheel Housing and Flywheel
2. Number of Dipstick2. Dual-Ear Flywheel Housing (For Twin-Starter System)
3. Position of Dipstick Can Choose from 6 Positions3. Some of Models Can Modify Flywheel Housing Into PTO Integrated Type
4. Can Modify Oil Filter to Be Remote Installation4. Engine Have Connecting Port of PTOs, That Able to Provide Power Output
Engine Mounting System1. Can Modify Engine Mouting Bracket
——END——

Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
